Product Description

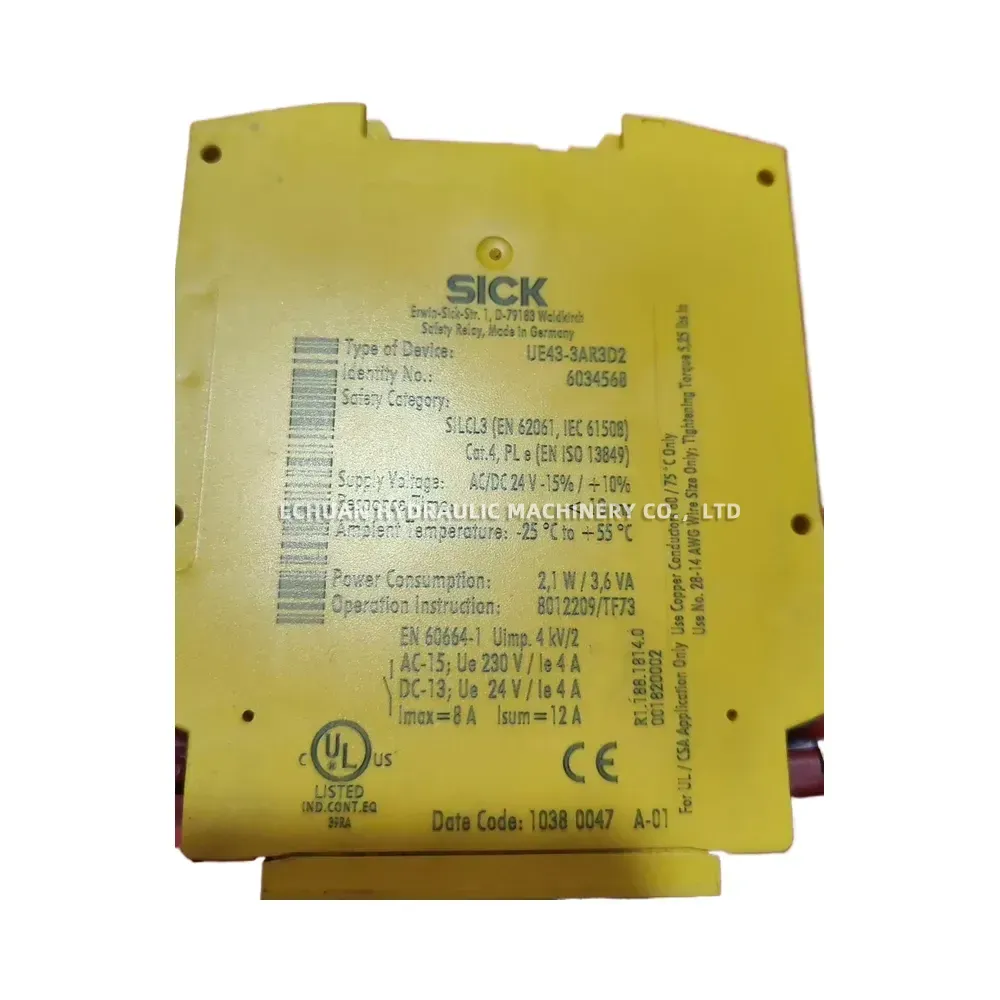

SICK UE43-3AR3D2 Safety Relay
The SICK UE43-3AR3D2 (Identity No. 6034568) is a premium safety relay designed for reliable machine safeguarding in industrial automation environments. Manufactured in Germany, this safety evaluation unit provides dual-channel control logic, a reset circuit, and monitored contacts (K1, K2) for optimal protection. It meets the highest international safety standards, achieving SILCL3 (EN 62061, IEC 61508), Category 4, and PL e (EN ISO 13849) classifications. Operating on an AC/DC 24 V supply voltage, the relay features a rapid response time of less than 10 ms and functions efficiently in ambient temperatures ranging from -25 °C to +55 °C. Complete with cULus and CE approvals, the UE43-3AR3D2 ensures maximum safety and compliance for your control systems.
Technical Specifications:
- Brand: SICK
- Model / Identity No.: UE43-3AR3D2 / 6034568
- Safety Category: SILCL3 (EN 62061, IEC 61508), Cat.4, PL e (EN ISO 13849)
- Supply Voltage: AC/DC 24 V (-15% / +10%)
- Response Time: < 10 ms
- Ambient Temperature: -25 °C to +55 °C
- Power Consumption: 2.1 W / 3.6 VA
- Contact Ratings: AC-15 (Ue 230 V / Ie 4 A), DC-13 (Ue 24 V / Ie 4 A)
- Current Limits: Imax = 8 A, Isum = 12 A
- Rated Impulse Voltage (Uimp): 4 kV/2 (EN 60664-1)

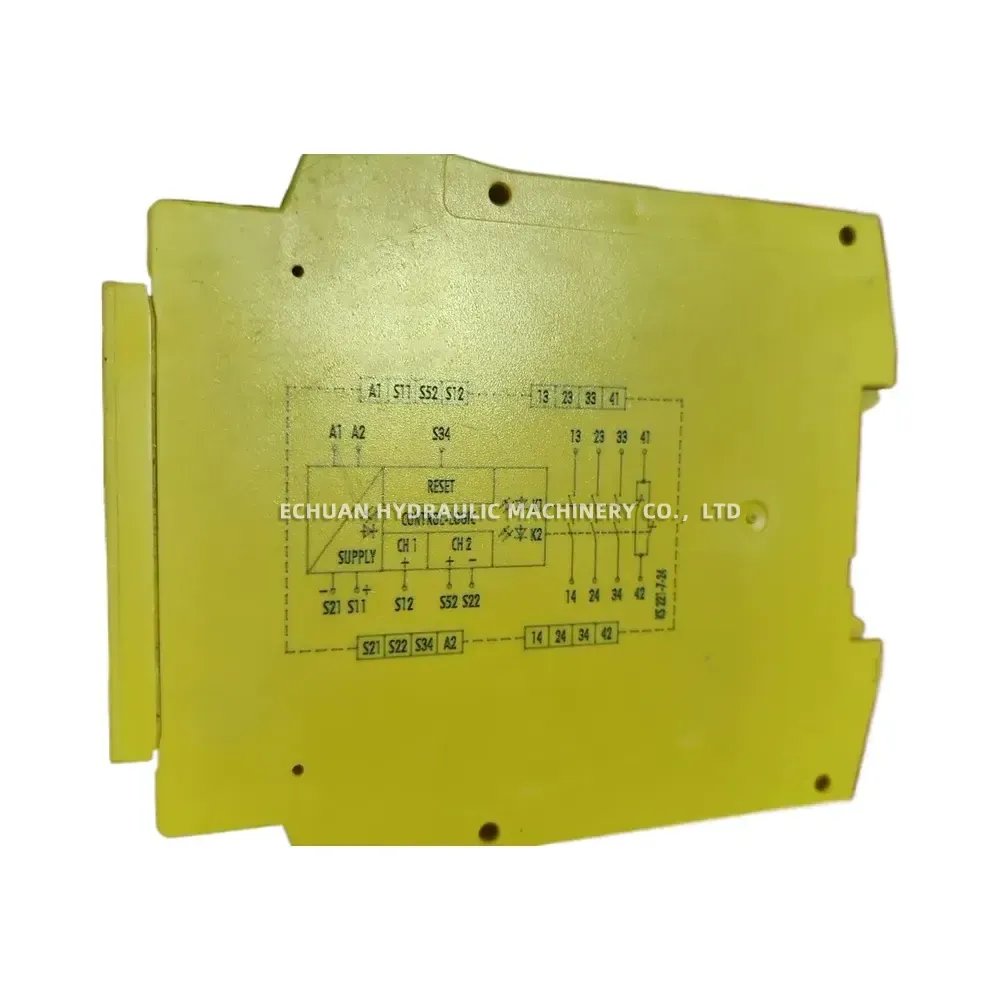

- Terminals: A1, A2, S11, S12, S21, S22, S34, S52, 13/14, 23/24, 33/34, 41/42
- Approvals: cULus LISTED IND. CONT. EQ, CE
- Country of Origin: Made in Germany
SICK UE43-3AR3D2 Safety Relay
Shop the SICK UE43-3AR3D2 (6034568) Safety Relay. This 24V AC/DC dual-channel safety relay features a fast <10ms response time and meets SILCL3, Cat.4, and PL e safety standards for reliable, high-performance industrial machine safeguarding.
