Product Description

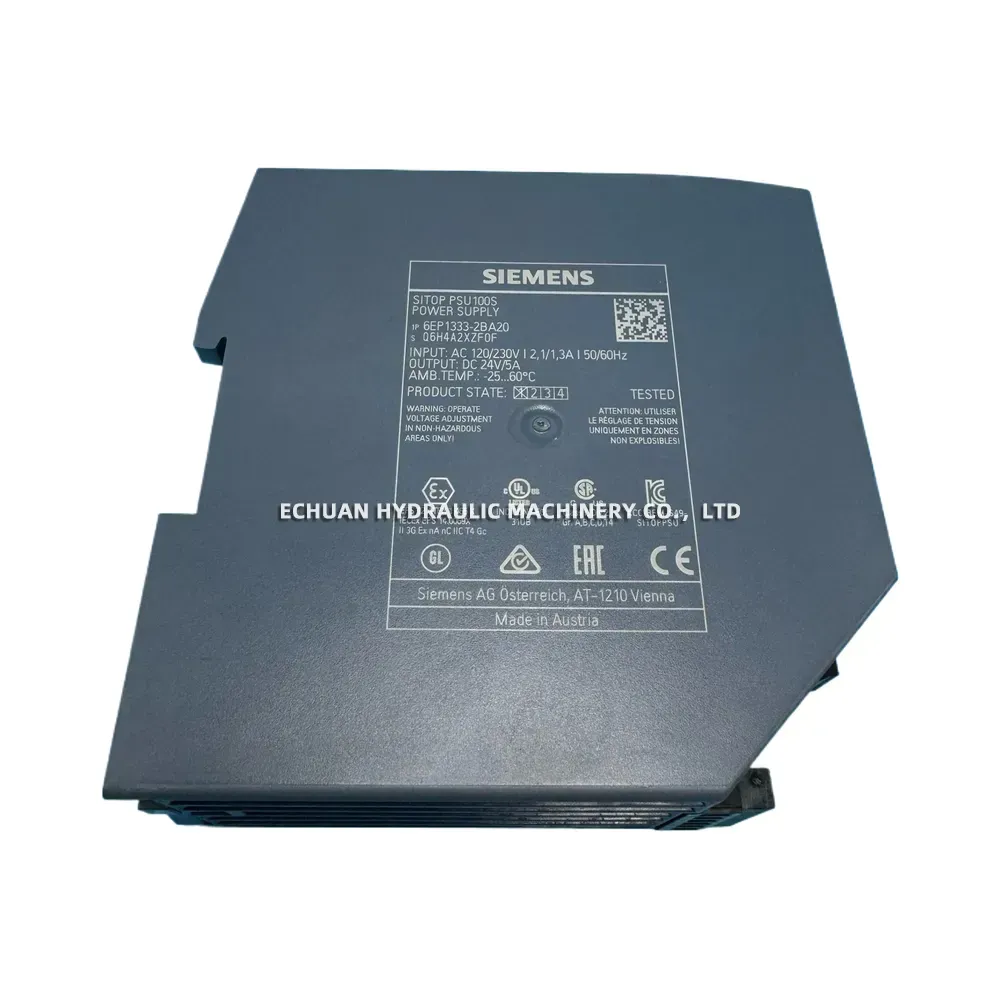

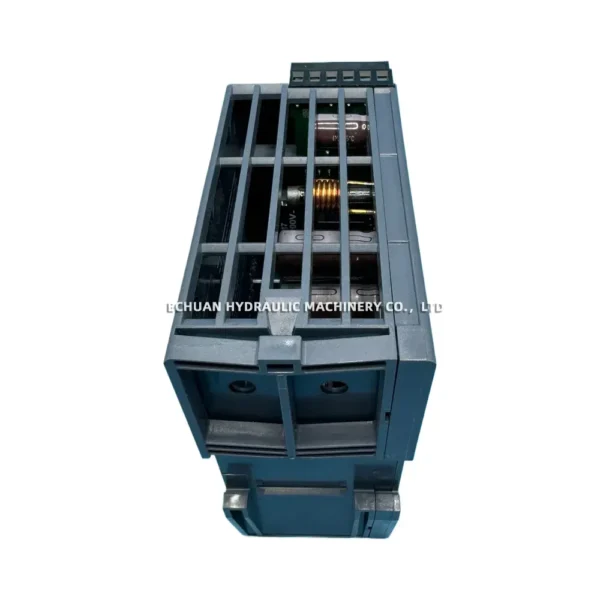

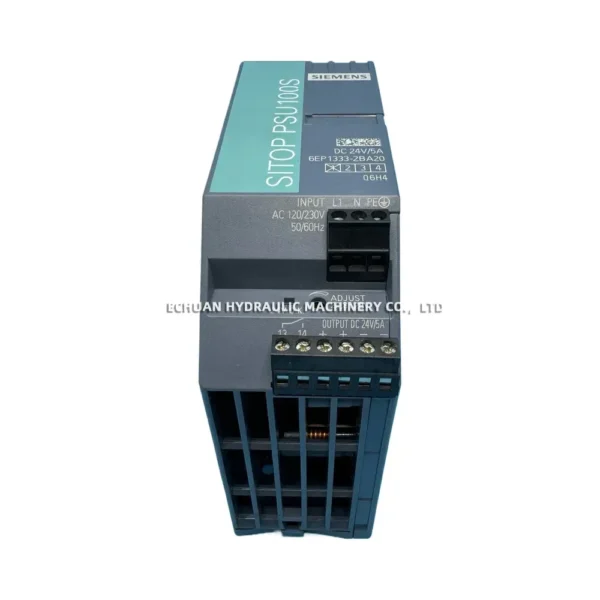

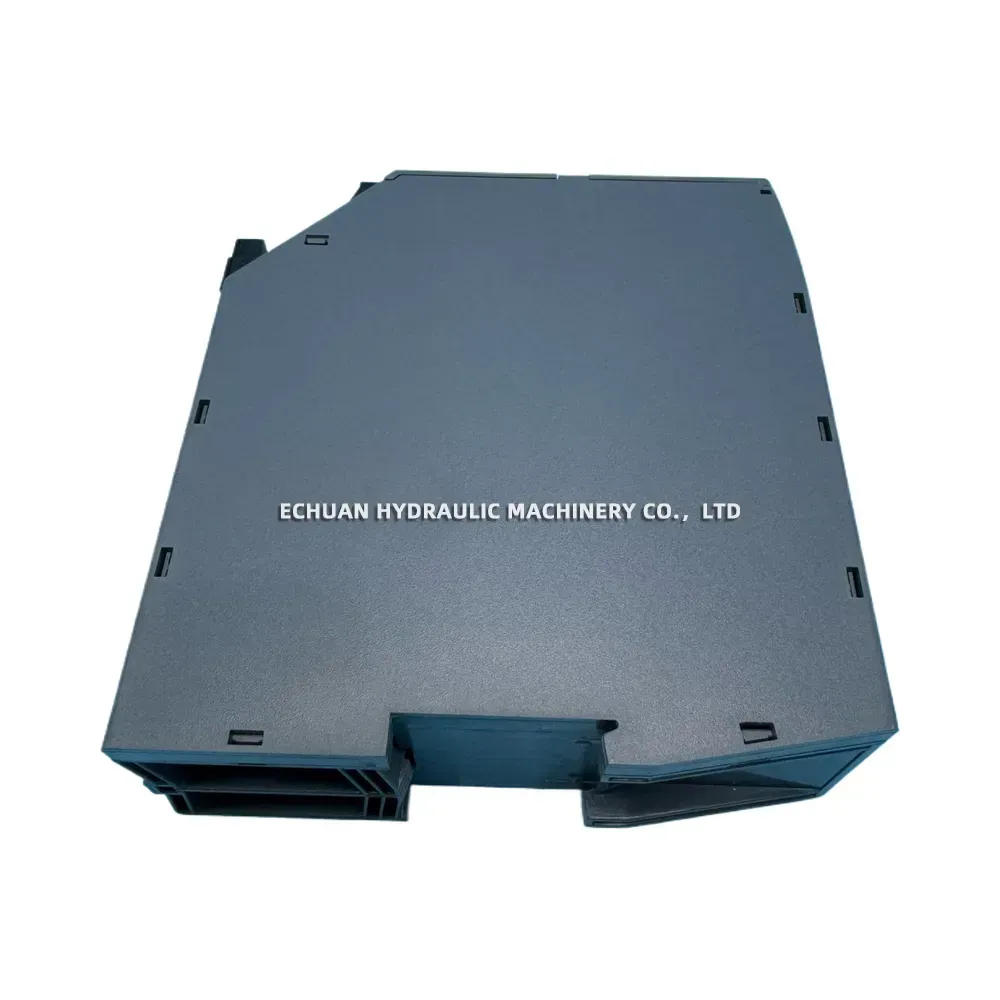

SIEMENS 6EP1333-2BA20
The SIEMENS 6EP1333-2BA20 is a high-performance power supply from the SITOP smart PSU100S series. This compact, single-phase unit is designed for reliability and efficiency in a wide range of industrial applications. Its wide-range input allows for connection to various AC networks worldwide without manual switching, providing a stable and adjustable 24 V DC output. With its slim design, it is ideal for installation in control cabinets where space is at a premium. The high efficiency of the unit minimizes energy consumption and heat generation, while integrated overload and short-circuit protection ensures safe and dependable operation for your critical components.
Technical Specifications:
- Product Type: SITOP PSU100S Stabilized Power Supply
- Input Voltage: 120 – 230 V AC (85-264 V AC range) / 110 – 300 V DC
- Input Frequency: 50/60 Hz
- Output Voltage: 24 V DC
- Output Current: 5 A
- Output Power: 120 W
- Adjustable Output Voltage: 22.8 to 28 V
- Efficiency: approx. 89%
- Protection: Electronic short-circuit and overload protection
- Operating Temperature: -25 °C to +70 °C
- Mounting: DIN rail mountable (EN 60715 35×7.5/15)
- Dimensions (W x H x D): 50 mm x 125 mm x 120 mm
SIEMENS 6EP1333-2BA20
Model：SIEMENS 6EP1333-2BA20
