Product Description

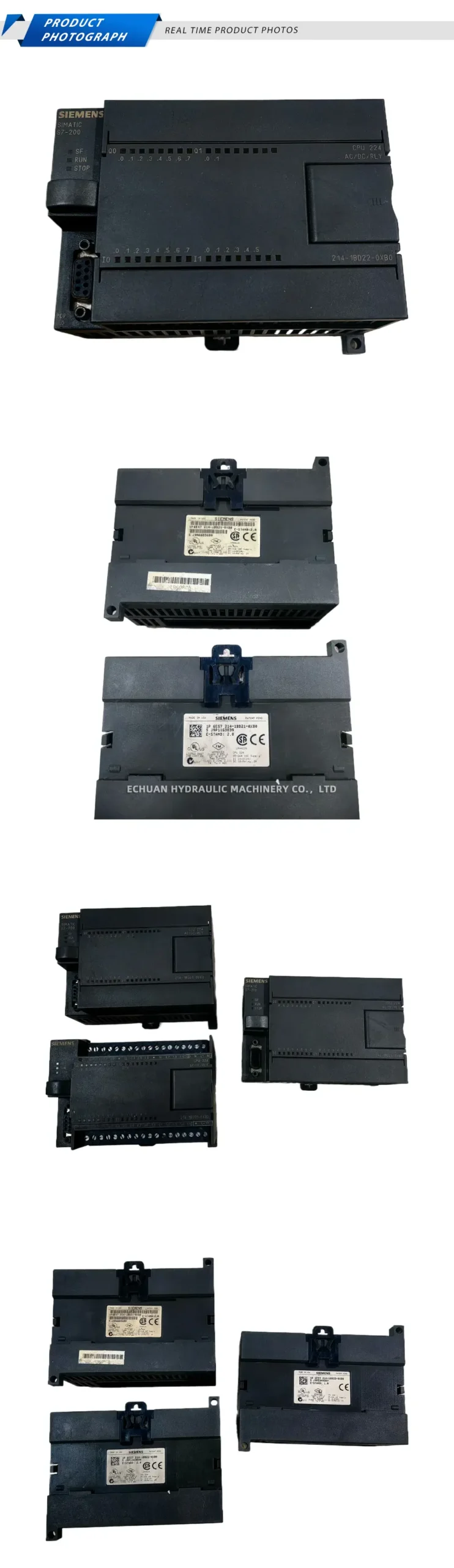

Siemens 6ES7214-1BD21-0XB0

The Siemens 6ES7214-1BD21-0XB0 is a SIMATIC S7-200 CPU 224 compact controller. This versatile PLC (Programmable Logic Controller) is designed for a wide range of automation tasks, particularly suitable for small to medium-scale applications. It features integrated digital inputs and outputs, a DC power supply, and DC inputs/outputs, making it a robust solution for various industrial control processes. The CPU 224 offers a good balance of processing power, memory, and I/O capabilities for efficient automation.

Technical Specifications:

Product Type: CPU 224 Compact Unit
Series: SIMATIC S7-200
Order Number: 6ES7214-1BD21-0XB0
Supply Voltage: 24 V DC
Permissible range, lower limit (DC): 20.4 V
Permissible range, upper limit (DC): 28.8 V
Digital Inputs: 14 (24 V DC)
Digital Outputs: 10 (24 V DC, transistor)
Output current per output, max.: 0.75 A
Program Memory: 8 Kbytes
Data Memory: 5 Kbytes
Communication Ports: 1 x RS485 (supports PPI, MPI, Freeport)
Processing time for 1 K binary instructions: 0.37 ms
Number of timers: 256
Number of counters: 256
Mounting: DIN rail S7-200 rail or panel mounting
Degree of protection: IP20
Dimensions (W x H x D): 120.5 mm x 80 mm x 62 mm
Ambient temperature (operation): 0 °C to 55 °C (horizontal installation), 0 °C to 45 °C (vertical installation)
