Product Description

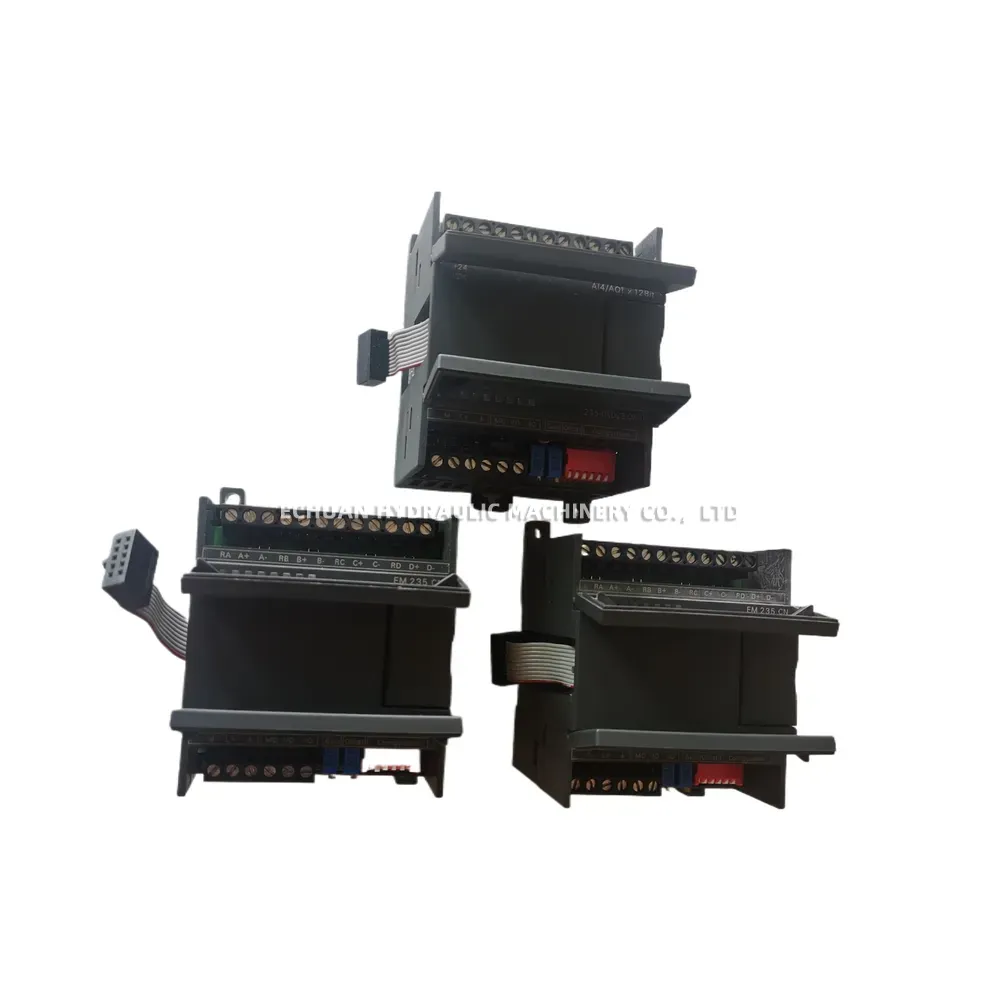

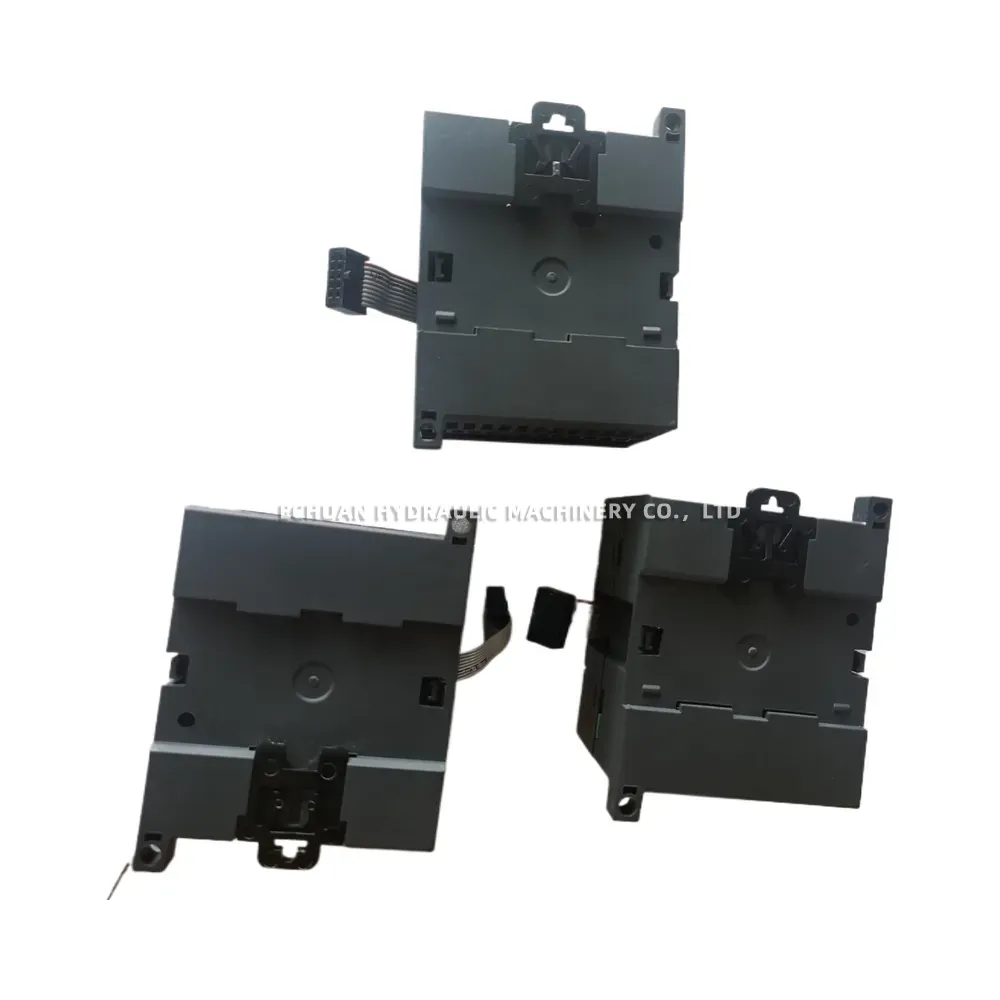

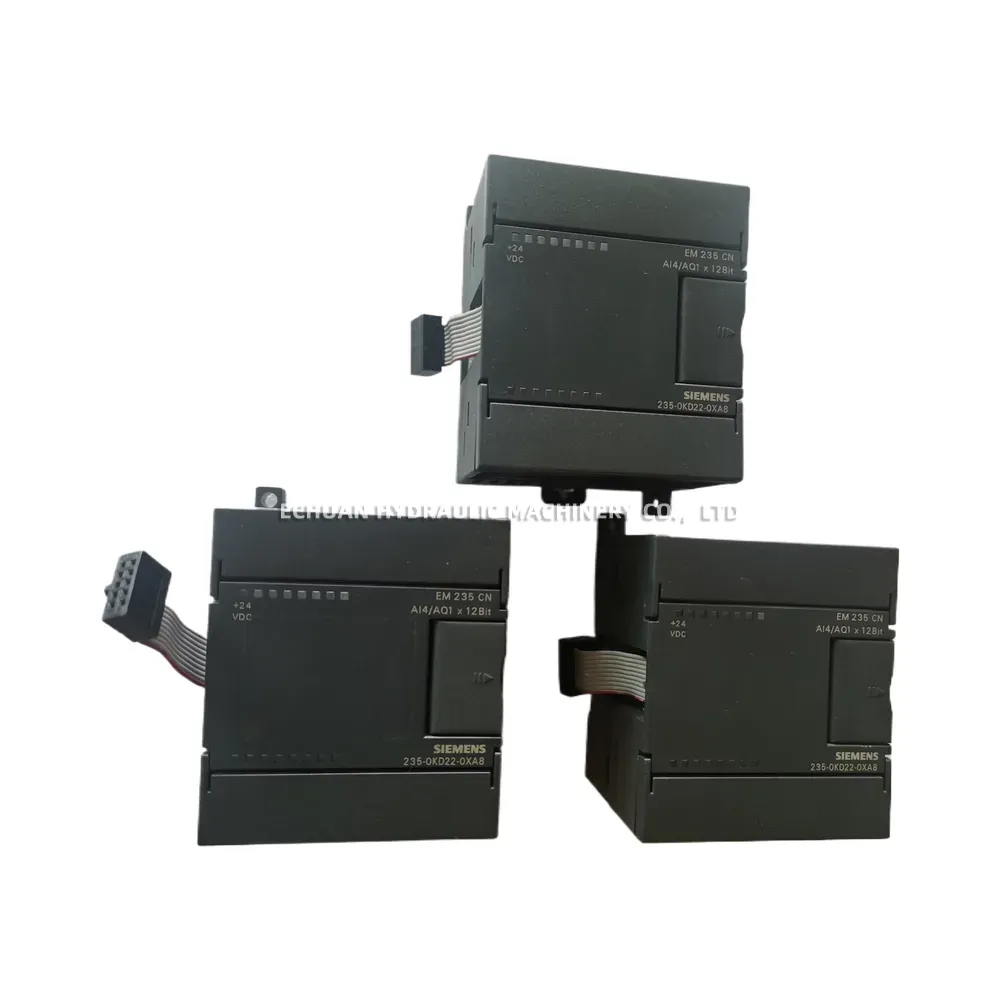

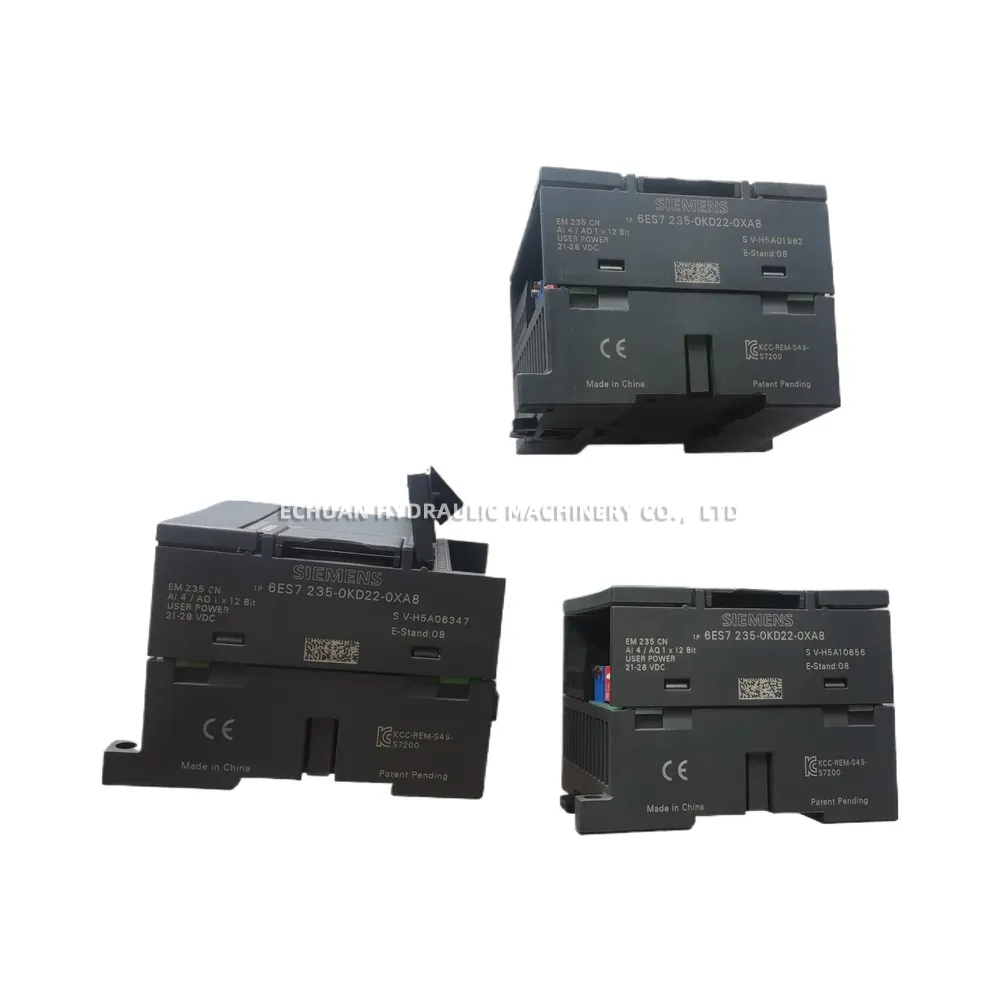

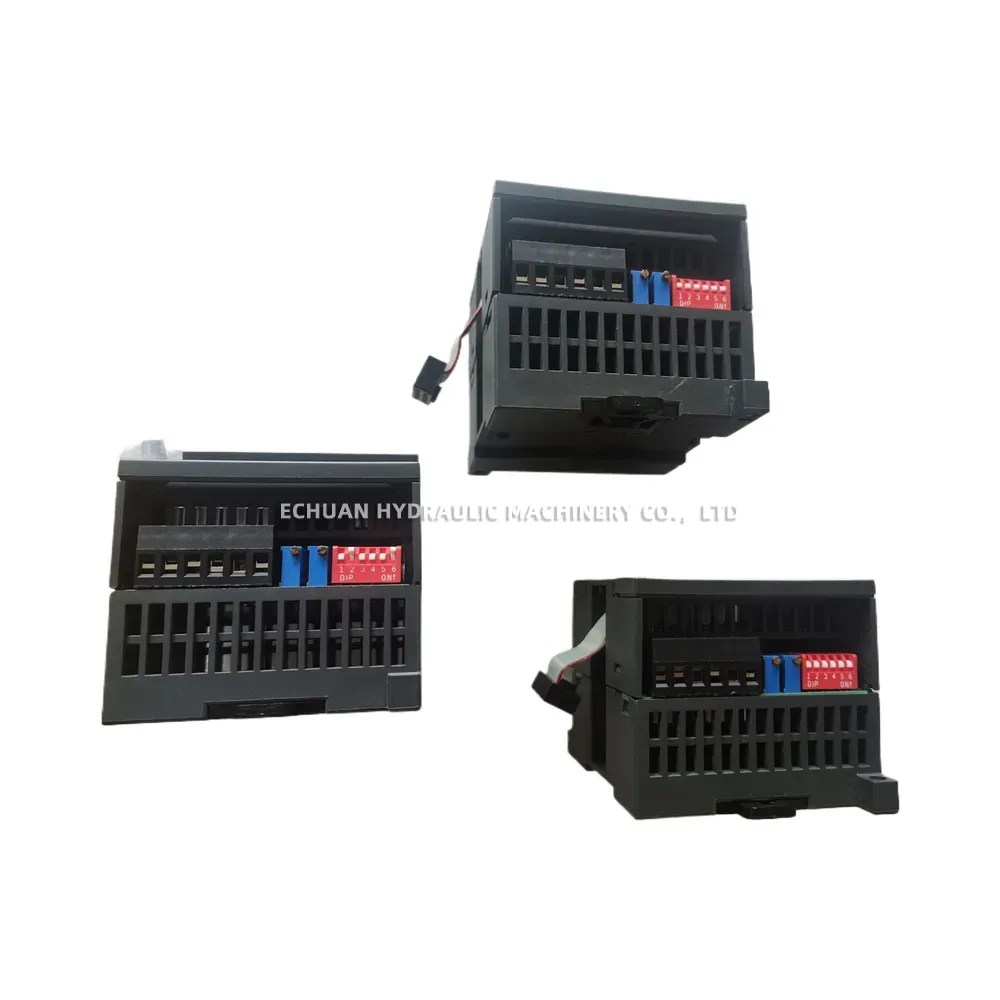

Siemens 6ES7235-0KD22-0XA8
The Siemens 6ES7235-0KD22-0XA8 is an analog combination module, part of the SIMATIC S7-200 series. This module, designated as EM 235, provides an interface for both analog inputs and outputs. It features four analog inputs and one analog output, allowing for the connection of various analog sensors and actuators. This enhances the S7-200 PLC’s capability to process analog signals for more sophisticated control tasks in industrial automation. The module supports different voltage and current ranges, offering flexibility for diverse applications.
Technical Specifications:
- Product Type: Analog I/O Module (EM 235)
- Product Series: SIMATIC S7-200
- Supply voltage: 24 V DC
- Number of analog inputs: 4
- Input type (analog inputs): Voltage / Current (selectable)
- Input ranges (voltage): ±10 V, ±5 V, ±2.5 V
- Input ranges (current): 0 to 20 mA
- Resolution of analog inputs: 12 bits
- Number of analog outputs: 1
- Output type (analog outputs): Voltage / Current (selectable)
- Output ranges (voltage): ±10 V
- Output ranges (current): 0 to 20 mA
- Resolution of analog outputs: 12 bits (for voltage), 11 bits (for current)
- Isolation: Yes (between analog I/O and S7-200 bus, and between channels)
- Dimensions (W x H x D): Approximately 46 mm x 80 mm x 62 mm
- Connection method: Screw-type terminals
Siemens 6ES7235-0KD22-0XA8
Model:Siemens 6ES7235-0KD22-0XA8
| Brand | SIEMENS |
|---|---|
| Model | 6ES7235-0KD22-0XA8 |
| Part No. | Siemens 6ES7235-0KD22-0XA8 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/siemens-6es7235-0kd22-0xa8 |
