Product Description

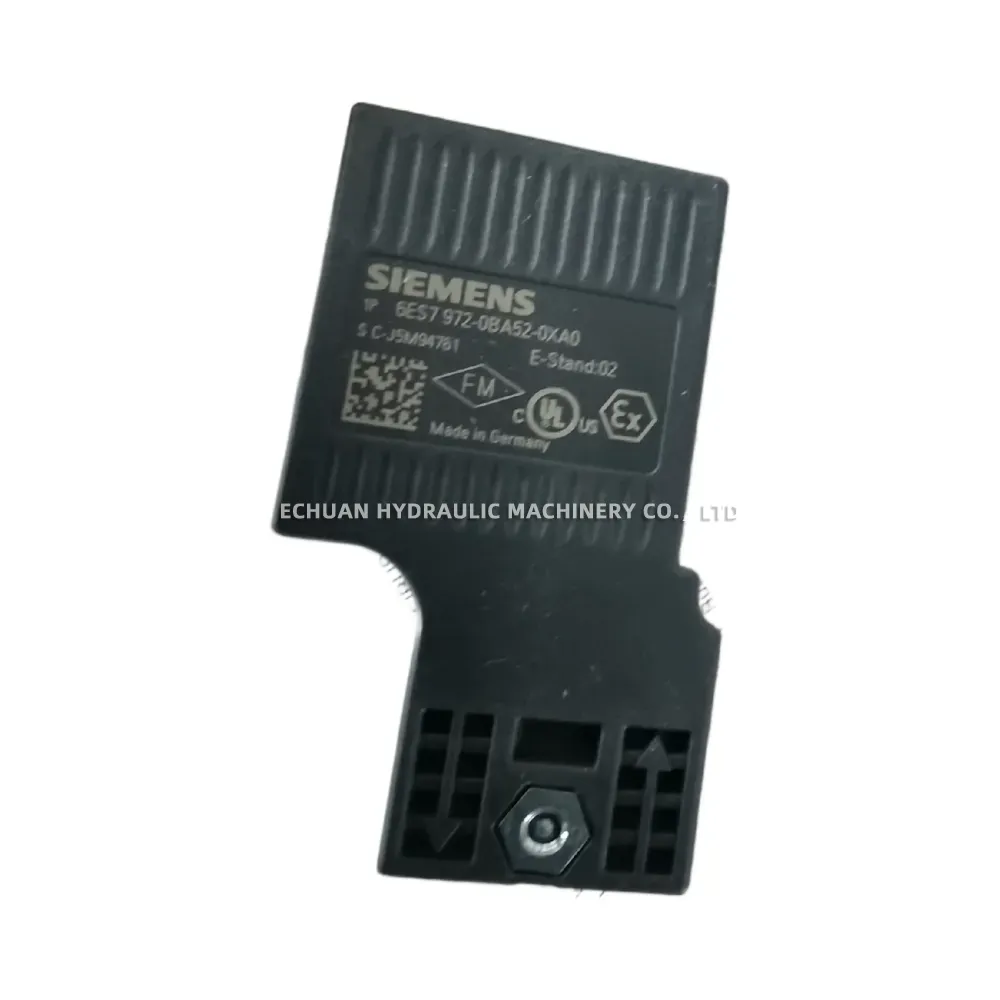

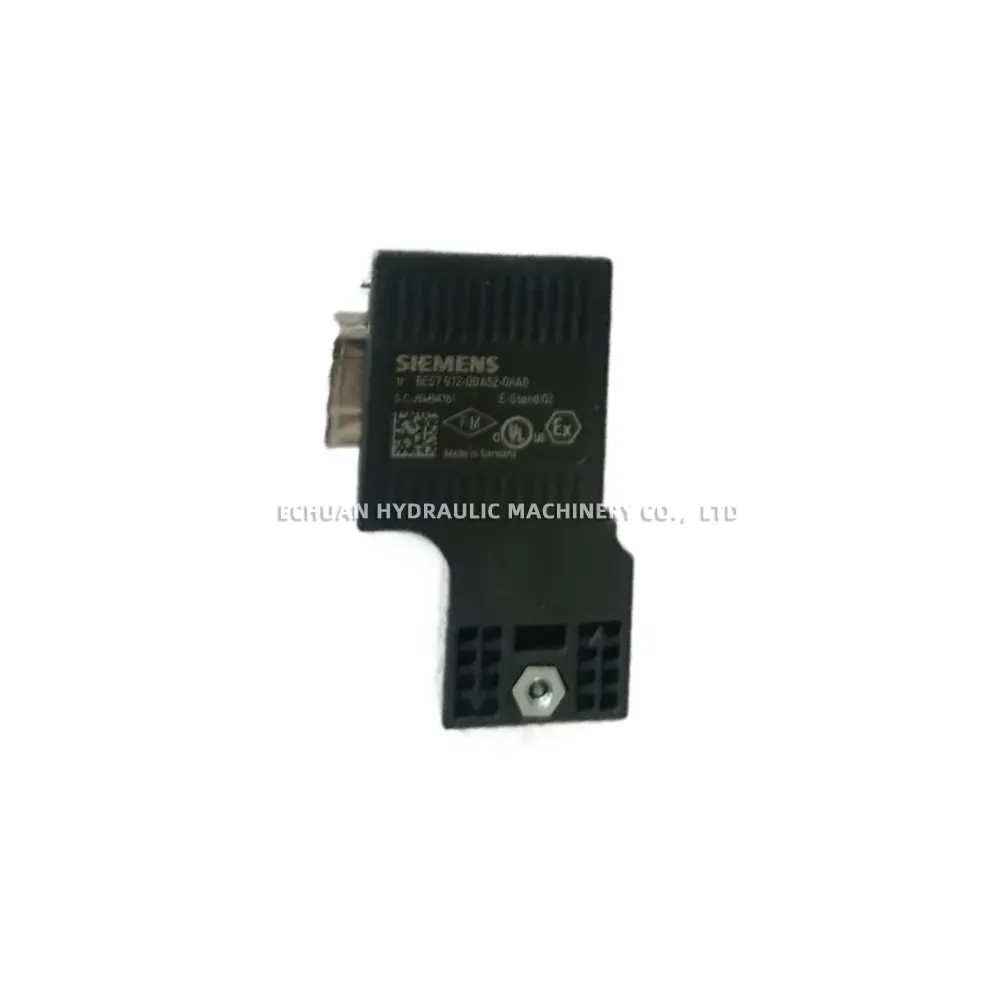

Siemens 6ES7972-0BA52-0XA0

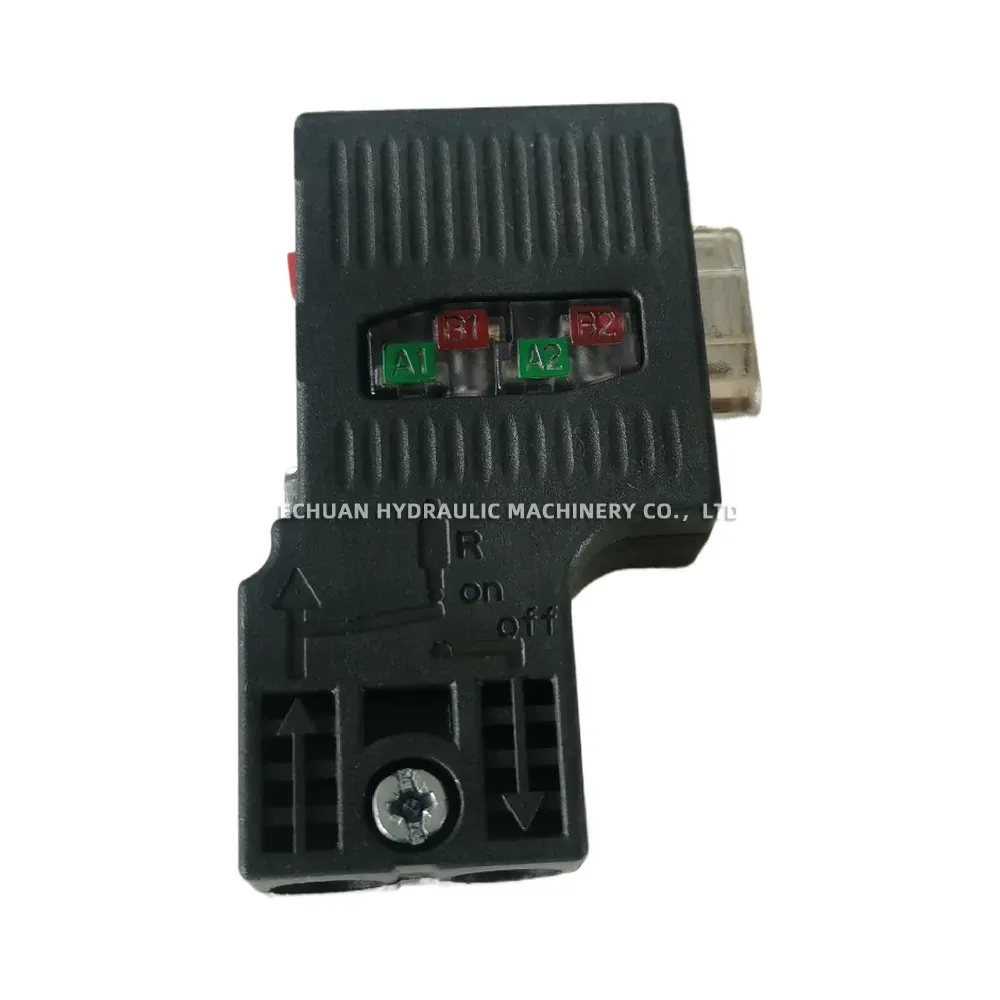

The Siemens 6ES7972-0BA52-0XA0 is a PROFIBUS FastConnect bus connector (RS485) designed for efficient and reliable connections in PROFIBUS networks. It features a 90-degree cable outlet and utilizes the FastConnect insulation displacement technology, allowing for quick and easy assembly without the need for special stripping tools. This connector supports transmission rates up to 12 Mbit/s and is suitable for connecting PROFIBUS nodes to the bus cable. This model does not include a PG (Programming Device) socket.

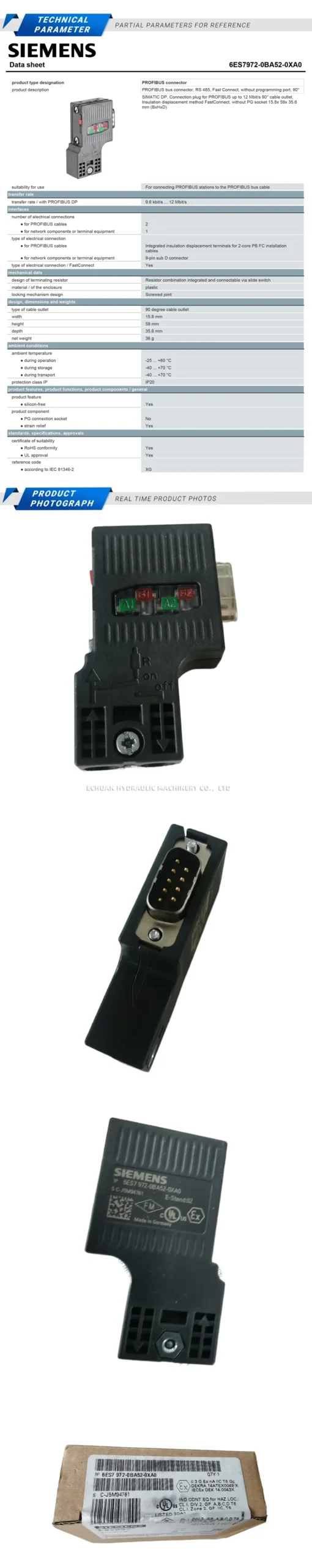

Technical Specifications:

Product Type Designation: PROFIBUS FC RS 485 plug 90
Transfer Rate (for PROFIBUS): 9.6 kbit/s to 12 Mbit/s
Type of Electrical Connection (for PROFIBUS cables): Integrated insulation displacement contacts for 2-wire PROFIBUS FastConnect installation cables

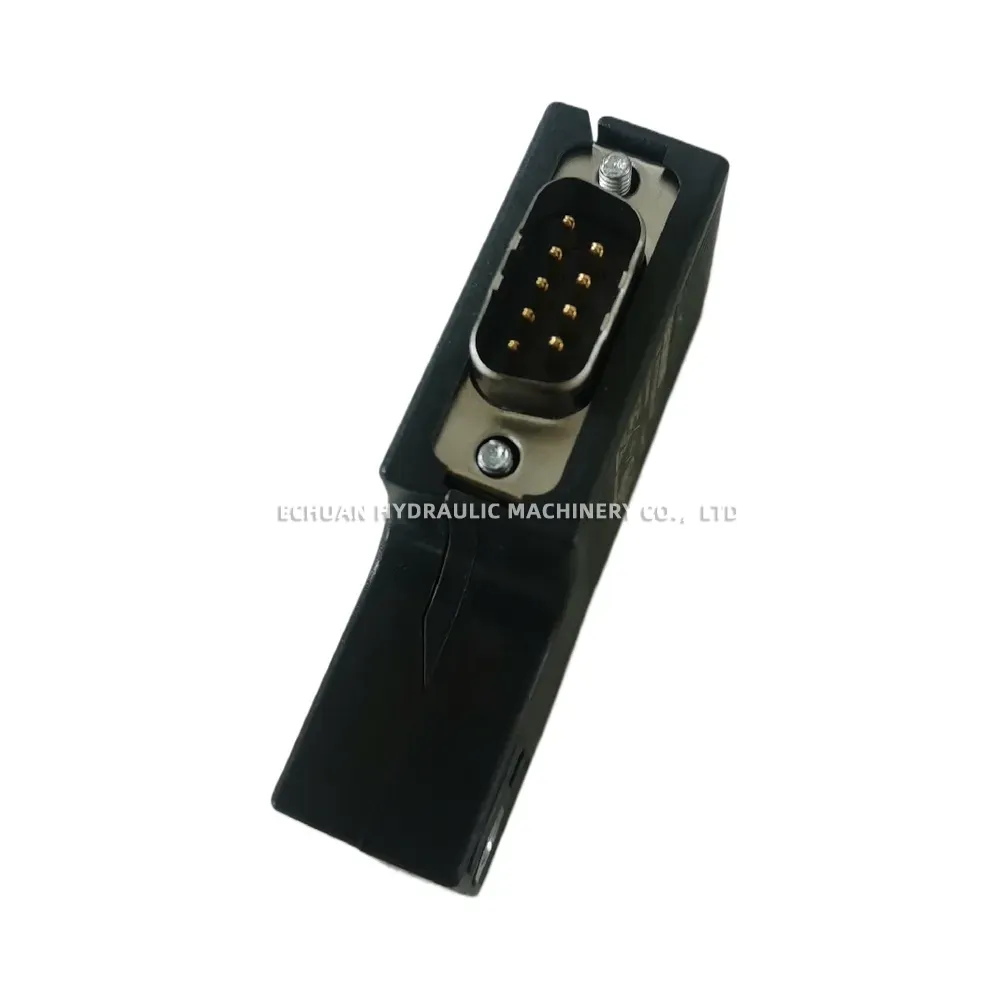

Type of Electrical Connection (for network components or terminal equipment): 9-pin Sub-D connector
Cable Outlet: 90-degree
Connection Method: FastConnect (insulation displacement)
PG Socket: No
Housing Material: Plastic
Ambient Temperature (during operation): -25 °C to +60 °C
Protection Class IP: IP20
Dimensions (W x H x D): Approx. 15.8 mm x 59 mm x 35.6 mm
Number of connectable PROFIBUS cables: 1
Locking Mechanism: Screws
Silicon-free: Yes
