Product Description

Siemens 6ES7365-0BA01-0AA0

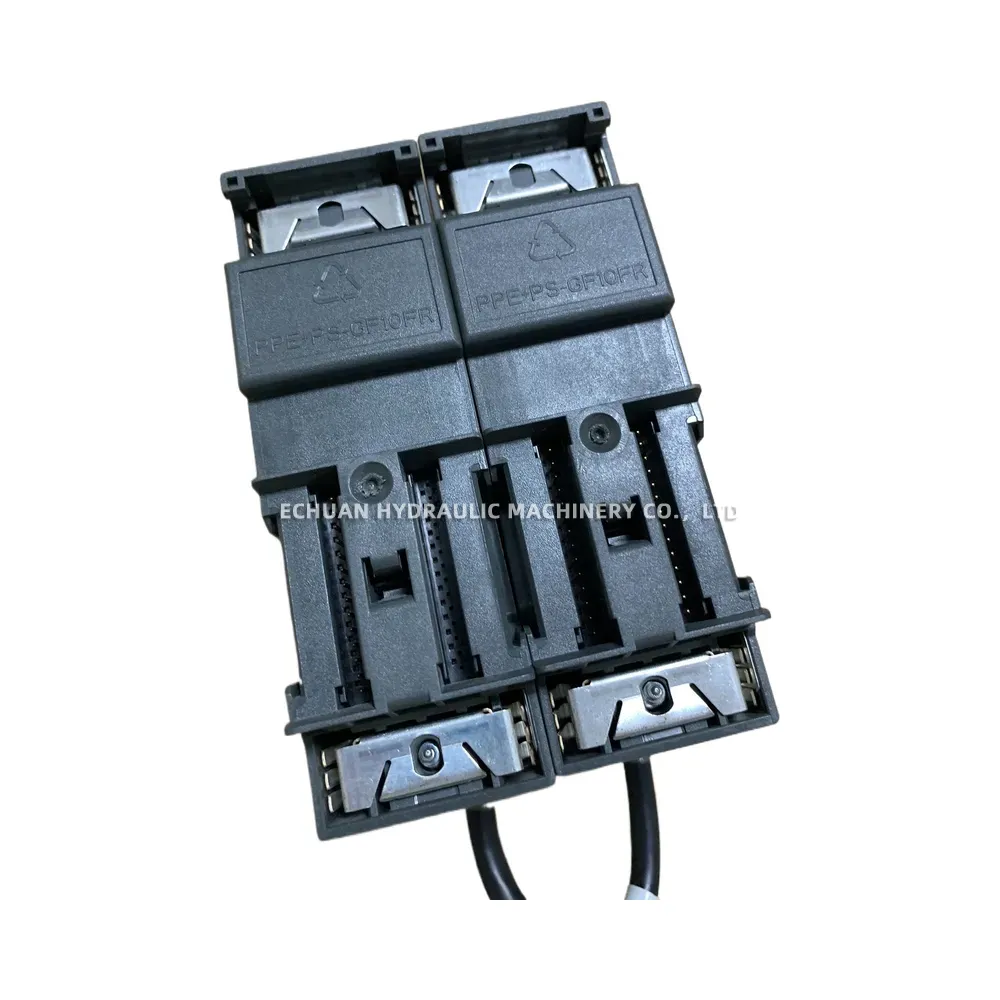

The Siemens 6ES7365-0BA01-0AA0 is an IM 365 interface module set for the SIMATIC S7-300 PLC system. This module is designed to facilitate the expansion of the S7-300 system by connecting one expansion rack (ER) to the central controller (CC) or central rack (CR). The package includes two modules—one for the central rack and one for the expansion rack—along with a 1-meter connecting cable. This provides a straightforward and cost-effective solution for local system expansion, allowing for the addition of up to 8 I/O modules in the expansion rack. It is an essential component for applications requiring more I/O capacity than a single central rack can provide.

Technical Specifications:

  • Product Type: Interface Module (IM 365)

  • System: SIMATIC S7-300

  • Function: Connects one expansion rack to the central controller

  • Supply Voltage: 24 V DC

  • Distance between Racks: Max. 1 m

  • Package Contents: 2x modules, 1x connecting cable (1 m)

  • Dimensions (W x H x D): 40 mm x 125 mm x 117 mm

Siemens 6ES7365-0BA01-0AA0 Description

Siemens 6ES7365-0BA01-0AA0

Siemens 6ES7365-0BA01-0AA0 SIMATIC S7-300 IM 365 interface module set for connecting one expansion rack. Includes two modules and a 1m connecting cable for seamless system expansion.
