Product Description

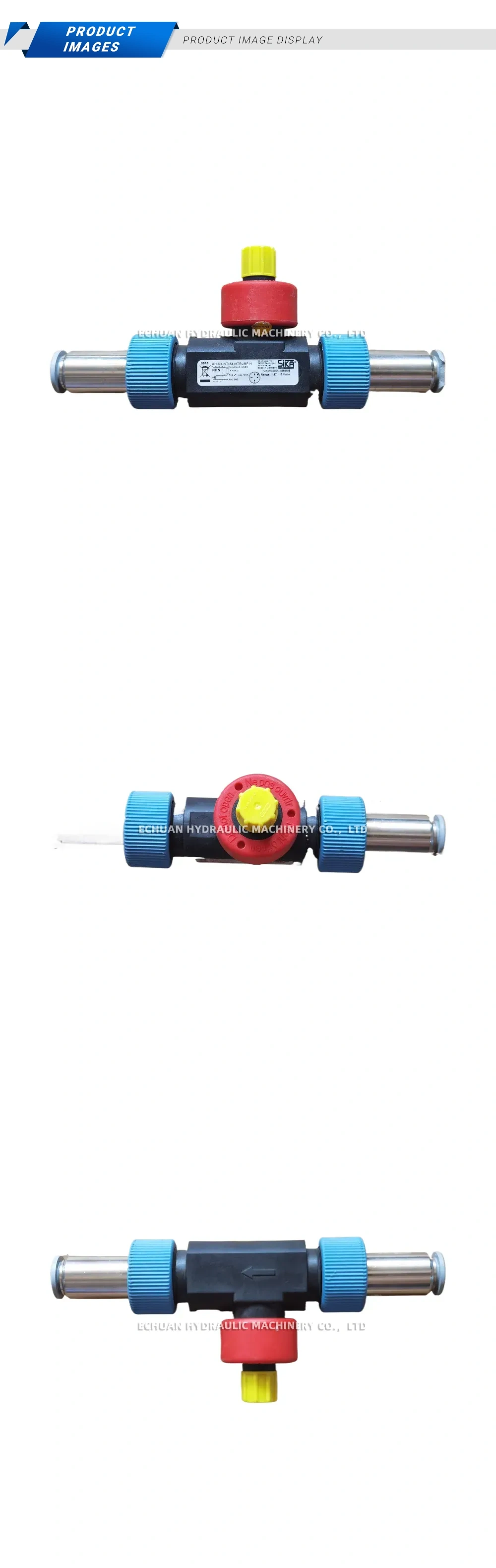

SIKA VT1541KTRUMP14 Piston Type Flow Switch

The SIKA VT1541KTRUMP14 is a robust and reliable piston-type flow switch designed for monitoring the flow of low-viscosity liquids, such as water and oil, in various industrial applications. Part of the proven VT15 series, this model features a durable brass body and piston, ensuring long service life even in demanding environments. The operating principle is based on a piston, supported by a spring, which is displaced by the flowing medium. A magnet integrated into the piston actuates a reed contact, providing a clear and dependable switching signal. This compact flow switch is ideal for use in cooling circuits, lubrication systems, and general process monitoring where a specific flow rate needs to be maintained.

Technical Specifications:

  • Type: Piston Type Flow Switch

  • Process Connection: G1/4 female thread

  • Switching Range (for water): 1.4 … 3.0 l/min

  • Body & Piston Material: Brass (CW617N)

  • Switching Contact: Reed contact, SPDT (changeover)

  • Electrical Connection: Plug connector DIN 43650-A

  • Maximum Pressure: 25 bar

SIKA VT1541KTRUMP14 Description

SIKA VT1541KTRUMP14

Order the SIKA VT1541KTRUMP14 piston flow switch, featuring a brass body, G1/4 connection, and a 1.4-3.0 l/min switching range for reliable liquid flow monitoring in industrial systems.

BrandSIKA
ModelVT1541KTRUMP14
CategoryElectrical
