Product Description

Balluff BIS00M6 BIS M-341-001-S115

The Balluff BIS M-341-001-S115 is a robust and reliable processor unit designed for High-Frequency (HF) RFID systems within the BIS M series. Encased in a durable, nickel-plated die-cast zinc housing, this unit is built to withstand harsh industrial environments. It serves as the central interface between RFID read/write heads and a higher-level controller, such as a PLC. Featuring a parallel interface and the ability to connect up to two read/write heads, it provides a straightforward solution for industrial tracking and data collection applications, ensuring efficient and error-free identification processes in manufacturing, logistics, and assembly lines.

Technical Specifications:

  • System: BIS M

  • Operating Frequency: 13.56 MHz

  • Interface: Parallel, 24 VDC, PNP

  • Housing Material: Die-cast zinc, nickel-plated

  • Enclosure Rating: IP67 (with connectors mated)

  • Operating Voltage: 19.2…28.8 VDC

  • Connection: D-Sub, 25-pin, male

  • Number of Read/Write Heads (Max.): 2

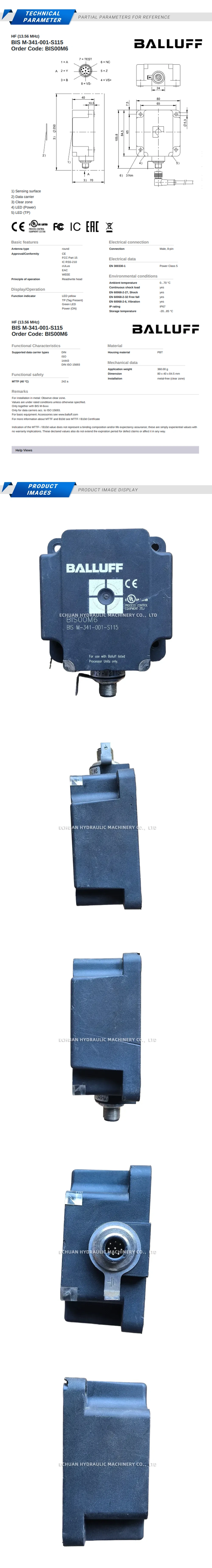

Balluff BIS00M6 BIS M-341-001-S115 Description

Balluff BIS00M6 BIS M-341-001-S115

Discover the Balluff BIS M-341-001-S115 (BIS00M6), a high-frequency RFID processor with a parallel interface. Features a rugged IP67-rated metal housing, supports up to two read heads, and is ideal for industrial automation and tracking systems.
