Product Description

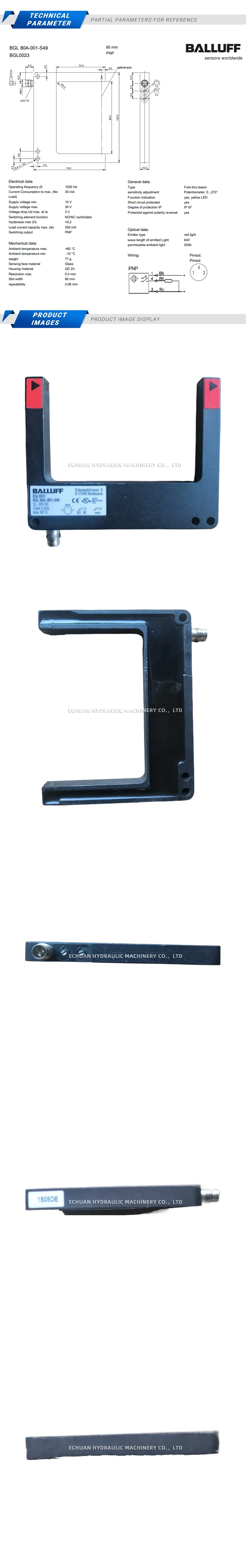

Balluff BGL80A-001-S49 BGL0023
The Balluff BGL80A-001-S49 (BGL0023) is a high-performance fork sensor designed for demanding industrial automation applications. Part of the BGL 80A series, this optical sensor features a generous 80 mm fork width, making it ideal for detecting a wide range of objects, from small parts to labels and edges. Its robust anodized aluminum housing ensures durability in harsh environments, while the infrared light source provides reliable detection regardless of ambient light conditions. With a high switching frequency and a user-selectable PNP NO/NC output, this sensor offers exceptional precision and flexibility for tasks such as part presence verification, edge guiding, and counting applications.
Technical Specifications:
- Principle of operation: Optical fork sensor
- Fork width: 80 mm
- Light type: Infrared, alternating light
- Switching output: PNP, switchable between Normally open/Normally closed (NO/NC)
- Connection: M8x1-Male connector, 4-pin
- Operating voltage: 10…30 V DC
- Switching frequency: 4000 Hz
- Housing material: Aluminum, anodized
- IP rating: IP67
Balluff BGL80A-001-S49 BGL0023
Shop the Balluff BGL0023 (BGL80A-001-S49) optical fork sensor. Features an 80mm fork width, PNP output, M8 connector, and a durable IP67-rated aluminum housing for reliable object detection in industrial automation.
