Product Description

Balluff BES516-326-G-S4-C

The Balluff BES516-326-G-S4-C is a robust and reliable M18 standard inductive sensor designed for non-contact detection of metallic objects in a wide range of industrial automation applications. Its flush-mountable design allows for seamless integration into machinery, while the durable nickel-plated brass housing ensures longevity even in harsh environments. Featuring a standard PNP normally open (NO) output and a convenient M12 connector, this sensor offers a dependable and easy-to-install solution for position sensing, counting, and control tasks.

Technical Specifications:

  • Sensing Range: 5 mm

  • Mounting Type: Flush mountable

  • Switching Output: PNP

  • Switching Function: Normally open (NO)

  • Housing Size: M18x1

  • Connection: M12x1-Male, 4-pin connector

  • Operating Voltage: 10…30 V DC

  • IP Rating: IP68

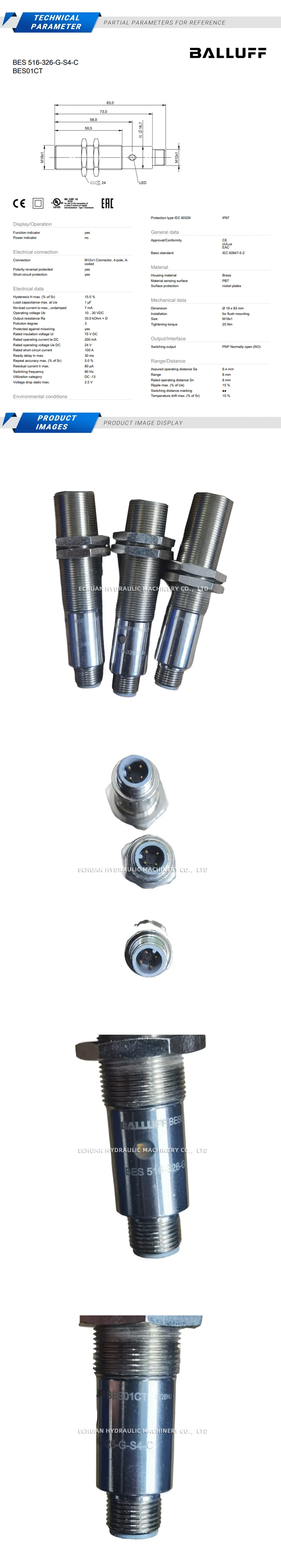

Balluff BES516-326-G-S4-C Description

Balluff BES516-326-G-S4-C

Balluff BES516-326-G-S4-C M18 inductive sensor with a 5mm flush sensing range, PNP NO output, and a 4-pin M12 connector. A durable and reliable choice for metal object detection in industrial automation.
