Product Description

Balluff B0S01C2 B0S 18M-PS-RE20-S4

The Balluff B0S01C2 is a high-performance retro-reflective photoelectric sensor from the BOS 18M series. Encased in a durable, nickel-plated brass M18 cylindrical housing, it is designed for reliable object detection in demanding industrial environments. This sensor features a polarization filter, which ensures dependable detection of shiny or reflective objects while preventing false signals. With a generous sensing range of up to 4 meters and a versatile PNP output that can be configured as normally open (NO) or normally closed (NC), it offers flexibility for various automation tasks. The standard M12 connector allows for quick and secure installation, making it an ideal choice for applications in packaging, material handling, and assembly lines.

Technical Specifications:

  • Model: B0S 18M-PS-RE20-S4

  • Order Code: B0S01C2

  • Sensor Principle: Photoelectric, Retro-reflective with polarization filter

  • Sensing Range: 50…4000 mm

  • Switching Output: PNP, Normally Open/Normally Closed (NO/NC)

  • Housing: M18 x 75 mm, Brass, nickel-plated

  • Connection: M12x1 Male Connector, 4-pin

  • Operating Voltage: 10…30 V DC

  • Light Source: LED, Red light

  • IP Rating: IP67

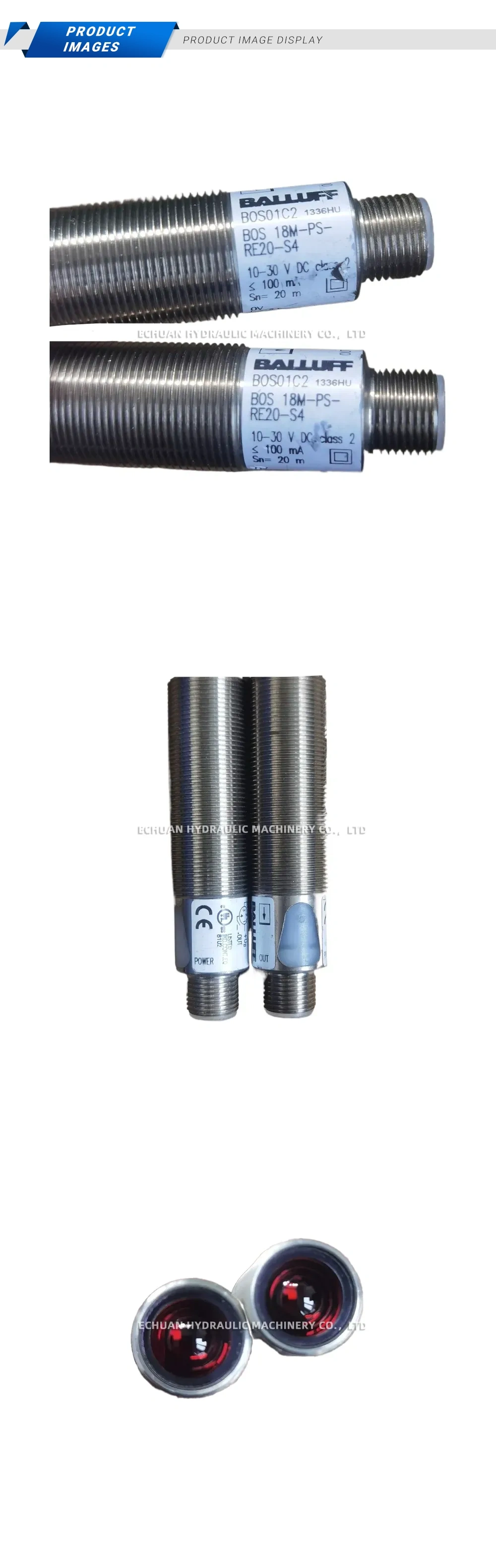

Balluff B0S01C2 B0S 18M-PS-RE20-S4 Description

Balluff B0S01C2 B0S 18M-PS-RE20-S4

Discover the reliable Balluff B0S01C2 (BOS 18M-PS-RE20-S4) retro-reflective photoelectric sensor. It features a 4m range, robust M18 brass housing, configurable PNP output, and an IP67 rating for demanding industrial automation applications.
