Product Description

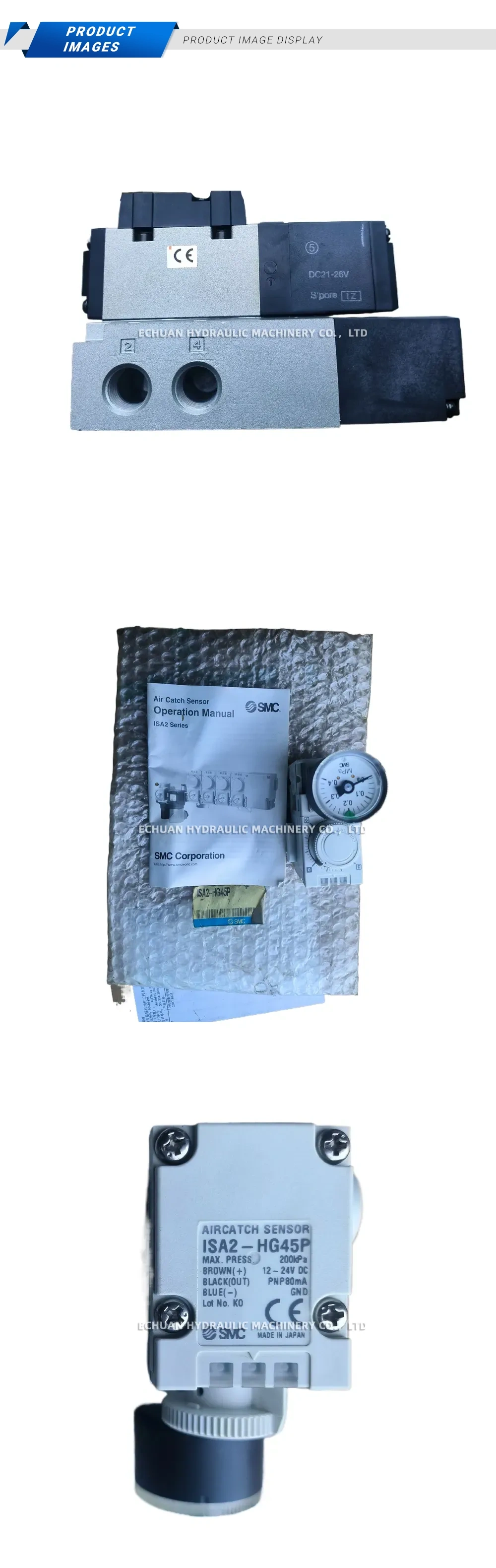

SMC ISA2-HG45P Air Catch Sensor
The SMC ISA2-HG45P is a high-precision air catch sensor designed for non-contact detection of workpieces in automated industrial applications. This model is part of the ISA2 series and operates on the principle of detecting changes in air pressure when an object is present within its sensing range. The ISA2-HG45P is a high-pressure type featuring a straight nozzle with a ø4.5 mm bore, making it ideal for applications requiring reliable gap detection, workpiece seating confirmation, and presence verification. Its PNP open collector output allows for seamless integration with PLCs and other control systems, providing a fast and accurate sensing solution for modern manufacturing environments.
Technical Specifications:
- Model: ISA2-HG45P
- Type: Air Catch Sensor (High-Pressure Type)
- Nozzle Style: Straight
- Nozzle Bore Diameter: ø4.5 mm
- Output Specification: PNP open collector 1 output
- Operating Pressure Range: 0.1 to 0.5 MPa
- Sensing Distance: 0.01 to 0.5 mm
- Power Supply Voltage: 12 to 24 VDC ±10%
- Response Time: 2 ms or less
- Enclosure Protection: IP40
SMC ISA2-HG45P
SMC ISA2-HG45P high-pressure air catch sensor with a ø4.5mm straight nozzle and PNP output for precise, non-contact workpiece detection and gap checking in industrial automation.
| Brand | SMC |
|---|---|
| Model | ISA2-HG45P |
| Category | Electrical |
