Product Description

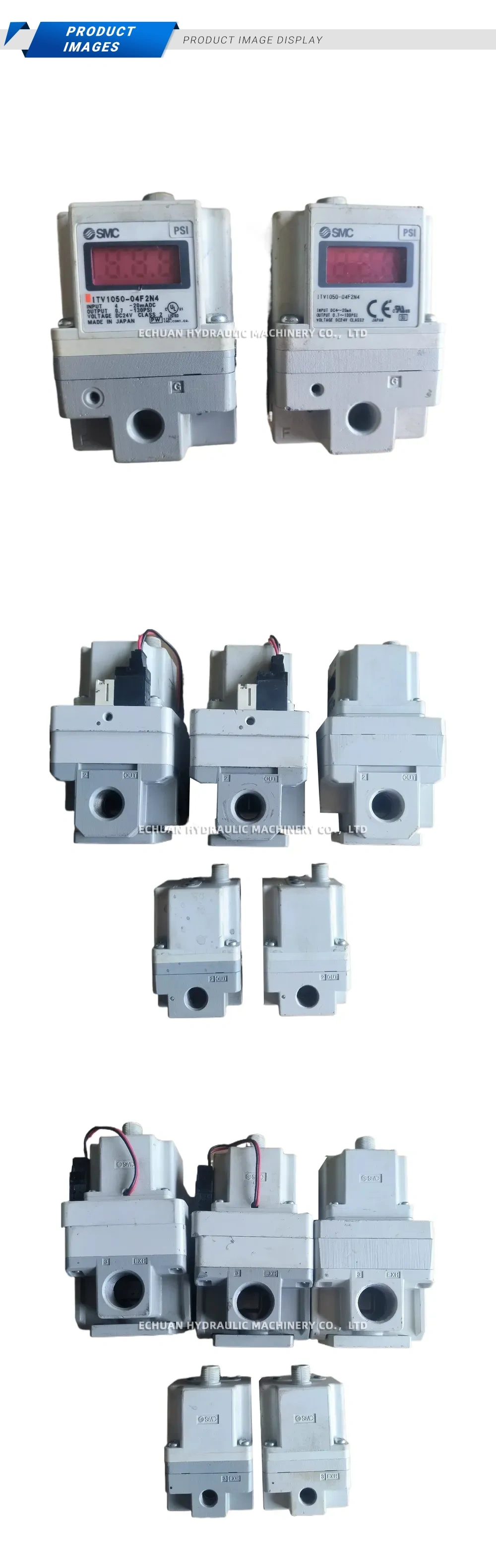

SMC ITV1050-04F2N4

The SMC ITV1050-04F2N4 is a high-precision electro-pneumatic regulator designed to control air pressure proportionally to an electrical input signal. As part of the ITV1000 series, this compact unit offers excellent stability and responsiveness, making it ideal for applications requiring precise and repeatable pressure management. It operates with a standard 4-20 mA input signal, allowing for seamless integration with PLCs and other industrial control systems. The robust construction and high sensitivity ensure reliable performance in demanding environments, from tension control and spot welding to material handling and testing equipment.

Technical Specifications:

  • Series: ITV1000

  • Set Pressure Range: 0.005 to 0.9 MPa

  • Input Signal: 4 to 20 mA DC

  • Port Size: G1/4

  • Supply Voltage: 24 VDC

  • Monitor Output: NPN open collector 1 output

SMC ITV1050-04F2N4 Description

SMC ITV1050-04F2N4

Discover the SMC ITV1050-04F2N4 electro-pneumatic regulator, offering precise proportional pressure control from 0.005 to 0.9 MPa. Features a 4-20mA input, G1/4 port, and NPN monitor output for advanced automation.
