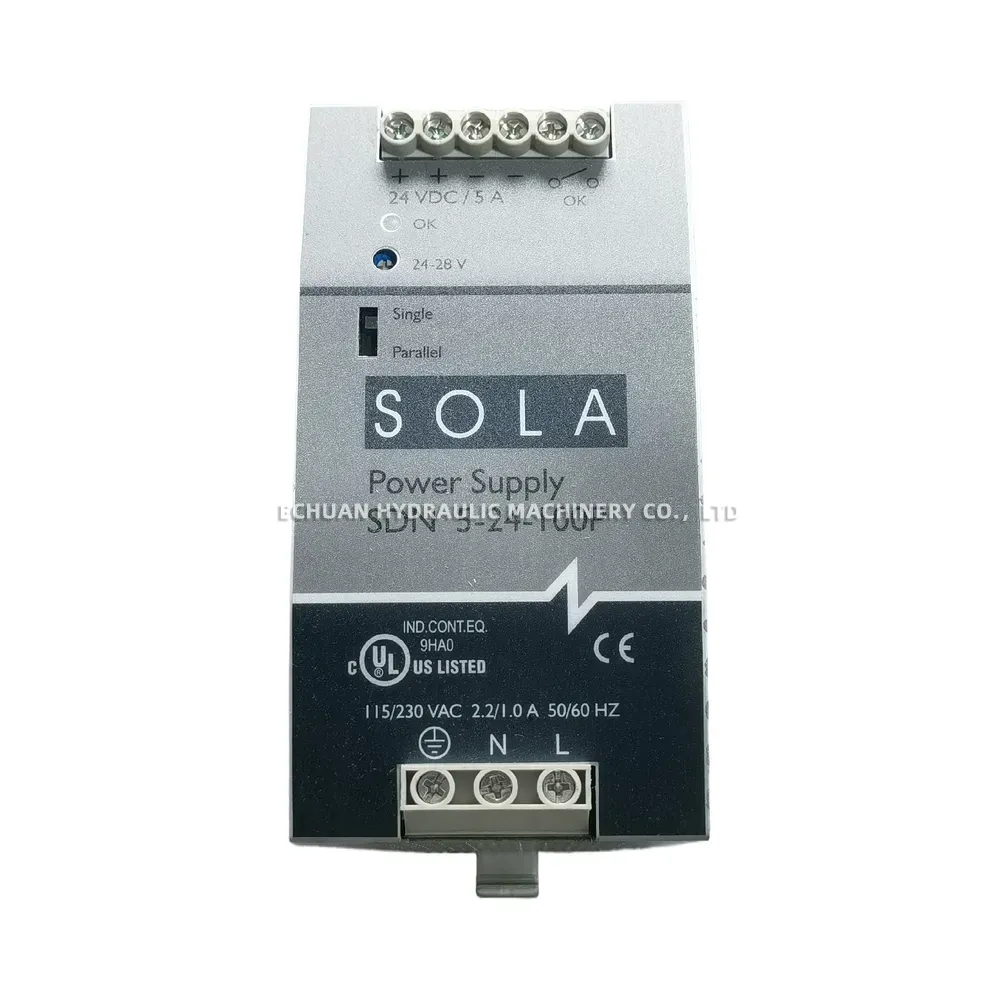

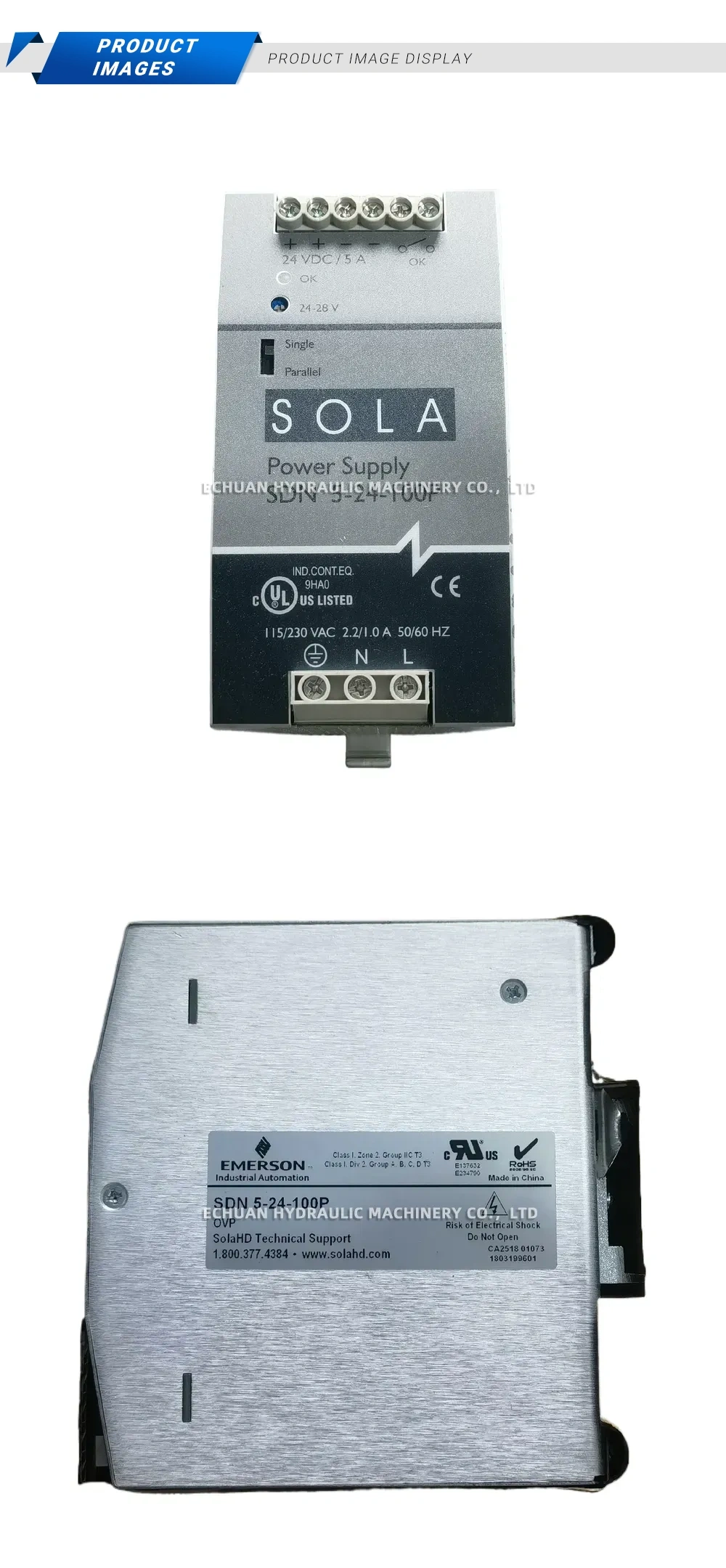

SolaHD SDN 5-24-100P DIN Rail Power Supply
The SolaHD SDN 5-24-100P by Emerson Industrial Automation is a highly reliable, compact DIN rail power supply engineered for demanding industrial environments. As part of the industry-leading SDN-P Series, this unit delivers a stable 24 VDC, 5 A output from a versatile 115/230 VAC input. It features a front-panel adjustable output range of 24-28 VDC and a convenient switch for Single or Parallel operation modes, providing maximum flexibility for complex system configurations. Designed for safety and durability, the SDN 5-24-100P is fully certified for Hazardous Locations (Class I, Div 2 / Zone 2) and is UL Listed, CE, and RoHS compliant. It is the ideal power solution for process control, factory automation, and heavy-duty machinery.
Technical Specifications:
- Brand: SolaHD (Emerson Industrial Automation)
- Model: SDN 5-24-100P
- Input Voltage: 115/230 VAC, 50/60 Hz
- Input Current: 2.2 A @ 115 VAC / 1.0 A @ 230 VAC
- Output Voltage: 24 VDC (Adjustable 24-28 VDC)
- Output Current: 5 A
- Operation Mode: Switchable Single / Parallel
- Mounting Type: DIN Rail
- Certifications: UL Listed (IND.CONT.EQ. 9HA0), cRUus (E137632, E234700), CE, RoHS

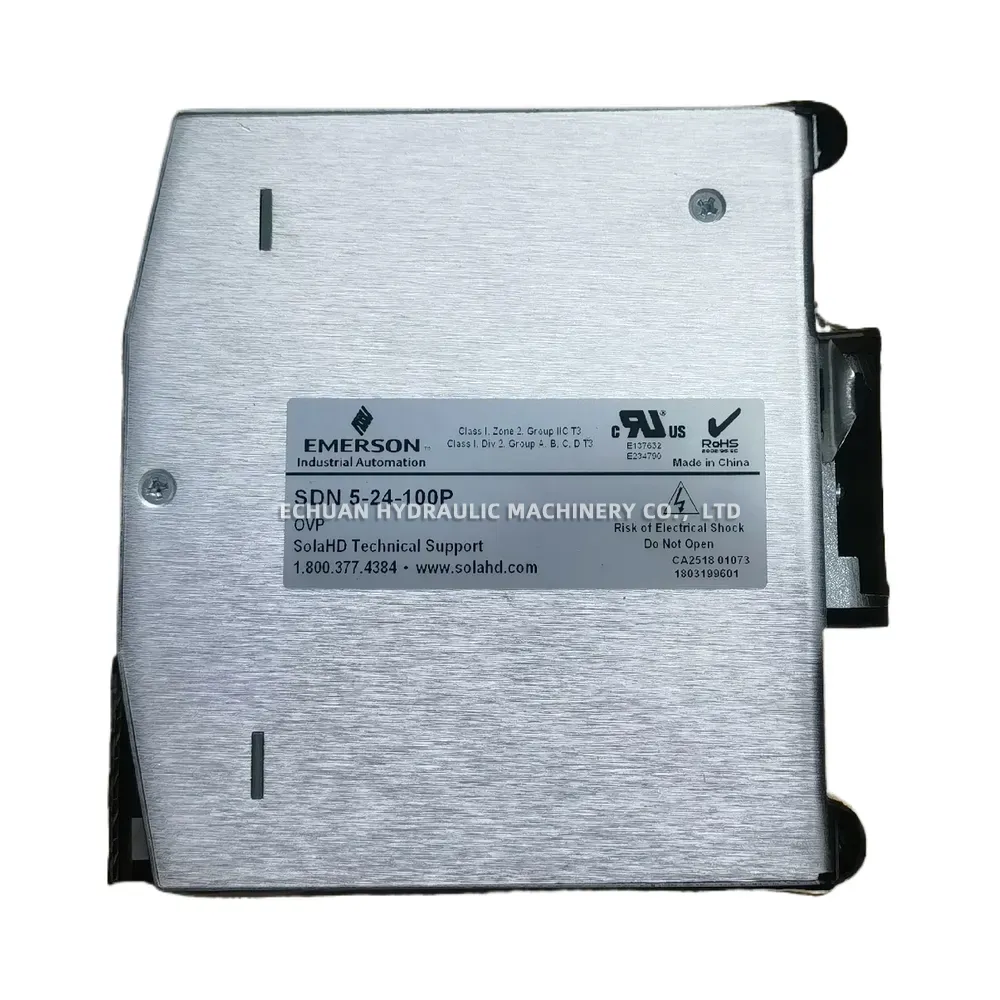

- Hazardous Location Ratings: Class I, Zone 2, Group IIC T3 | Class I, Div 2, Group A, B, C, D T3
