Product Description

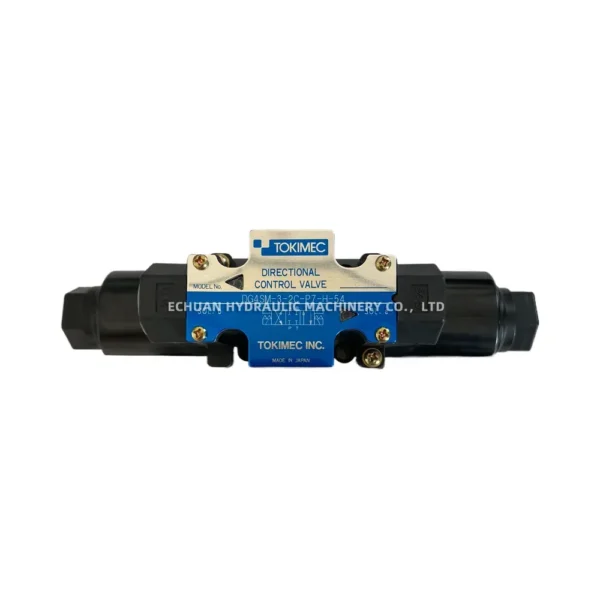

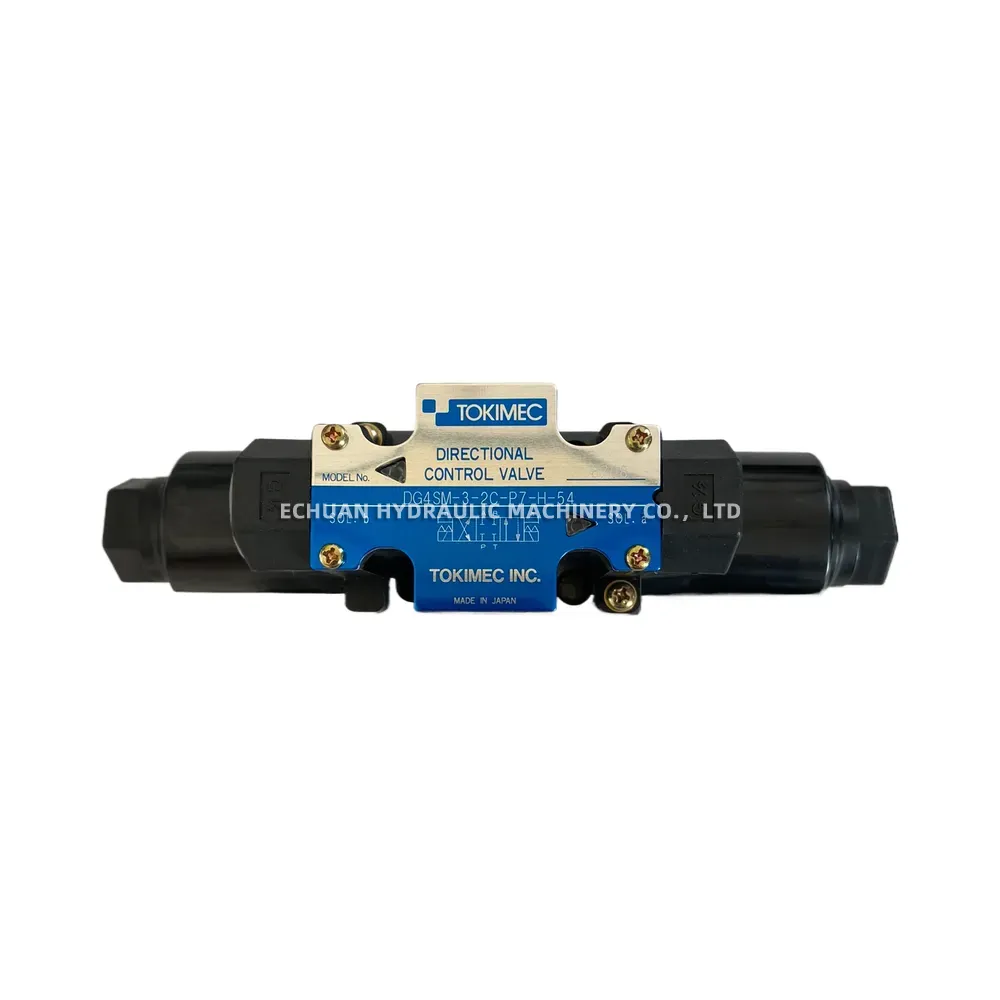

TOKIMEC DG4SM-3-2C-P7-H-54

The TOKIMEC DG4SM-3-2C-P7-H-54 is a high-performance, solenoid-operated directional control valve designed for industrial hydraulic systems. This valve conforms to the NG6 (CETOP 3 / D03) mounting standard, ensuring interchangeability. It features a double solenoid, 3-position configuration with a spring-centered ‘2C’ spool, which blocks ports P, T, A, and B in the center position. This configuration is suitable for applications requiring precise control over fluid direction and the ability to hold actuators in position when centered. The ‘H’ designation typically indicates a high-pressure rating capability.

Technical Specifications:

  • Valve Type: Solenoid Operated Directional Control Valve
  • Series: DG4SM-3
  • Mounting Standard: ISO 4401-03-02 / NFPA D03 / CETOP 3 / NG6
  • Size: NG6 (D03)
  • Spool Type: 2C (3-Position, Spring Centered, Closed Center P-T-A-B)
  • Actuation: Double Solenoid
  • Max Operating Pressure (Ports P, A, B): 31.5 MPa (315 bar / 4568 psi)
  • Max Tank Line Pressure (Port T): 16 MPa (160 bar / 2320 psi)
  • Max Flow Rate: Approximately 60 L/min (15.8 US gpm) – dependent on pressure drop
  • Design Number: 54
  • Identifier (P7): Specifies electrical characteristics/options (e.g., voltage, connector – consult specific datasheet for details)
  • Identifier (H): High Pressure Rating
