Product Description

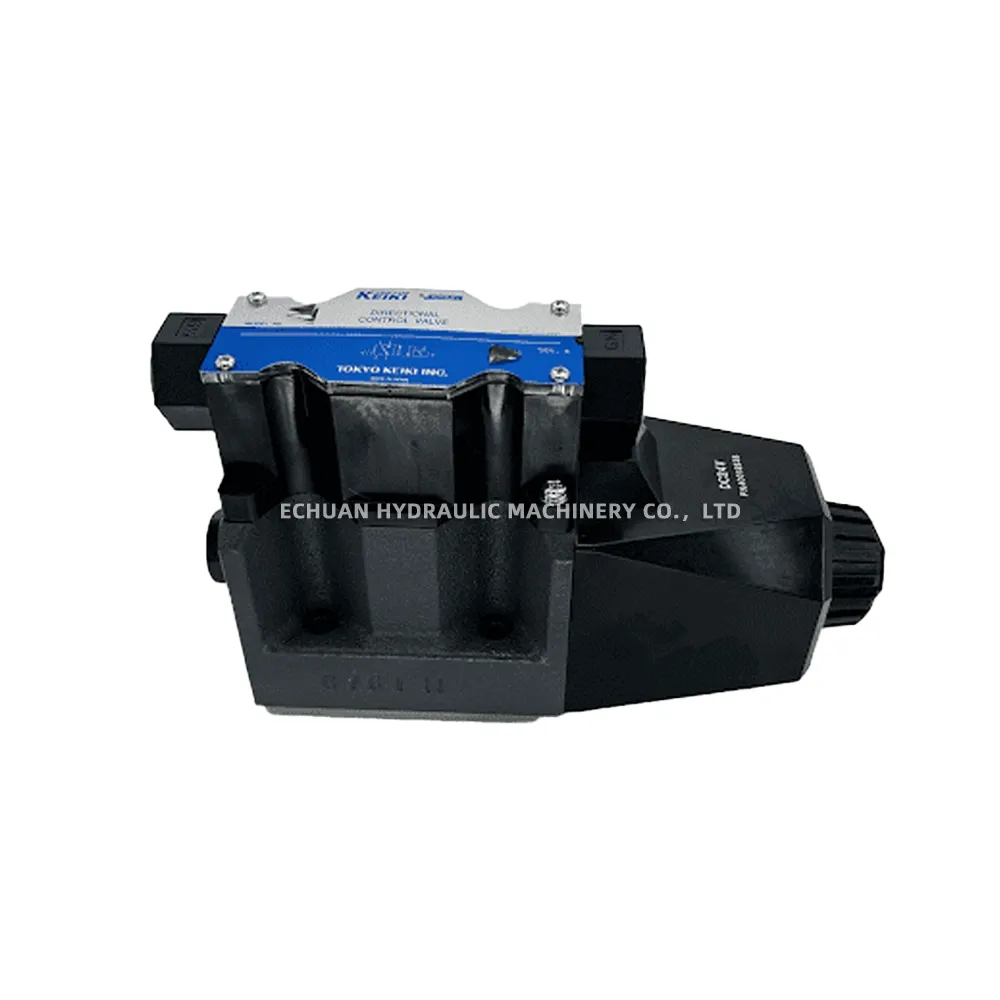

TOKIMEC DG4V-5-31B-M-PL-0V-6-40 (Vickers/Eaton Equivalent)
The DG4V-5-31B-M-PL-0V-6-40 is a high-performance industrial hydraulic directional control valve, originally manufactured by TOKIMEC and often cross-referenced with Vickers/Eaton DG4V-5 series valves. This specific model is a solenoid-operated, pilot-actuated valve designed for directing and controlling fluid flow in hydraulic systems. It features a size 5 (NG10 / D05) mounting interface. The ’31B’ spool configuration provides a tandem center position where the pressure port (P) is blocked, and work ports (A and B) are connected to the tank port (T), with spring centering. This valve utilizes low-wattage solenoids for energy efficiency and includes standard DIN connectors for electrical hookup.

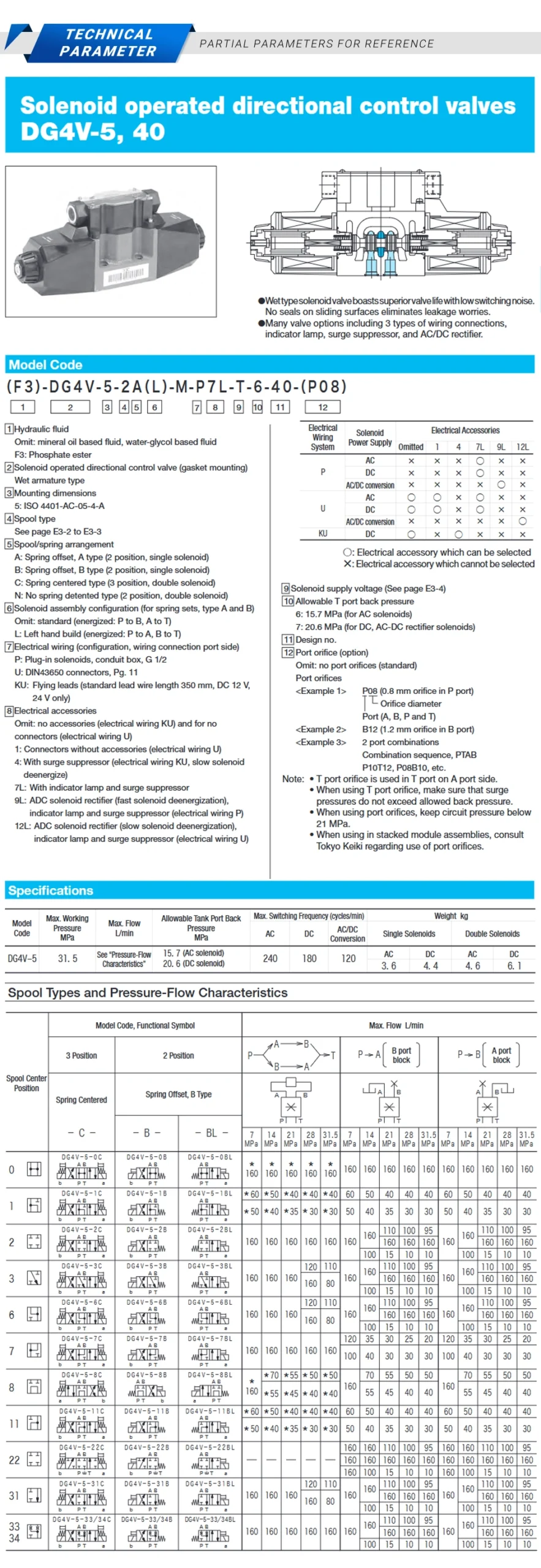

Technical Specifications:
- Valve Type: Solenoid Pilot Operated Directional Control Valve
- Series: DG4V-5 (Based on Vickers/Eaton equivalent)
- Size: NG10 / CETOP 5 / NFPA D05
- Mounting Standard: ISO 4401-05
- Spool Type: 31B (Tandem center, P blocked, A & B to T, Spring Centered)
- Actuation: Double Solenoid, Pilot Operated
- Solenoid Voltage: 24V DC (Inferred from ‘6’ in model code)
- Solenoid Power: Low Wattage (Indicated by ‘L’)
- Electrical Connection: DIN 43650 / ISO 4400 (Indicated by ‘M’)
- Maximum Operating Pressure (P, A, B): Typically 315 bar (4500 psi)
- Maximum Operating Pressure (T): Typically 210 bar (3000 psi)
- Maximum Flow Rate: Approximately 120 L/min (32 US GPM)
- Hydraulic Fluid: Standard mineral oil based hydraulic fluids
- Design Number: 40
TOKIMEC DG4V-5-31B-M-PL-0V-6-40
Model:TOKIMEC DG4V-5-31B-M-PL-0V-6-40
