Product Description
TOYOOKI HD1-2WD-BCA-03B-WYD2

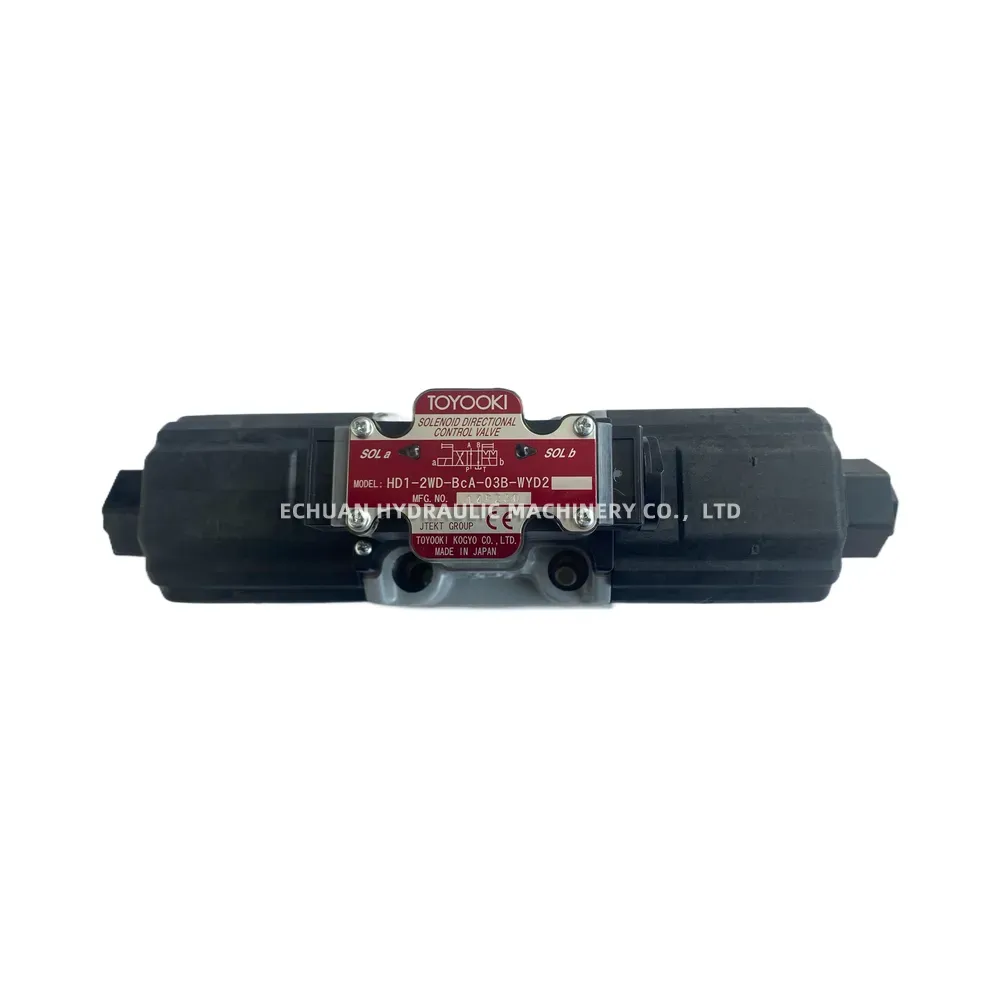

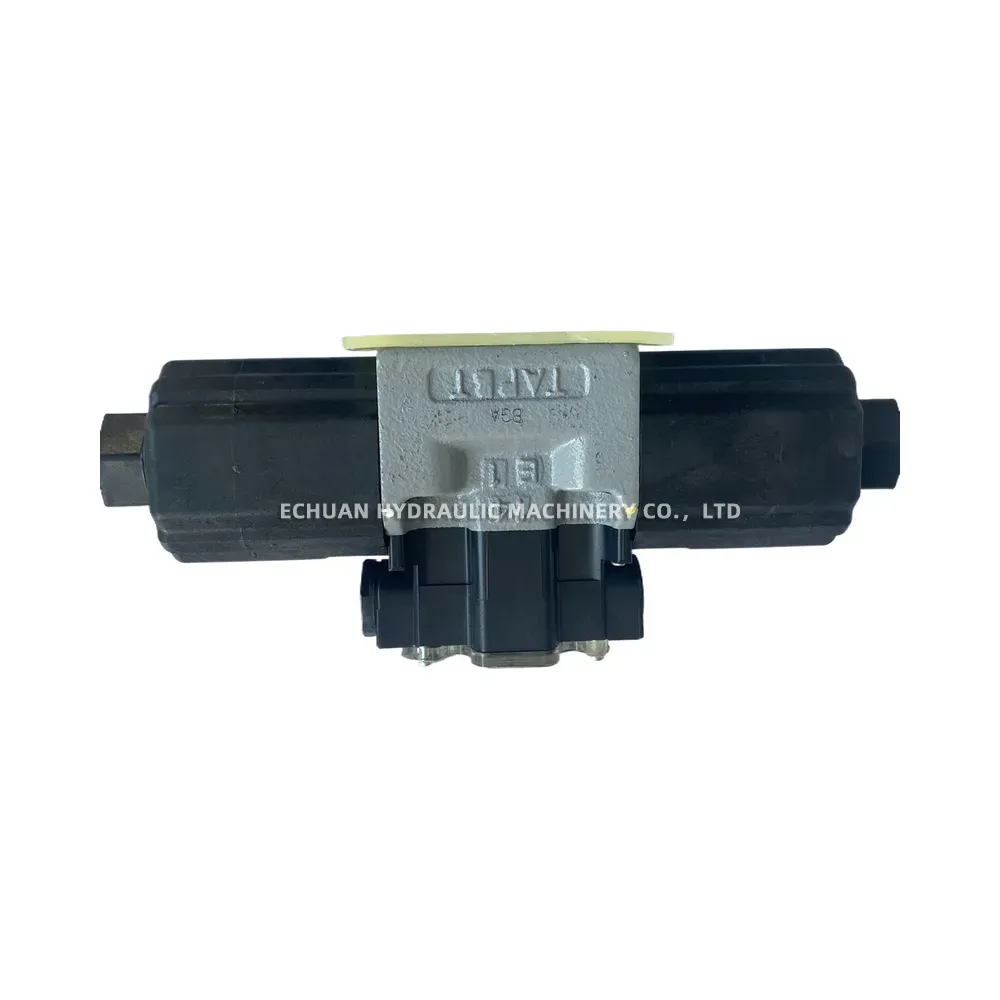

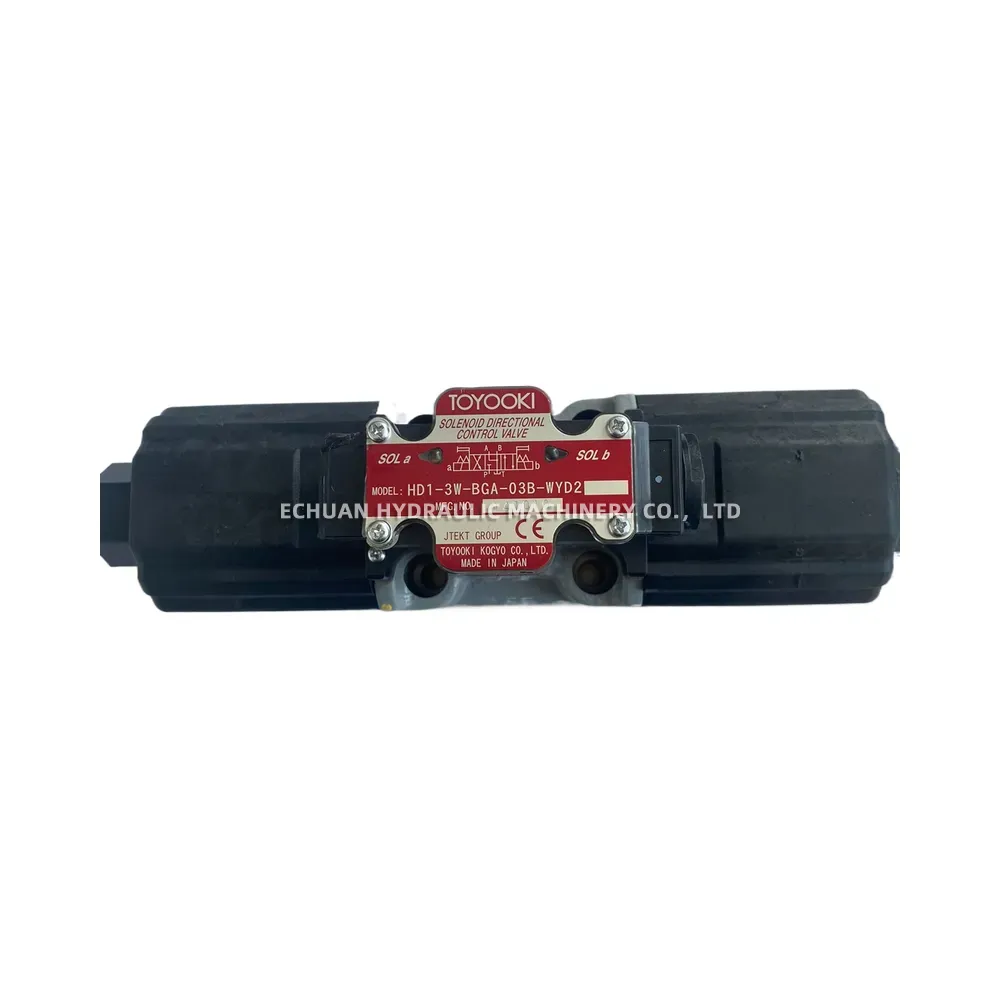

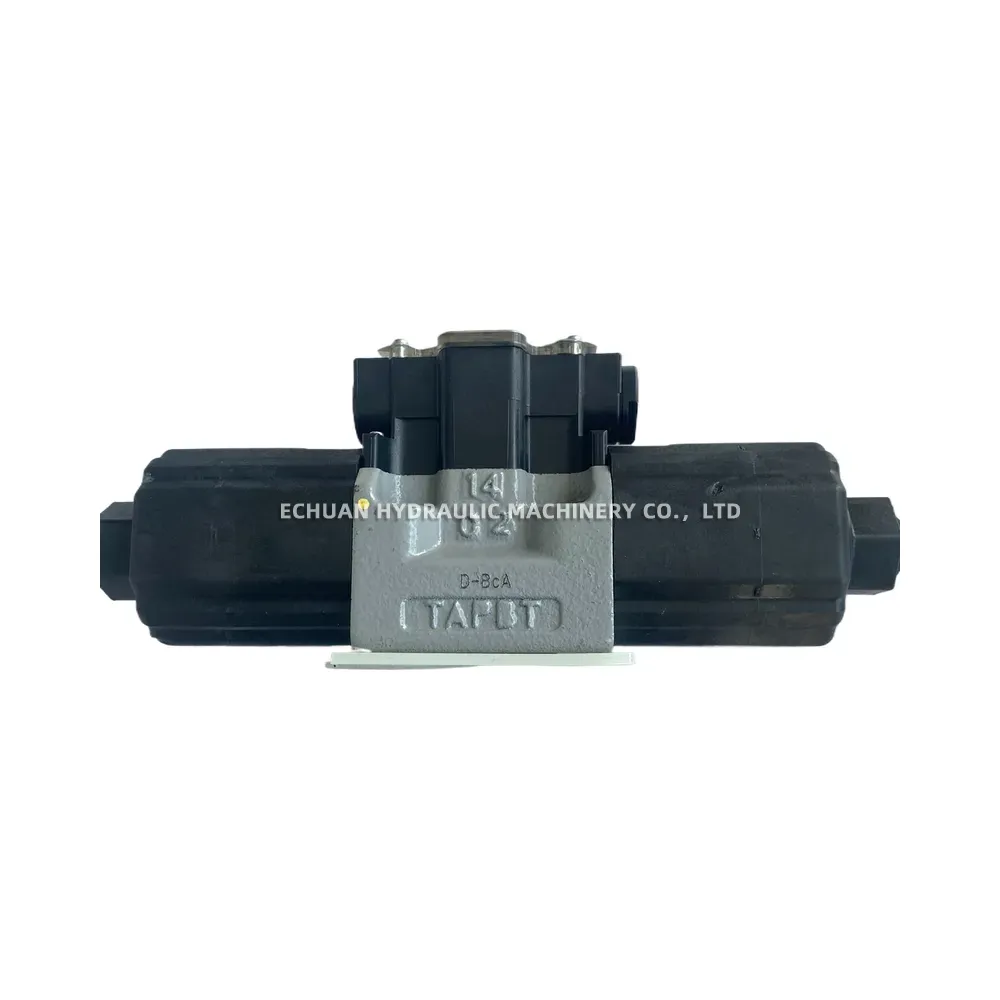

The TOYOOKI HD1-2WD-BCA-03B-WYD2 is a solenoid-operated directional control valve designed for hydraulic systems. As part of the HD1 series, this valve utilizes solenoid actuation to direct the flow of hydraulic fluid. This specific model is a size 03 (NG6/CETOP3) valve featuring double solenoids for operation. It is engineered for reliable performance in various industrial hydraulic applications requiring directional control.
Technical Specifications:
- Manufacturer: TOYOOKI KOGYO CO., LTD.
- Valve Type: Solenoid Operated Directional Control Valve
- Series: HD1
- Size: 03 (ISO 4401-03-02-0-94, NG6, CETOP 3)
- Actuation: Double Solenoid (WYD2)
- Operating Voltage: DC24V
- Electrical Connection: DIN 43650 Connector with Indicator Light
- Mounting Interface: ISO 4401-03 / CETOP RP121H R03 / NFPA D03
- Typical Max Operating Pressure: Up to 31.5 MPa (4568 PSI) or 35 MPa (5076 PSI) depending on specific configuration (Confirm with datasheet)
- Typical Max Flow Rate: Approx. 60 L/min (15.8 US GPM) (Confirm with datasheet)
- Spool Configuration Code: 2WD-BCA (Refer to manufacturer datasheet for specific flow path and function)
TOYOOKI HD1-2WD-BCA-03B-WYD2
Model:TOYOOKI HD1-2WD-BCA-03B-WYD2
| Brand | Toyooki |
|---|---|
| Model | HD1-2WD-BCA-03B-WYD2 |
| Part No. | TOYOOKI HD1-2WD-BCA-03B-WYD2 |
| Category | Hydraulic valves |
