Product Description

TOYOOKI HD3-2S-BcA-025B-WYR3

The TOYOOKI HD3-2S-BcA-025B-WYR3 is a high-performance, solenoid-operated directional control valve from the reliable HD3 series. It is engineered to precisely control the start, stop, and direction of fluid flow within a hydraulic system. This model features a single solenoid with a spring-offset design, ensuring the valve spool returns to its neutral position when the solenoid is de-energized. Built for durability and high-pressure applications, it conforms to the industry-standard NG6 (D03) mounting interface, allowing for easy integration and interchangeability. The valve is equipped with a DIN-style connector for simple and secure electrical installation and includes an indicator light and surge suppressor for enhanced safety and diagnostics, making it an ideal choice for various industrial machinery and automation applications.

Technical Specifications:

  • Valve Type: Solenoid Operated Directional Control Valve
  • Series: HD3
  • Valve Size: NG6 (D03), ISO 4401-03
  • Spool-Spring Arrangement: 2S (Single Solenoid, Spring Offset)
  • Solenoid Arrangement: B (Solenoid on port B side)
  • Max. Operating Pressure: 35 MPa (5075 PSI)
  • Max. Flow Rate: 80 L/min (21.1 GPM)
  • Rated Voltage (Code A): AC100V 50/60Hz, AC110V 60Hz
  • Electrical Connection (Code c): DIN 43650 Connector
  • Options (Code WYR3): With wiring box, indicator light, and surge suppressor

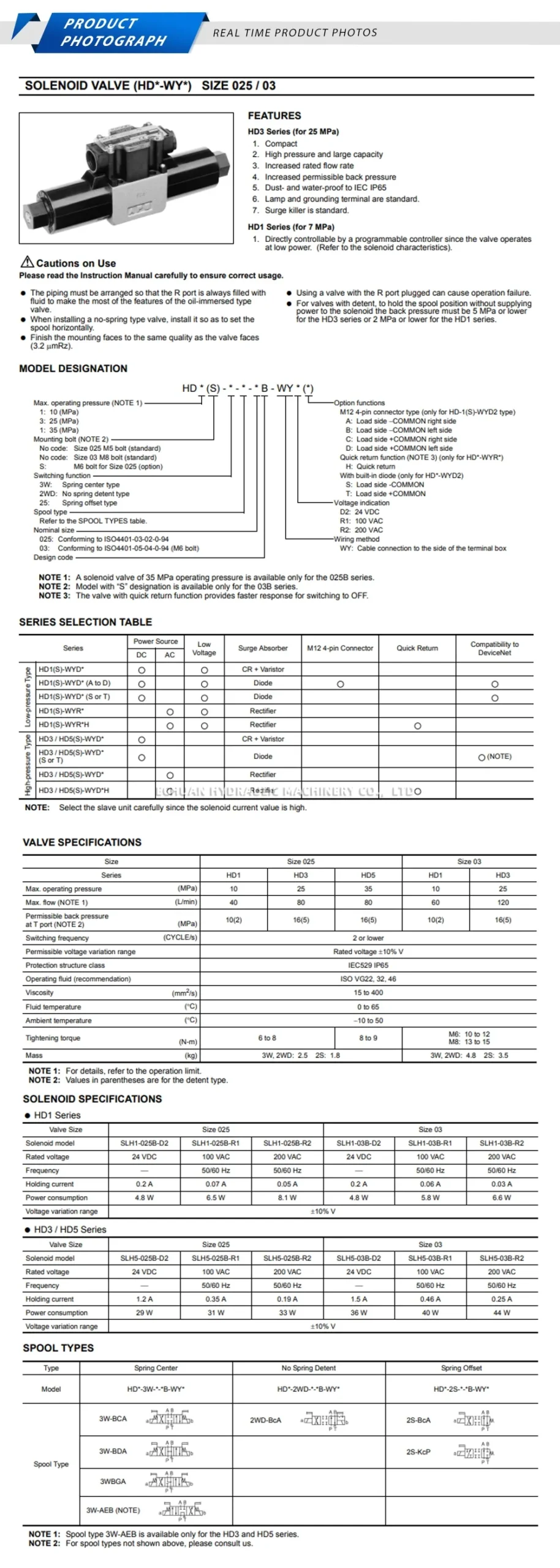

TOYOOKI HD3-2S-BcA-025B-WYR3 - Image 1

TOYOOKI HD3-2S-BcA-025B-WYR3 - Image 2

TOYOOKI HD3-2S-BcA-025B-WYR3 - Image 3

TOYOOKI HD3-2S-BcA-025B-WYR3 - Image 4

TOYOOKI HD3-2S-BcA-025B-WYR3 - Image 5

TOYOOKI HD3-2S-BcA-025B-WYR3 - Image 6

TOYOOKI HD3-2S-BcA-025B-WYR3

Model:TOYOOKI HD3-2S-BcA-025B-WYR3

BrandToyooki
ModelHD3-2S-BcA-025B-WYR3
Part No.TOYOOKI HD3-2S-BcA-025B-WYR3
CategoryHydraulic valves
