Product Description

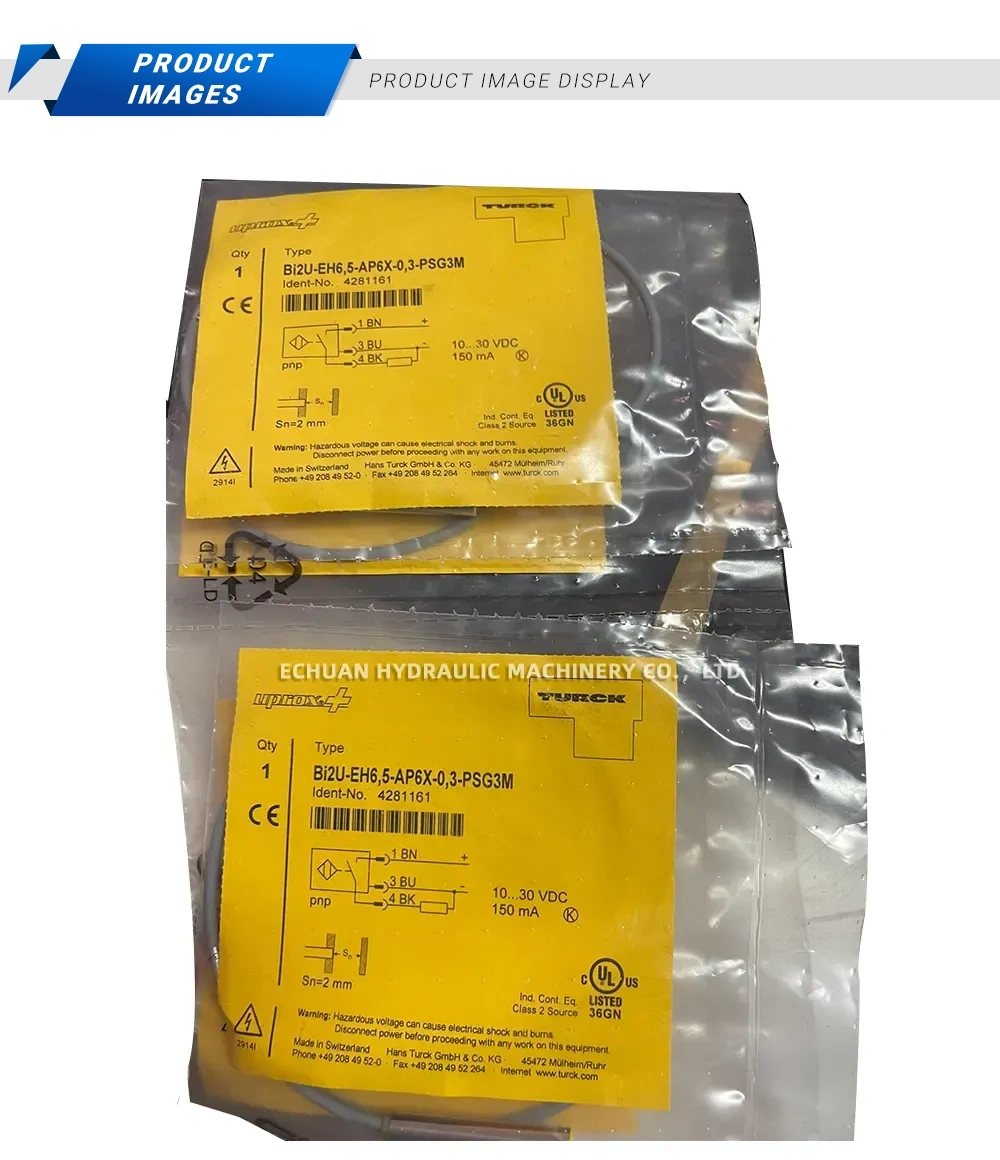

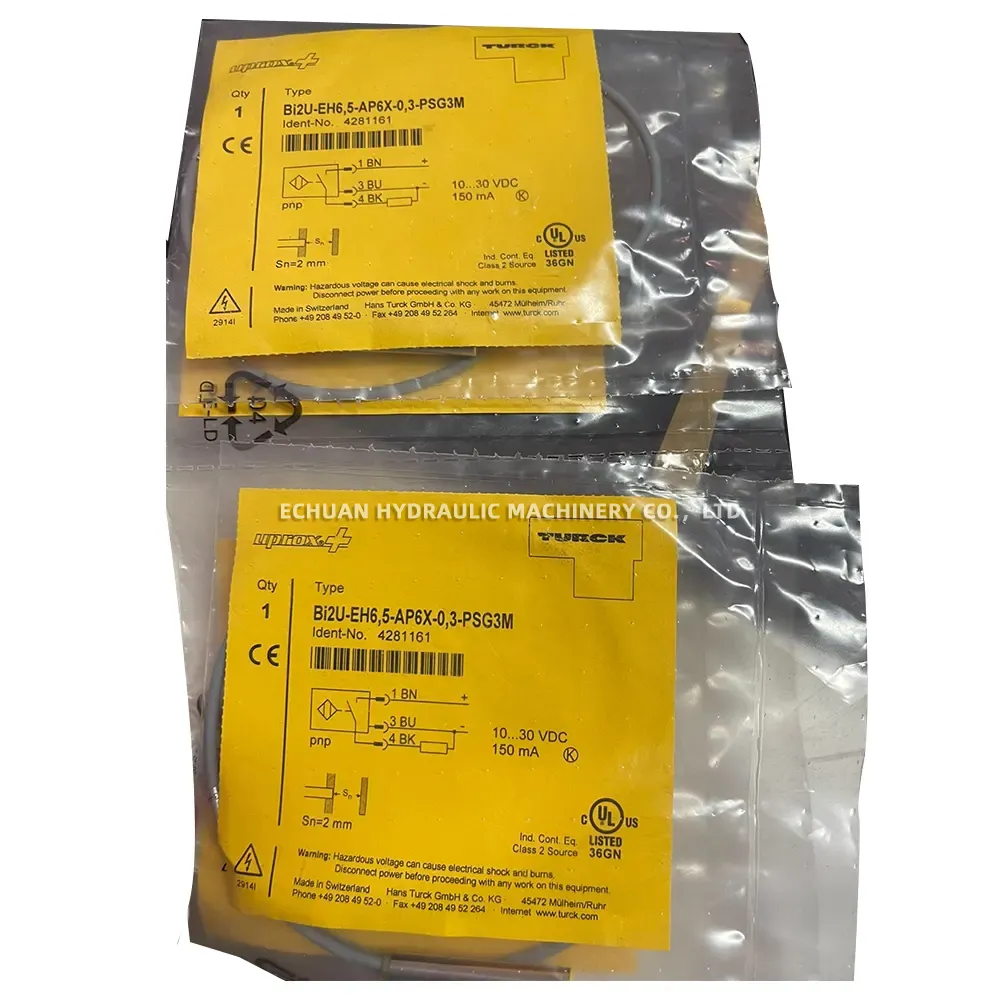

TURCK Bi2U-EH6,5-AP6X-0,3-PSG3M Inductive Proximity Sensor
The TURCK Bi2U-EH6,5-AP6X-0,3-PSG3M is a high-performance inductive proximity sensor from the uprox+ series, designed for reliable non-contact detection of all types of metallic objects in industrial automation environments. Its patented uprox+ technology ensures the same rated switching distance for all metals (Factor 1), eliminating the need for specific sensor adjustments. Housed in a compact, rectangular plastic housing, this sensor is ideal for applications with limited installation space. It features a 3-wire PNP switching output and connects via a short 0.3-meter pigtail cable with an M8 male connector, offering flexible and fast installation. With its high switching frequency and robust IP67 protection rating, this sensor delivers precision and durability for demanding tasks.
Technical Specifications:
- Model: Bi2U-EH6,5-AP6X-0,3-PSG3M
- Ident No.: 4281161
- Sensing Technology: Inductive, uprox+ Factor 1
- Rated Switching Distance (Sn): 2 mm (non-flush mountable)
- Operating Voltage: 10…30 VDC
- Output Function: 3-wire, PNP, Normally Open (NO)
- Rated Operational Current: ≤ 150 mA
- Housing: Rectangular, EH6.5 (25.4 x 10.5 x 6.5 mm), Plastic (PBT)
- Connection: 0.3m PVC cable with M8 x 1 male pigtail, 3-pin
- Protection Class: IP67
- Approvals: cULus Listed, CE
TURCK Bi2U-EH6,5-AP6X-0,3-PSG3M Inductive Proximity Sensor
Discover the TURCK Bi2U-EH6,5-AP6X-0,3-PSG3M uprox+ inductive sensor. This compact sensor provides a reliable 2mm sensing range for all metals, a 10-30 VDC operating voltage, and a 3-wire PNP output. Ideal for precise object detection in industrial automation.
