Product Description

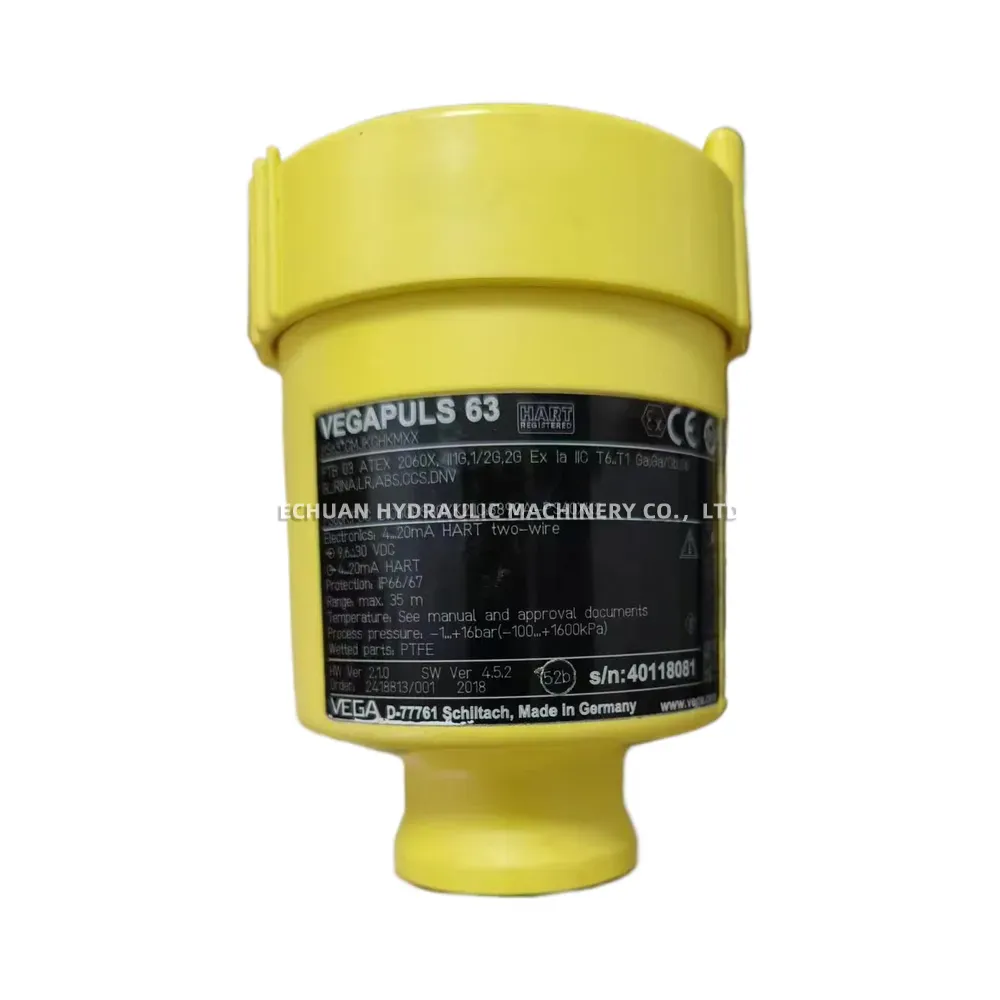

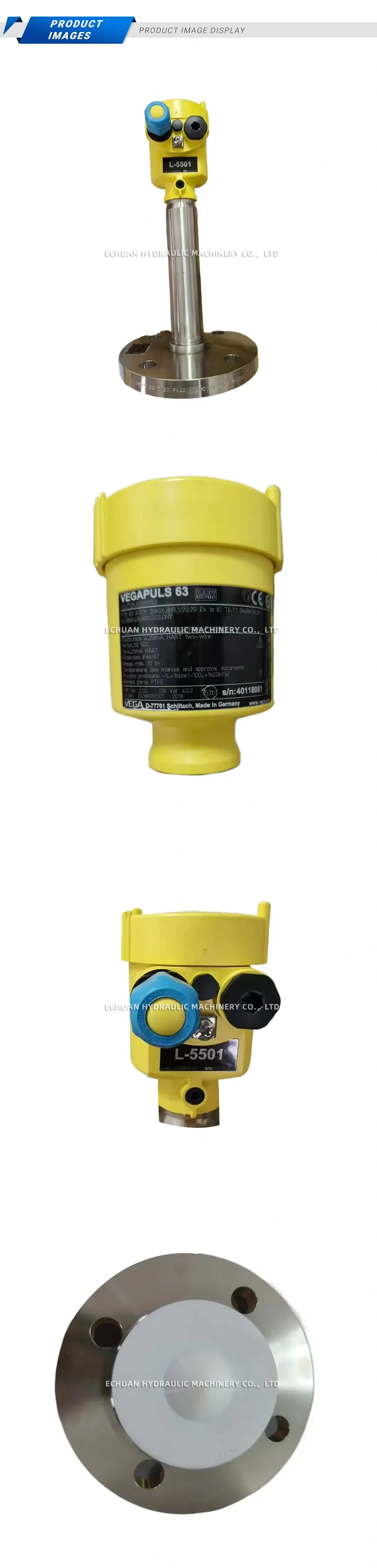

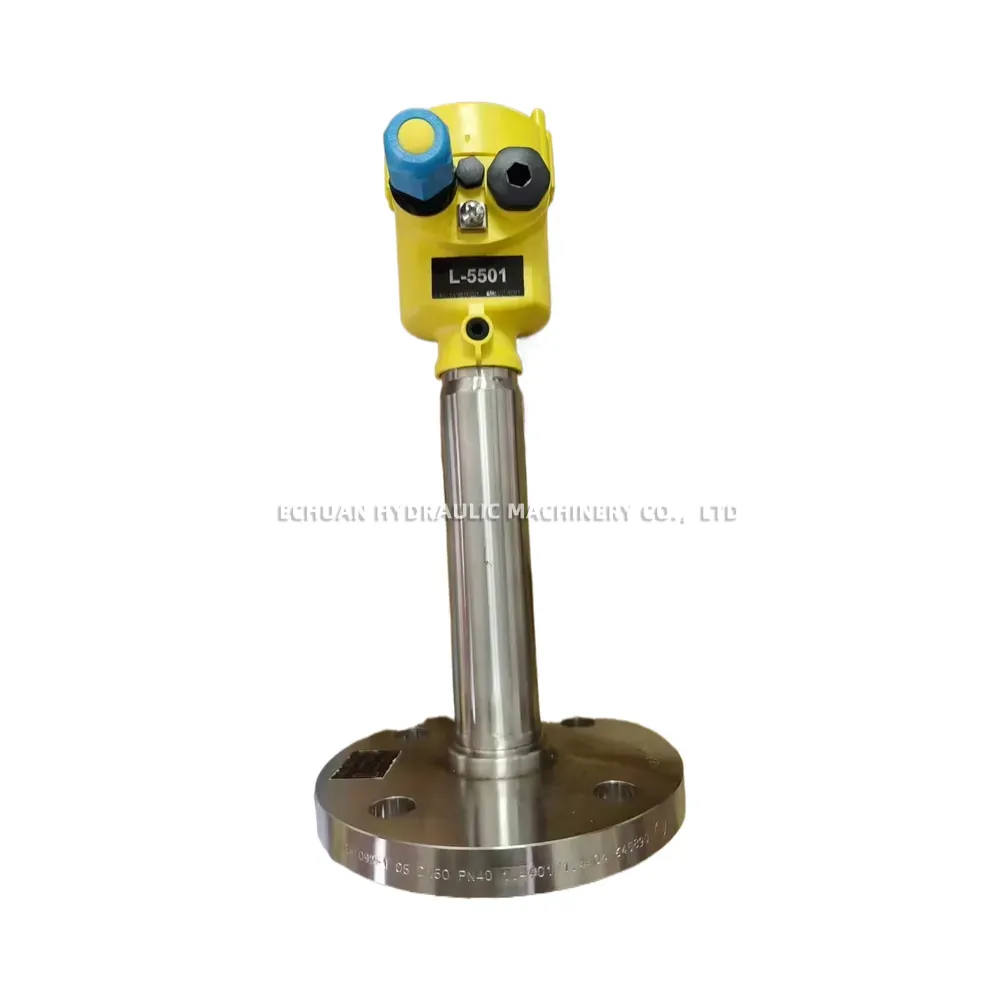

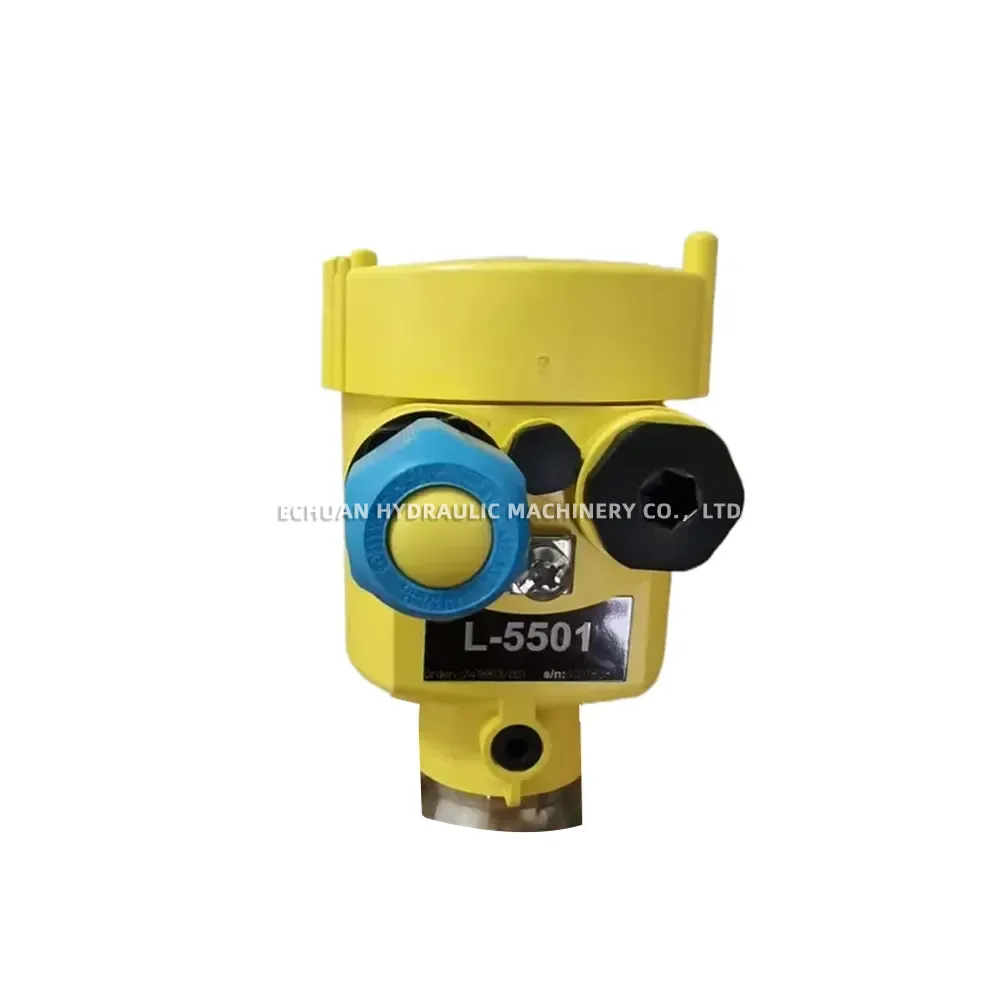

VEGA VEGAPULS 63 (PS63CMJKCHKMXX) Radar Level Transmitter
The VEGA VEGAPULS 63 (Order Code: PS63CMJKCHKMXX) is a highly reliable radar level transmitter designed for the continuous level measurement of aggressive liquids or applications requiring stringent chemical resistance. Manufactured in Germany, this advanced sensor features a fully encapsulated PTFE lens antenna and a robust DN50 PN40 flange connection, ensuring exceptional durability and compatibility with corrosive media. Operating on a two-wire 4…20 mA HART electronic system, it provides precise, non-contact measurements up to a maximum range of 35 meters. With an IP66/67 protection rating, ATEX intrinsic safety certification (Ex ia IIC T6..T1), and extensive marine approvals, the VEGAPULS 63 is engineered to deliver accurate, maintenance-free performance in demanding industrial, marine, and hazardous environments.
Technical Specifications:
- Brand / Model: VEGA VEGAPULS 63 (PS63CMJKCHKMXX)
- Measurement Range: Maximum 35 m
- Process Connection: Flange DN50 PN40

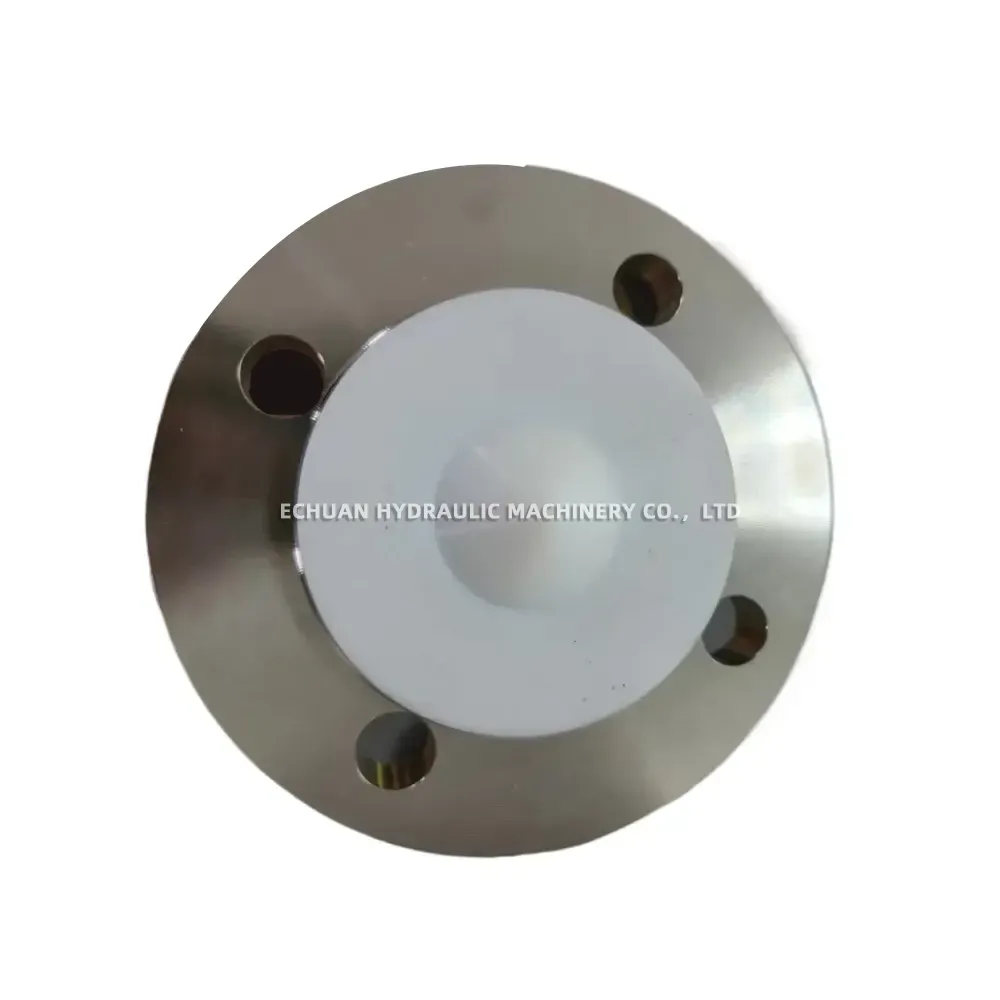

- Wetted Parts: PTFE (Fully encapsulated lens antenna)
- Signal Output: Two-wire 4…20 mA HART
- Supply Voltage: 9…30 V DC
- Process Pressure: -1…+16 bar (-100…+1600 kPa)
- Protection Rating: IP66 / IP67
- Hazardous Area Approvals: ATEX II 1G, 1/2G, 2G Ex ia IIC T6..T1 Ga/Ga/Gb
- Marine Approvals: BUREAU VERITAS, LR, ABS, CCS, DNV
- Country of Origin: Made in Germany

VEGA VEGAPULS 63 (PS63CMJKCHKMXX) Radar Level Transmitter / Level Sensor
Shop the VEGA VEGAPULS 63 (PS63CMJKCHKMXX) Radar Level Transmitter for precise, continuous liquid level measurement. Featuring a 35m range, PTFE wetted parts, 4-20mA HART output, and ATEX Ex ia certification, this German-made sensor is the ideal solution for aggressive liquids and hazardous industrial environments.
| Brand | Vega |
|---|---|
| Model | VEGAPULS 63 (PS63CMJKCHKMXX) |
| Part No. | 1027461163045 |
| Category | Electrical |
