Product Description

Vickers SV13-20-C-0-00

The Vickers SV13-20-C-0-00 is a high-performance, two-way, two-position, normally closed solenoid-operated screw-in cartridge valve. Designed for reliability in demanding hydraulic circuits, this pilot-operated poppet-type valve effectively blocks flow from port 2 to port 1 when de-energized. Upon energizing the solenoid, the poppet shifts to allow flow from port 2 to 1. Its robust construction and efficient design make it an excellent choice for load-holding, blocking, and flow control applications in both industrial and mobile hydraulic systems.

Technical Specifications:

  • Valve Type: Solenoid Operated, Screw-in Cartridge Valve

  • Configuration: 2-Way, 2-Position, Normally Closed (NC)

  • Maximum Operating Pressure: 350 bar (5000 psi)

  • Maximum Flow Rate: 227 l/min (60 USgpm)

  • Cavity: VC20-2

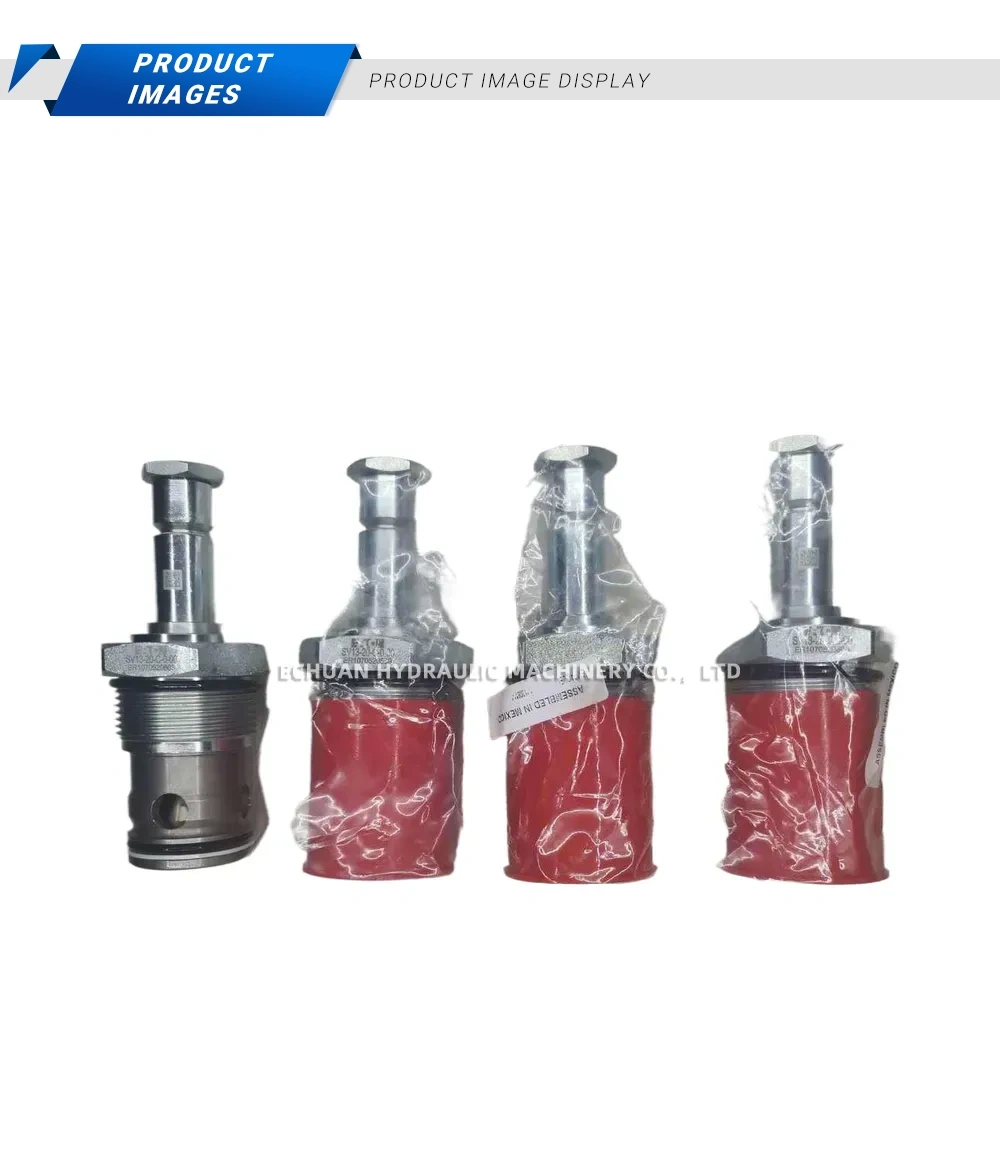

Vickers SV13-20-C-0-00 Description

Vickers SV13-20-C-0-00

Shop the Vickers SV13-20-C-0-00, a reliable 2-way normally closed solenoid operated hydraulic cartridge valve. Engineered for high-pressure systems up to 350 bar, ensuring precise flow control.
