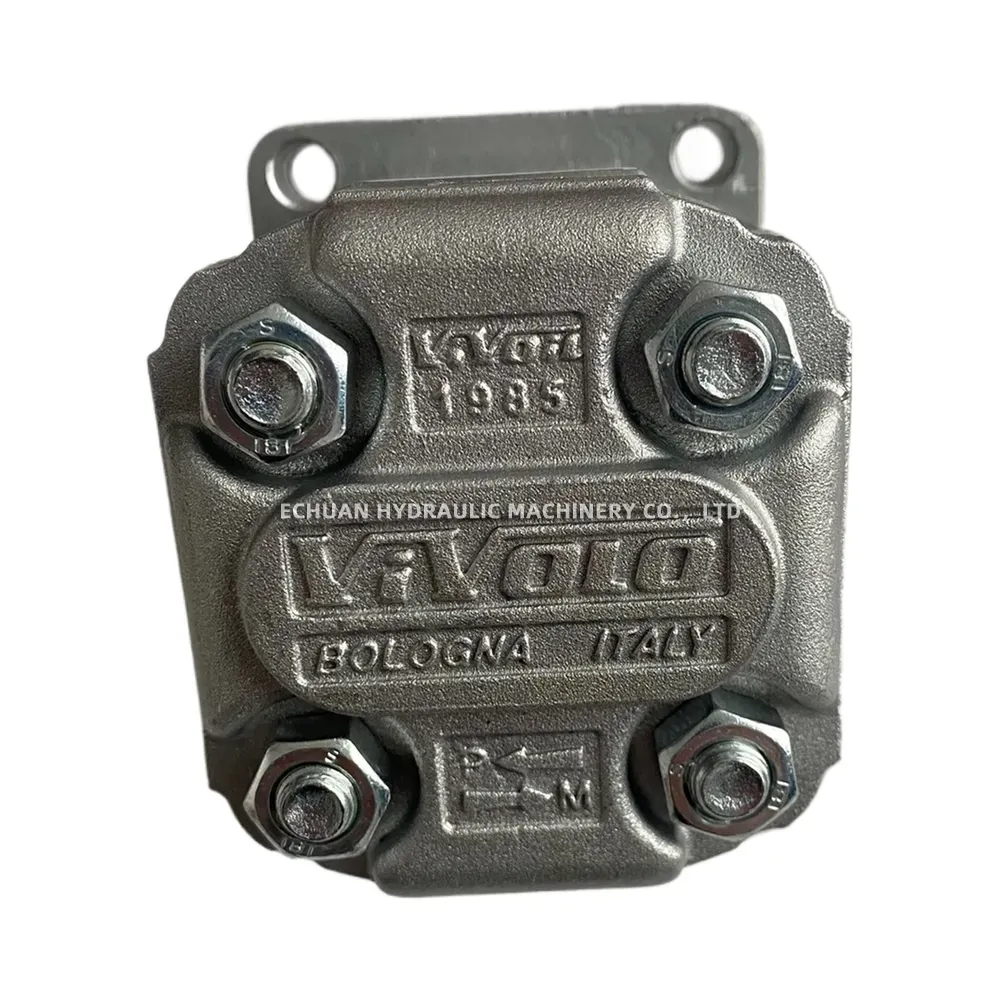

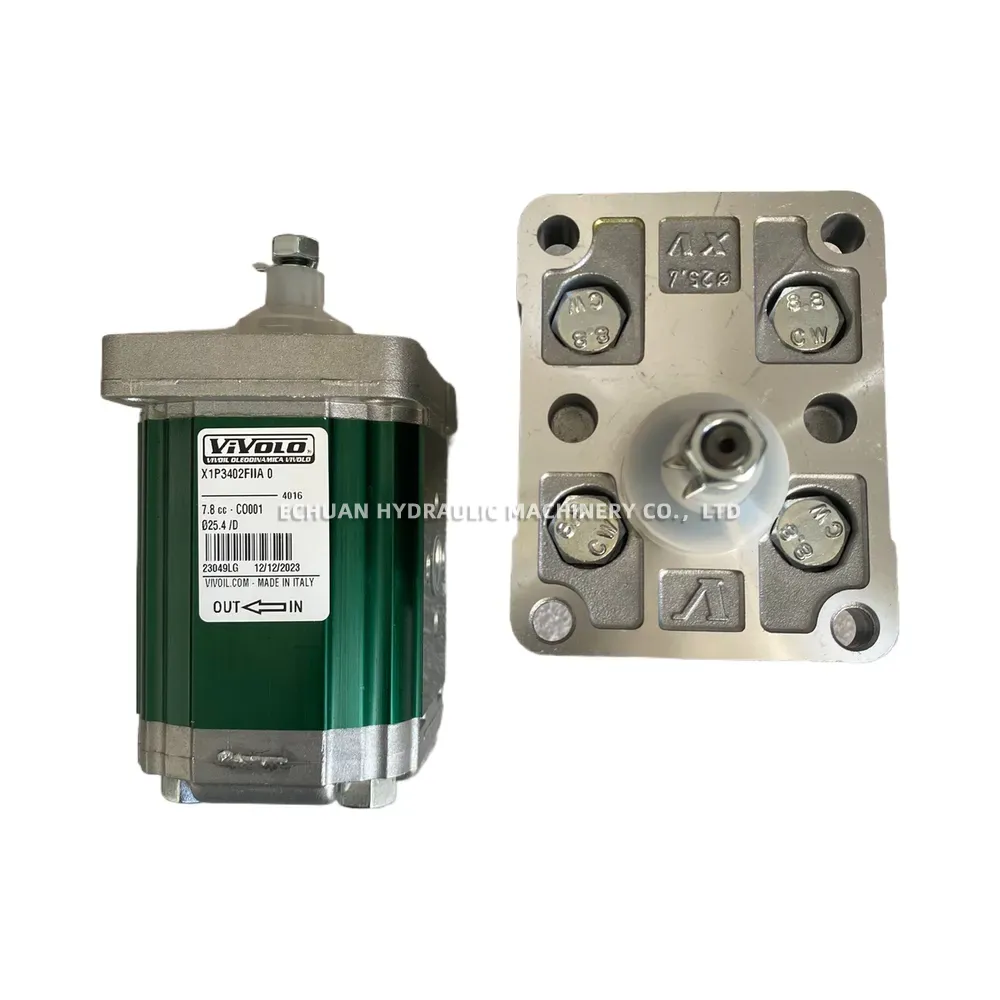

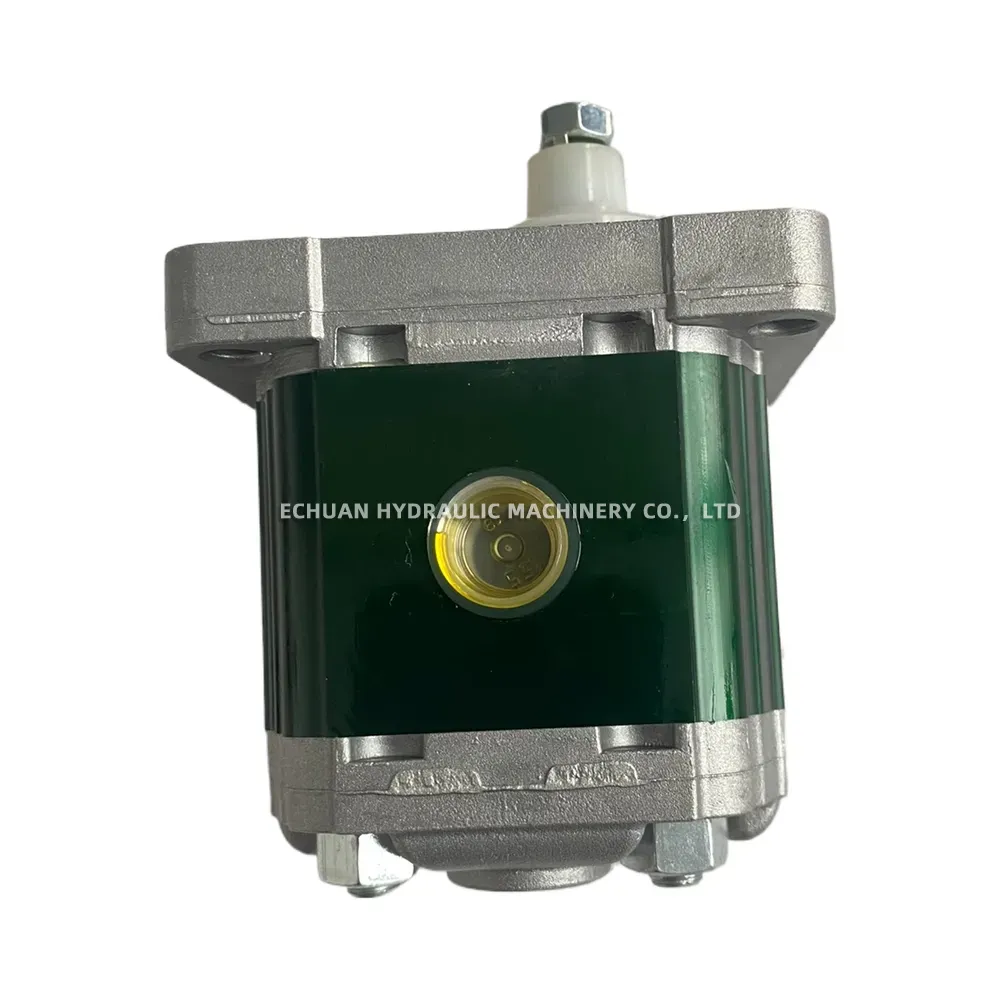

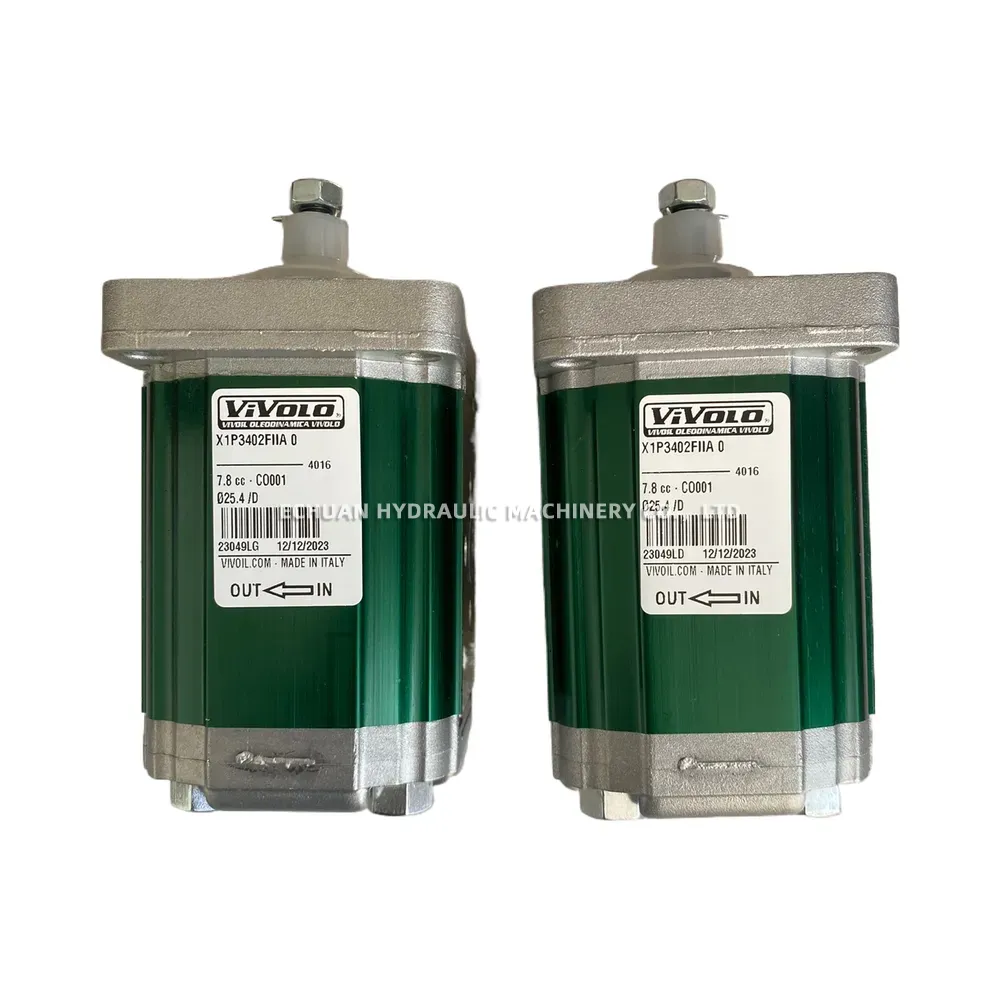

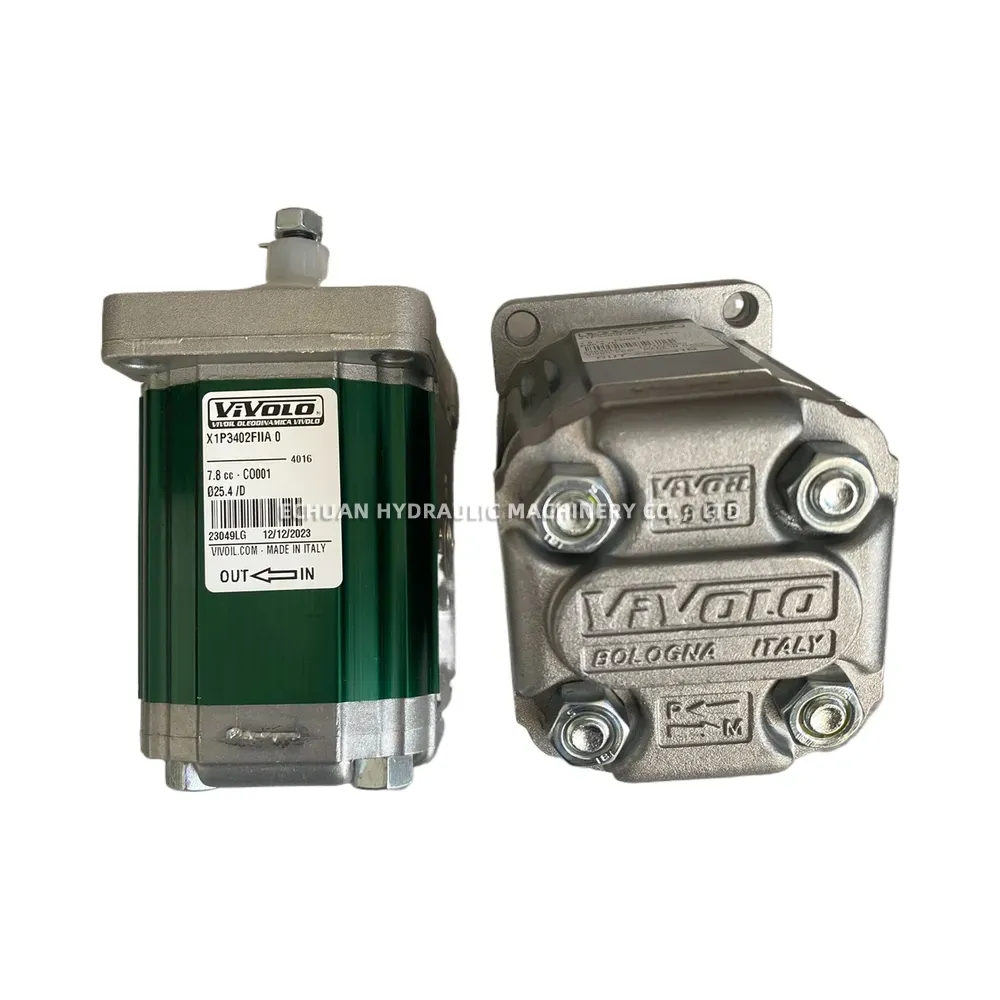

VIVOLO X1P3402FIIA0 Gear Pump
The VIVOLO X1P3402FIIA0 is a Group 1 external gear pump manufactured by Vivoil Oleodinamica Vivolo S.p.A. It features an aluminum body and is designed for reliability and efficiency in various hydraulic systems. This specific configuration includes a standard European flange, a tapered shaft, and GAS threaded ports, suitable for applications requiring clockwise rotation.
Technical Specifications:
- Manufacturer: Vivoil Oleodinamica Vivolo S.p.A.
- Pump Group: 1
- Displacement: 3.4 cm³/rev
- Max Continuous Pressure (P1): Approx. 230 bar (3335 psi)
- Max Intermittent Pressure (P2): Approx. 250 bar (3625 psi)
- Max Peak Pressure (P3): Approx. 270 bar (3915 psi)
- Flange Type: Standard European 4-Bolt (F)
- Shaft Type: Tapered 1:8 (I)
- Port Type: GAS Threaded – European Standard (I)
- Rotation: Clockwise (A)
- Seals: Standard NBR (0)
- Body Material: Aluminum
VIVOLO X1P3402FIIA0
Model:VIVOLO X1P3402FIIA0
| Brand | Vivolo |
|---|---|
| Model | X1P3402FIIA0 |
| Part No. | VIVOLO X1P3402FIIA0 |
| Category | Hydraulic pumps |
