Product Description

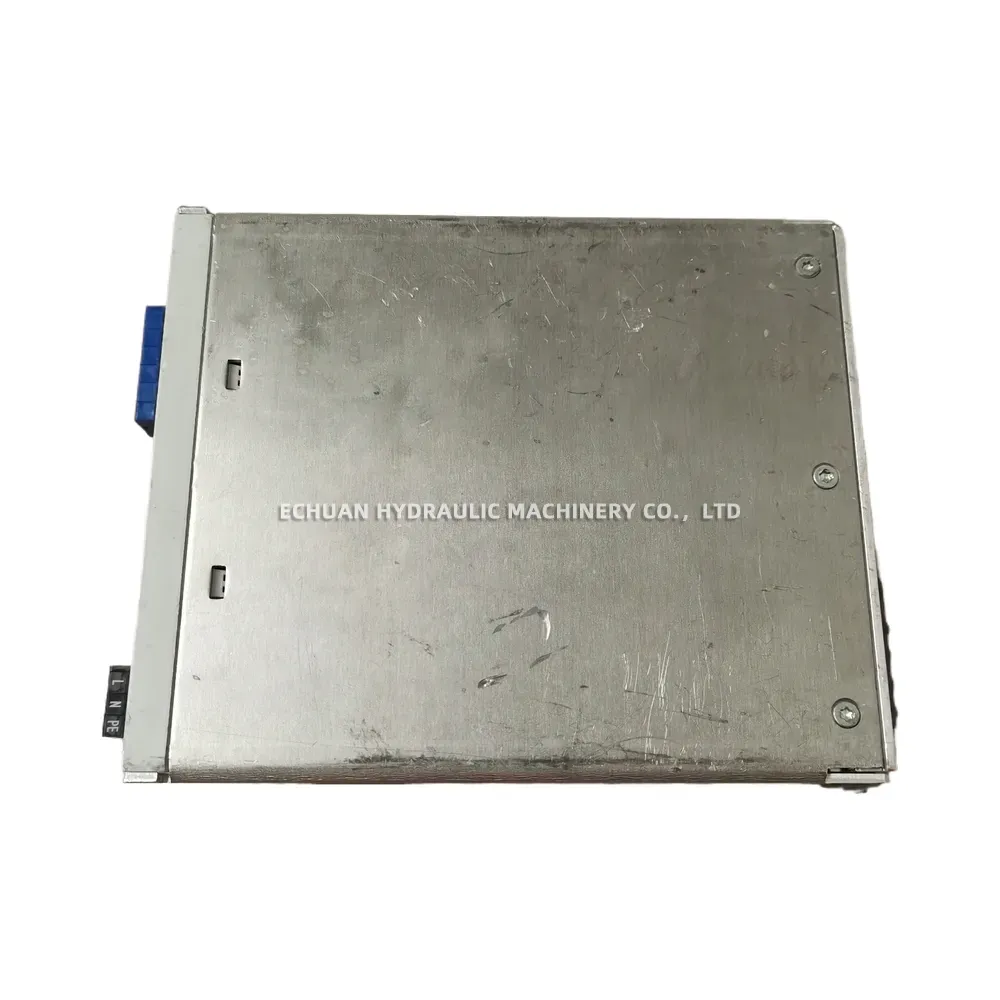

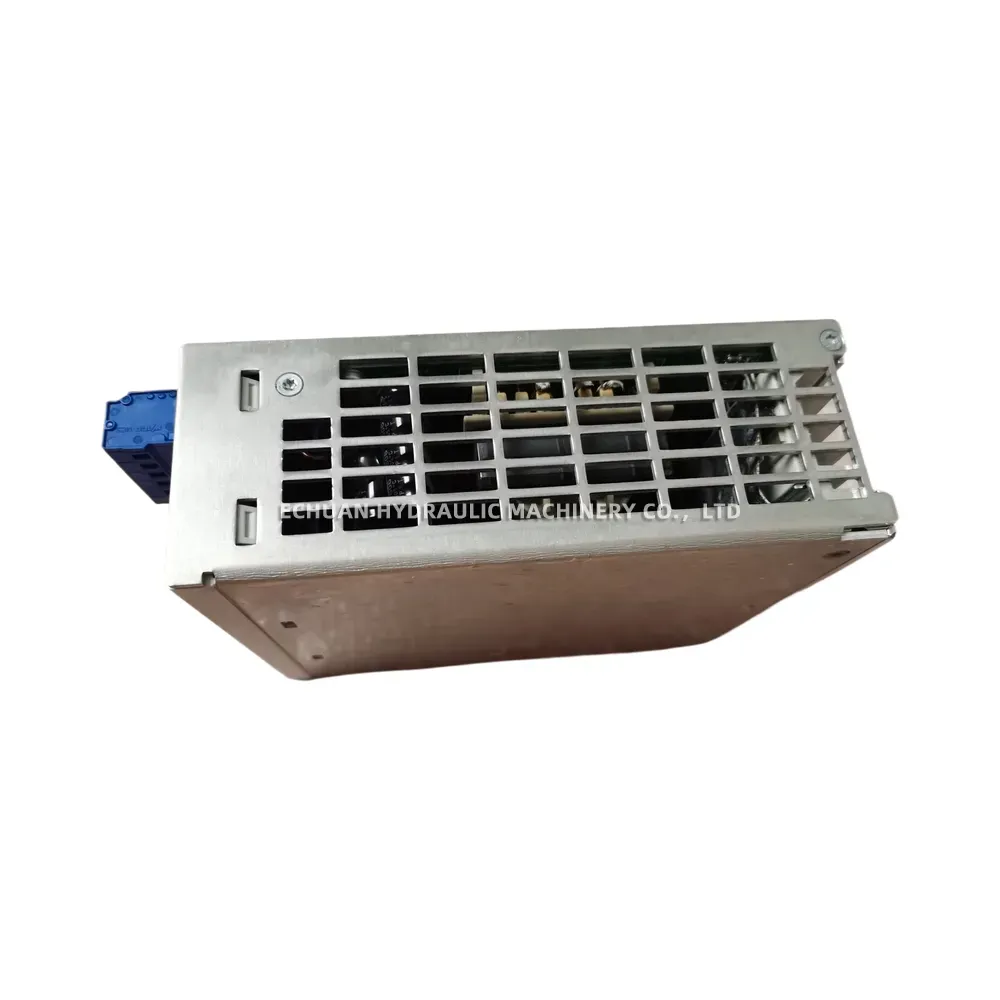

Wago 787-1633

The Wago 787-1633 is a robust and efficient switched-mode power supply unit from the EPSITRON® ECO Power series. Designed for DIN-rail mounting, it delivers a stable 24 VDC output at 10 A, making it ideal for a wide range of industrial control and automation applications. Its compact design and cost-effectiveness make it a practical choice for installations where space and budget are key considerations. The 787-1633 features overload and short-circuit protection, ensuring reliable operation and safeguarding connected equipment. It also includes a DC O.K. LED indicator for quick status checks.

Technical Specifications:

Nominal Output Voltage: DC 24 V
Output Current: 10 A
Nominal Output Power: 240 W
Input Voltage Range (AC): AC 85 … 264 V (Nominal: AC 100 … 240 V)
Frequency Range: 47 … 63 Hz
Efficiency (typical): 88 %
Mounting Type: DIN-35 rail
Connection Technology: CAGE CLAMP®
Signaling: DC O.K. (LED green)
Protection Type: IP20
Operating Temperature Range: -10 °C … +70 °C (derating: 2.5 %/K > 55 °C)
Dimensions (W x H x D): 60 mm x 130 mm x 130 mm (2.362 inch x 5.118 inch x 5.118 inch)
Standards/Specifications: EN 61000-6-2, EN 61000-6-4, EN 61204-3, UL 508, UL 60950-1
