Product Description

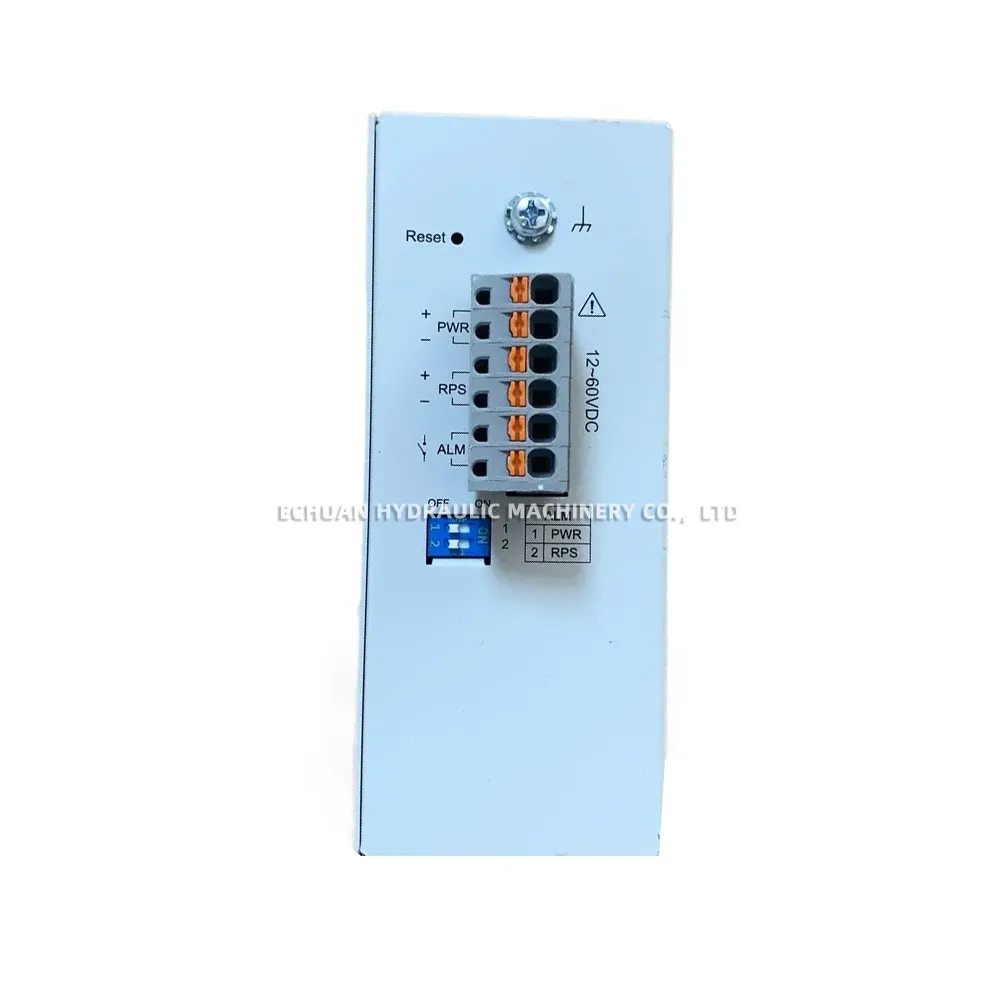

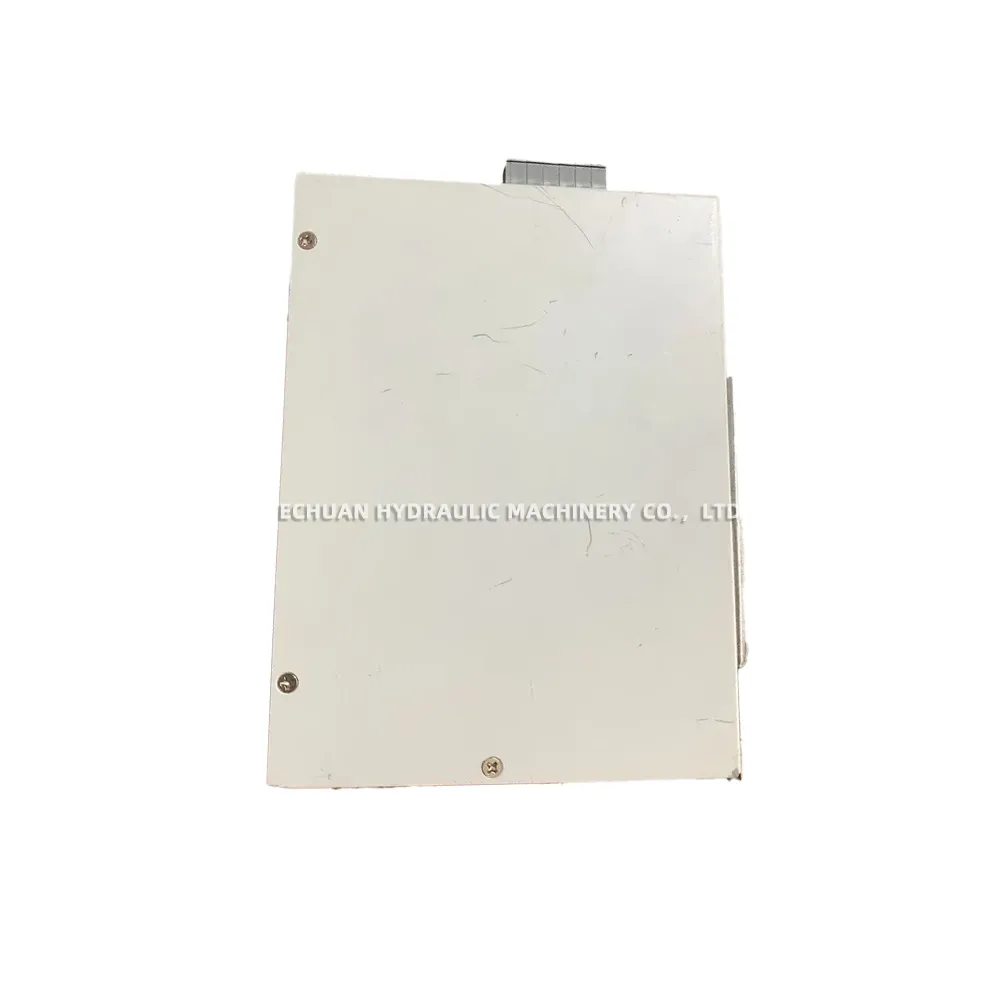

WAGO 852-1816/010-000
The WAGO 852-1816/010-000 is a PROFINET IO Advanced Fieldbus Coupler designed for high-speed industrial communication. It seamlessly connects the modular WAGO-I/O-SYSTEM to a PROFINET network, supporting both Real-Time (RT) and Isochronous Real-Time (IRT) communication for time-critical applications. This coupler features an integrated 2-port switch, enabling the easy creation of line topologies without requiring additional network hardware. Configuration is performed using a GSDML file, and it supports a wide range of diagnostic functions, making it a robust and reliable solution for factory automation, process control, and machine building.
Technical Specifications:
- Communication Protocol: PROFINET IO (RT/IRT)
- Baud Rate: 100 Mbit/s
- Fieldbus Connection: 2 x RJ-45 (Integrated Switch)
- System Supply Voltage: 24 VDC (-25 % … +30 %)
- Max. Number of I/O Modules: 64
- PROFINET Conformance Class: C
- Operating Temperature: 0 °C to +55 °C
- Protection Type: IP20
WAGO 852-1816/010-000
Shop the WAGO 852-1816/010-000, a high-performance PROFINET IO Advanced Fieldbus Coupler with an integrated 2-port switch. Supports RT/IRT communication for up to 64 I/O modules, perfect for demanding industrial automation tasks.
| Brand | Wago |
|---|---|
| Model | 852-1816/010-000 |
| Category | Electrical |
