Product Description

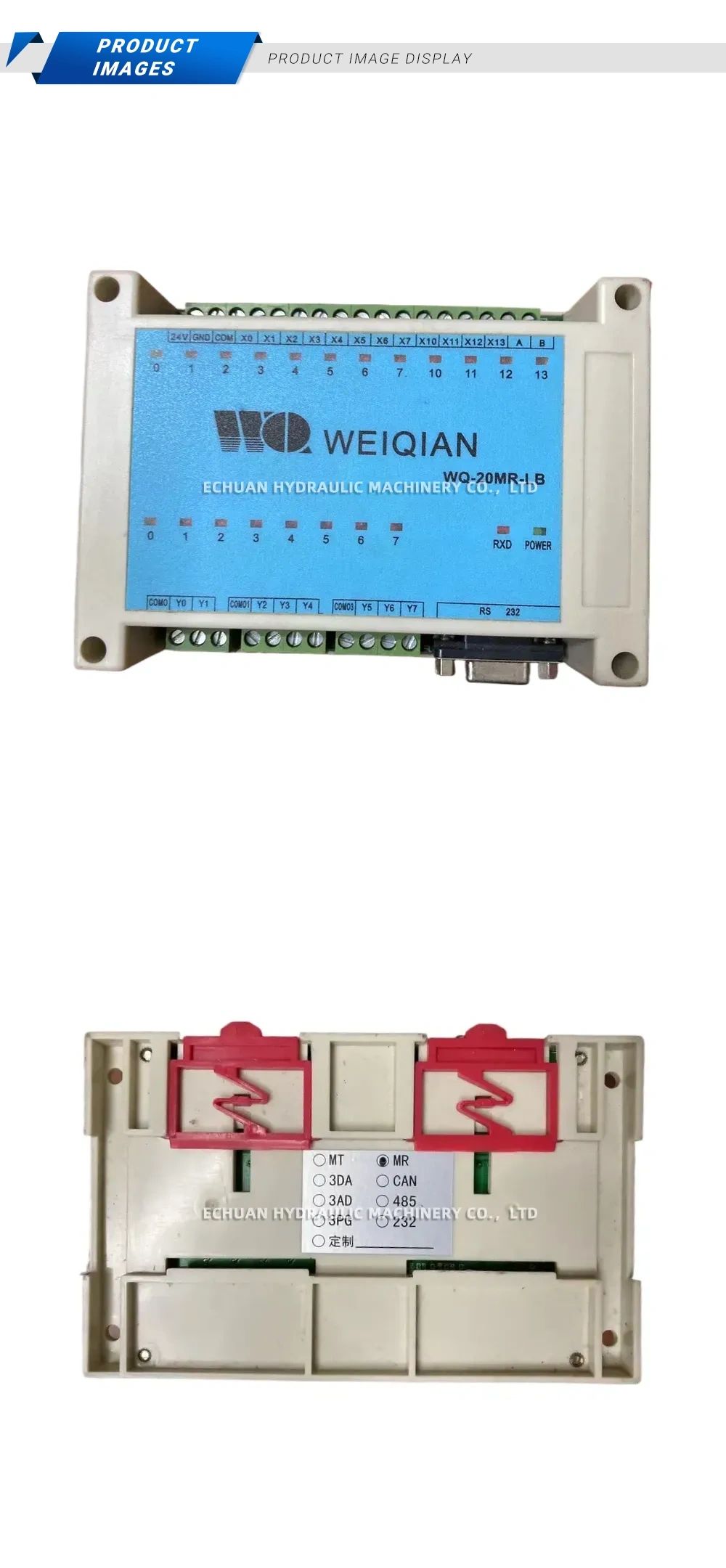

WEIQIAN WQ-20MR-LB Programmable Logic Controller (PLC) Module

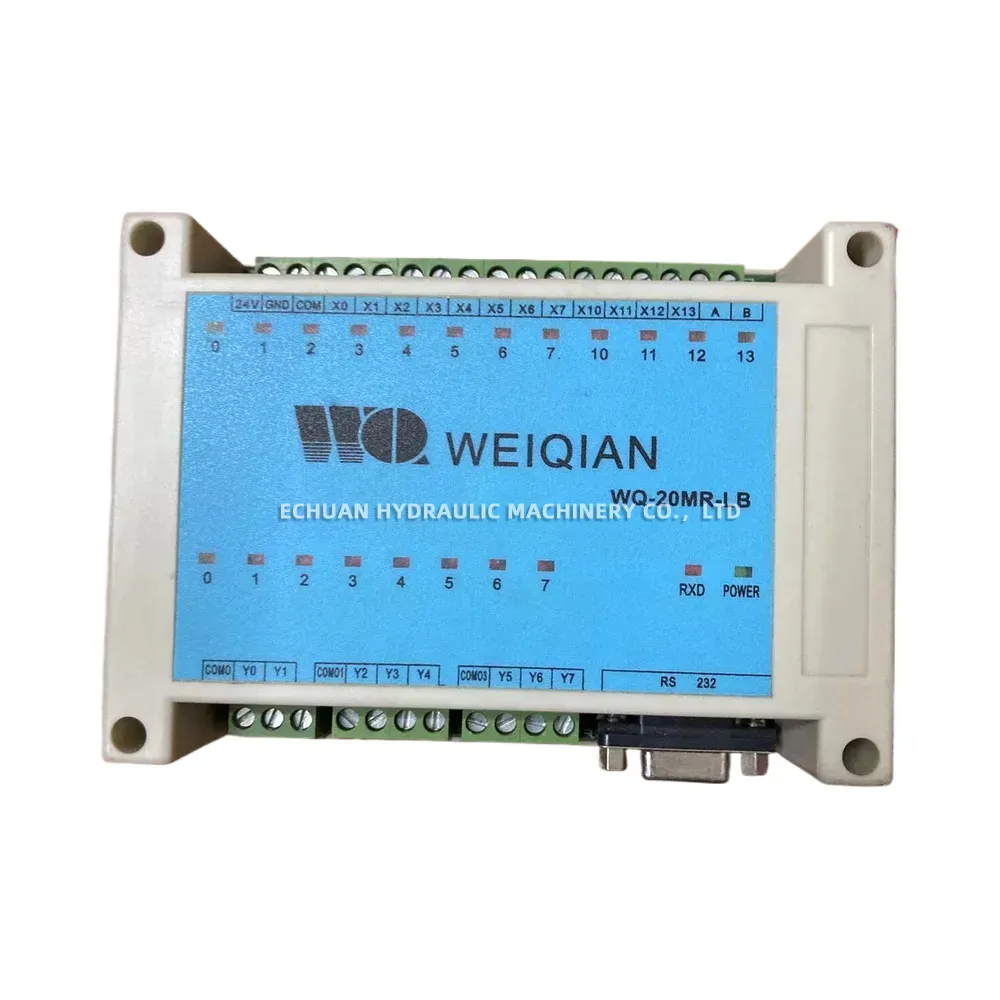

The WEIQIAN WQ-20MR-LB is a compact, high-performance Programmable Logic Controller (PLC) module engineered for efficient industrial automation and machinery control. This mini PLC features a 20-point I/O configuration, comprising 12 digital inputs and 8 relay outputs, delivering versatile and robust control for a wide variety of applications. Operating on a reliable 24V DC power supply, the unit is equipped with an RS232 communication interface via a standard DB9 connector, as well as A/B terminals for seamless network integration. Designed with user convenience and industrial durability in mind, it includes clear LED indicators for RXD, POWER, and individual I/O statuses for real-time monitoring. The secure screw-type terminal blocks and DIN-rail mountable housing ensure quick, secure, and organized installation in any standard control cabinet.
Technical Specifications:
- Brand: WEIQIAN
- Model: WQ-20MR-LB
- Power Supply: 24V DC (Terminals: 24V, GND, COM)
- Total I/O Points: 20 Points
- Digital Inputs: 12 Points (X0-X7, X10-X13)
- Digital Outputs: 8 Points, Relay Output Type MR (Y0-Y7)
- Communication Interfaces: RS232 (DB9 connector) and A/B terminals
- Status Indicators: RXD, POWER, and numbered I/O status LEDs

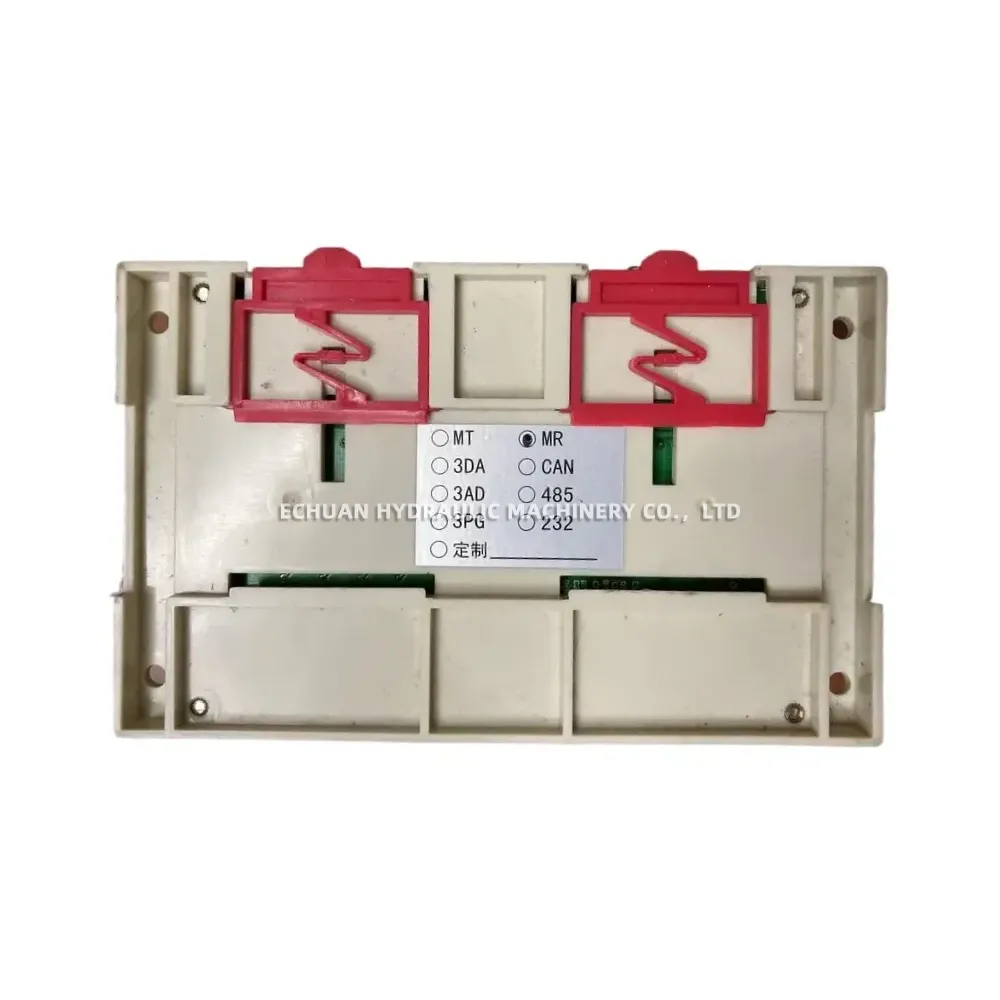

- Mounting & Connection: DIN-rail mountable housing with secure screw-type terminal blocks
WEIQIAN WQ-20MR-LB Programmable Logic Controller (PLC) Module
Optimize your industrial automation systems with the WEIQIAN WQ-20MR-LB Mini PLC module. Featuring 20 I/O points (12 digital inputs, 8 relay outputs), 24V DC power, and RS232 communication, this compact, DIN-rail mountable controller is a cost-effective and reliable solution for diverse machinery control applications.
| Brand | WEIQIAN |
|---|---|
| Model | WQ-20MR-LB |
| Part No. | 711396902224 |
| Category | Electrical |
