Product Description

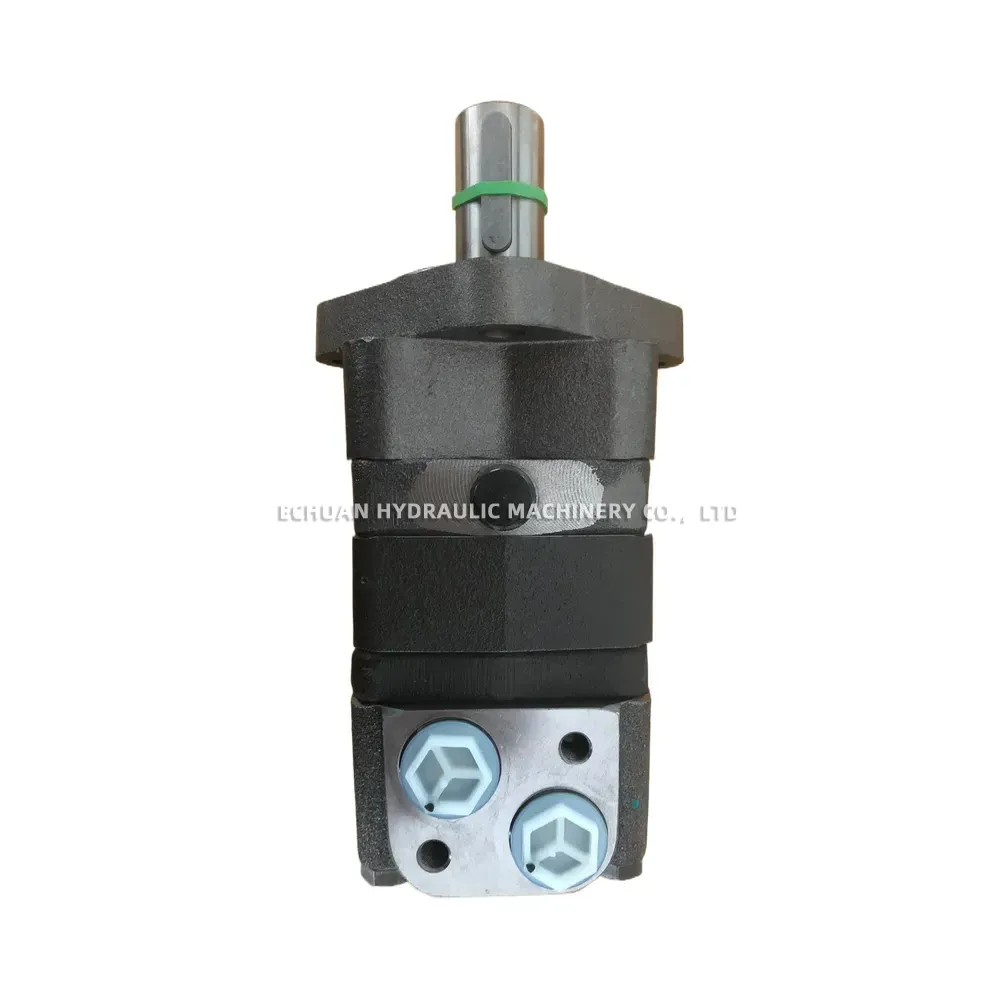

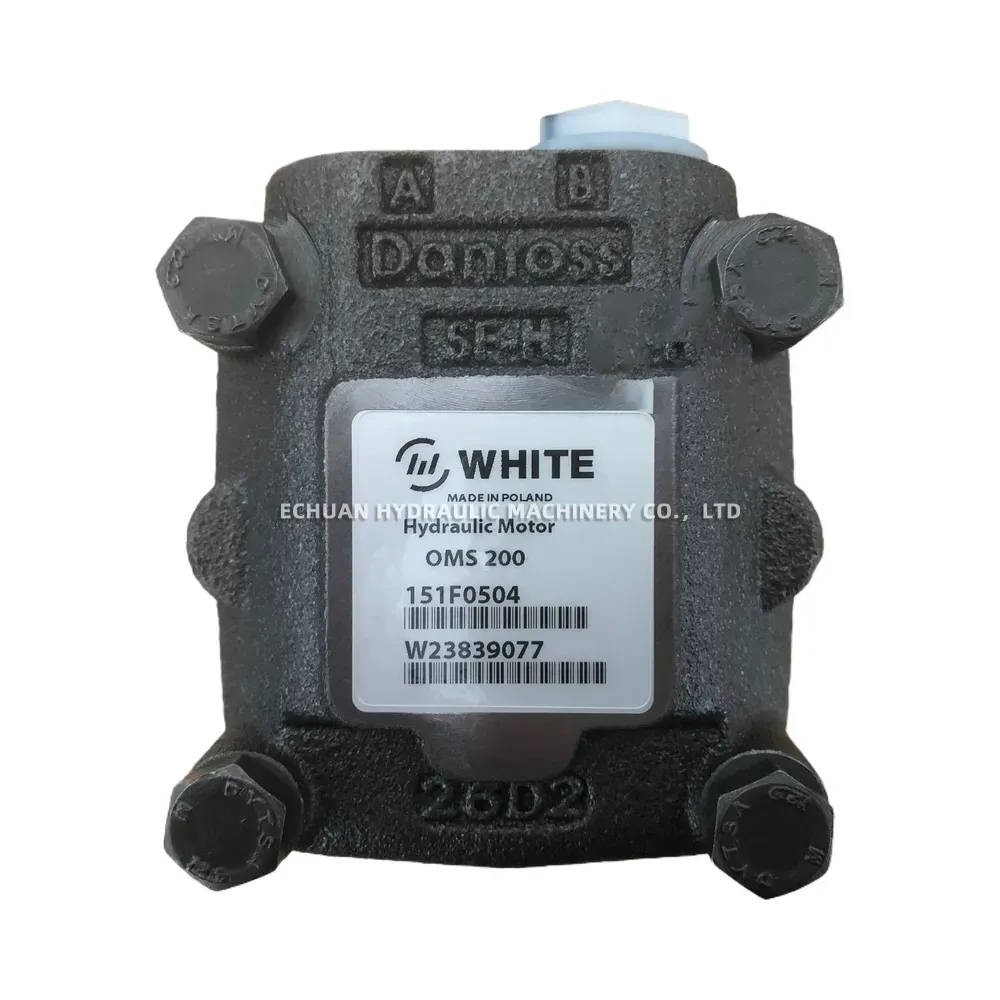

WHITE OMS200 151F0504 Hydraulic Motor
The WHITE OMS200 151F0504 is a medium-duty orbital hydraulic motor, part of the well-regarded OMS series originally from White Drive Products (now Danfoss). Characterized by its compact design and robust construction, the OMS 200 offers a good balance between size and power. It features a gerotor/geroller design which ensures smooth operation, high starting torque, and reliable performance across various applications such as agricultural machinery, construction equipment, conveyors, machine tools, and more. This specific model (151F0504) comes with specific shaft, port, and mounting configurations.

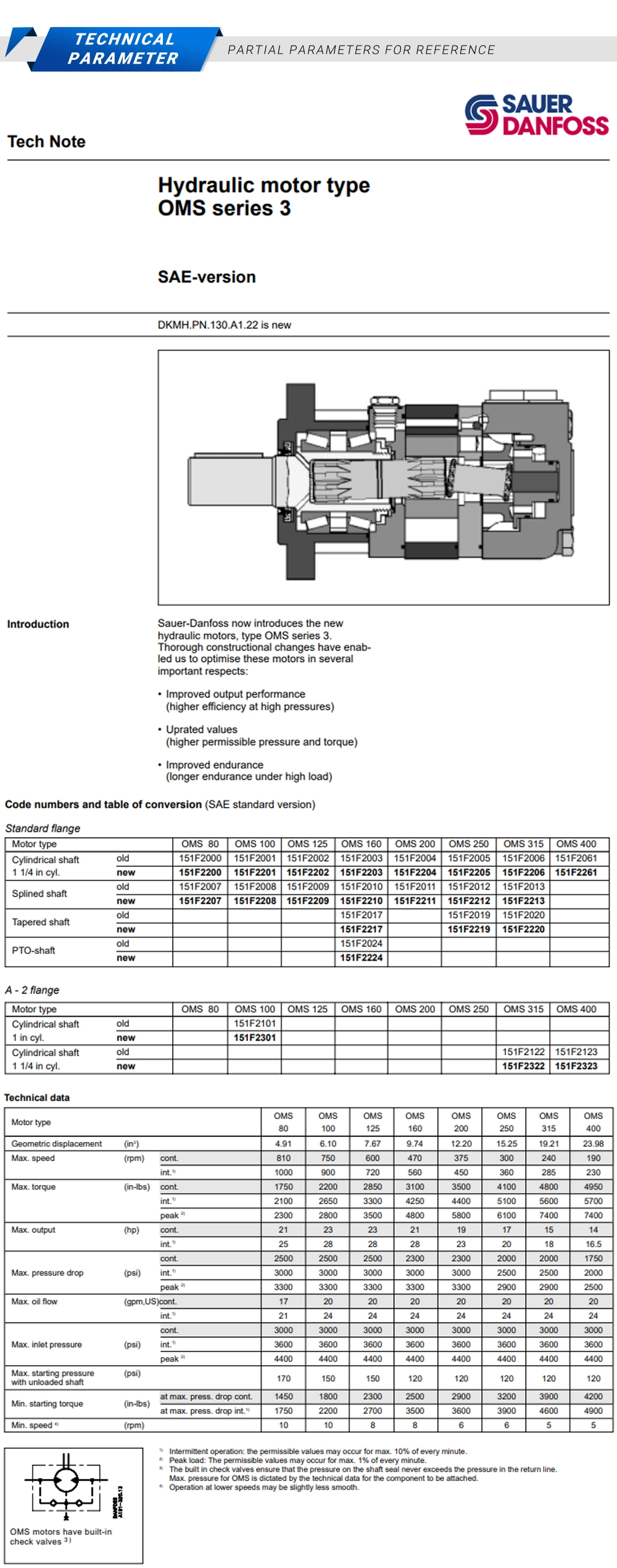

Technical Specifications:
- Part Number: 151F0504
- Motor Series: OMS (Orbital Motor)
- Displacement: 200 cm³/rev [12.20 in³/rev]

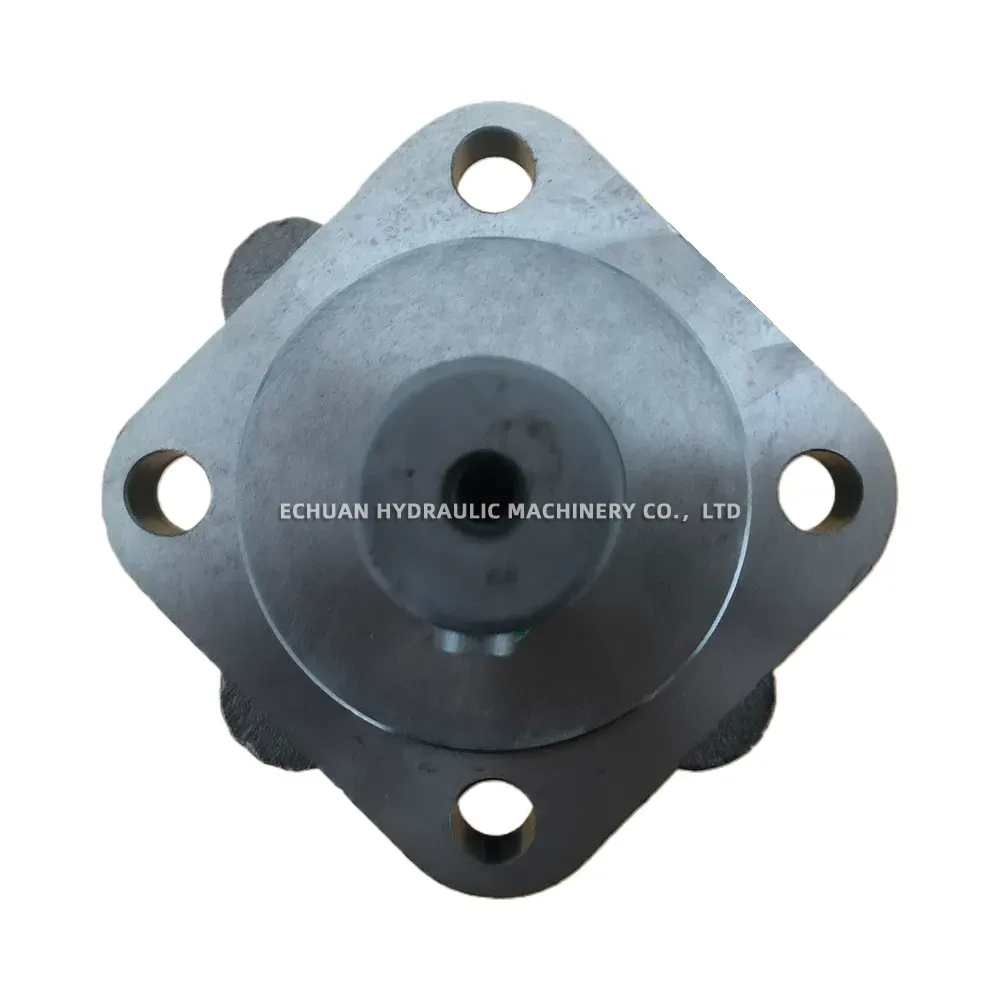

- Mounting Flange: SAE A 4-Bolt Square Flange (ø82.55 mm pilot dia.)
- Shaft: ø32 mm Cylindrical Shaft with Woodruff Key (A10 x 8 x 45 mm, DIN 6885)
- Ports: G 1/2 Main Ports (BSPP – ISO 228/1)
- Drain Port: G 1/4 (BSPP – ISO 228/1)
- Max Continuous Speed: 375 rpm
- Max Continuous Torque: 465 Nm [4115 lb-in]
- Max Continuous Pressure Drop: 175 bar [2540 psi]
- Max Intermittent Pressure Drop: 200 bar [2900 psi]
- Max Peak Pressure Drop: 225 bar [3260 psi]
- Rotation: Standard (Bi-directional)
WHITE OMS200 151F0504
Model:WHITE OMS200 151F0504
