Product Description
wieland SA-IN-S1-K-A Safety Controller
The Wieland SA-IN-S1-K-A is a highly reliable industrial safety controller module designed for advanced machine safety applications. Manufactured in Germany, this compact module features dual rotary switches for quick and intuitive configuration of Input A and Input B (settings 0-9) and utilizes terminal blocks X1 through X8 for secure wiring. Operating on a 24V DC (Class 2) power supply with an efficient 3W power consumption, it seamlessly integrates into modern control panels via standard DIN rail mounting. Built to meet the most stringent industrial safety requirements, the SA-IN-S1-K-A (Part Number: R1.180.0070.0) boasts top-tier safety certifications including SIL 3 (IEC 61508), SIL CL 3 (EN 62061), and PL e / Cat. 4 (EN ISO 13849-1), making it an essential component for protecting personnel and machinery in automated environments.
Technical Specifications:
- Brand: Wieland

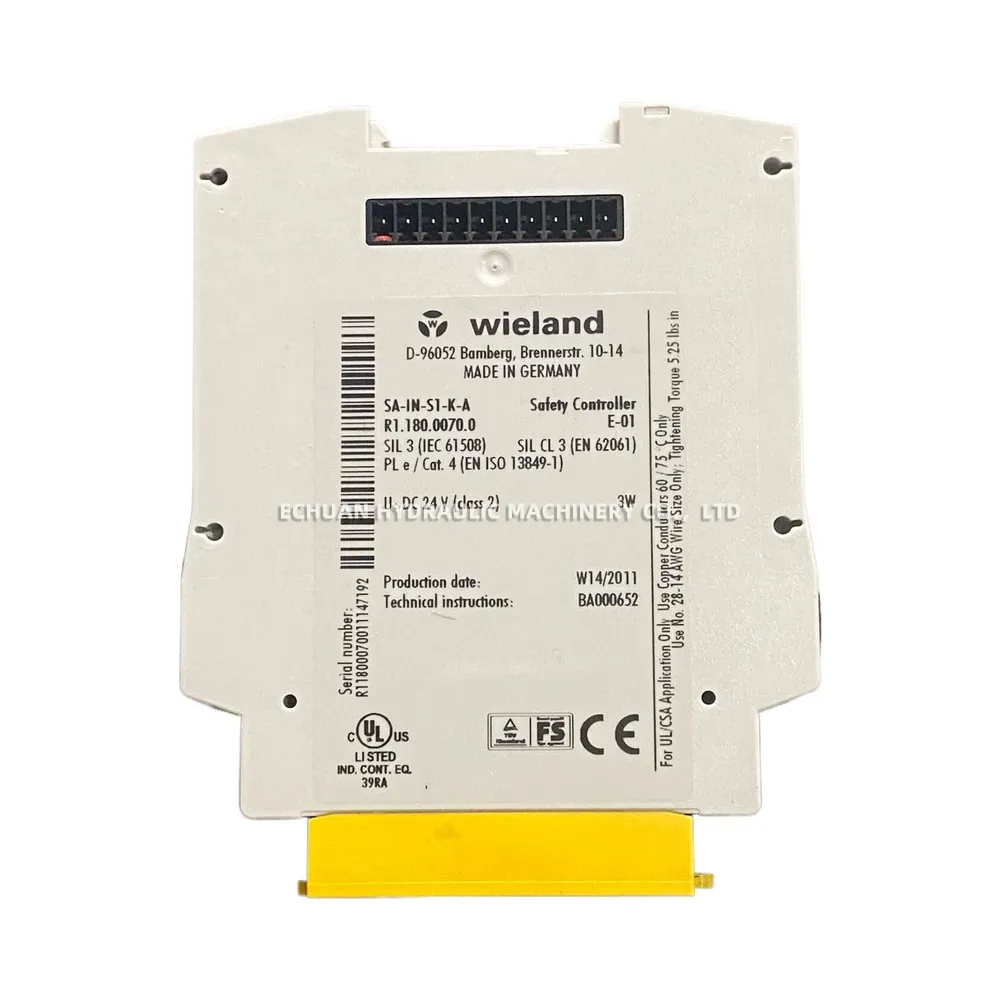

- Model/Part Number: SA-IN-S1-K-A / R1.180.0070.0 E-01
- Power Supply: DC 24 V (Class 2), 3W Power Consumption
- Safety Ratings: SIL 3 (IEC 61508), SIL CL 3 (EN 62061), PL e / Cat. 4 (EN ISO 13849-1)

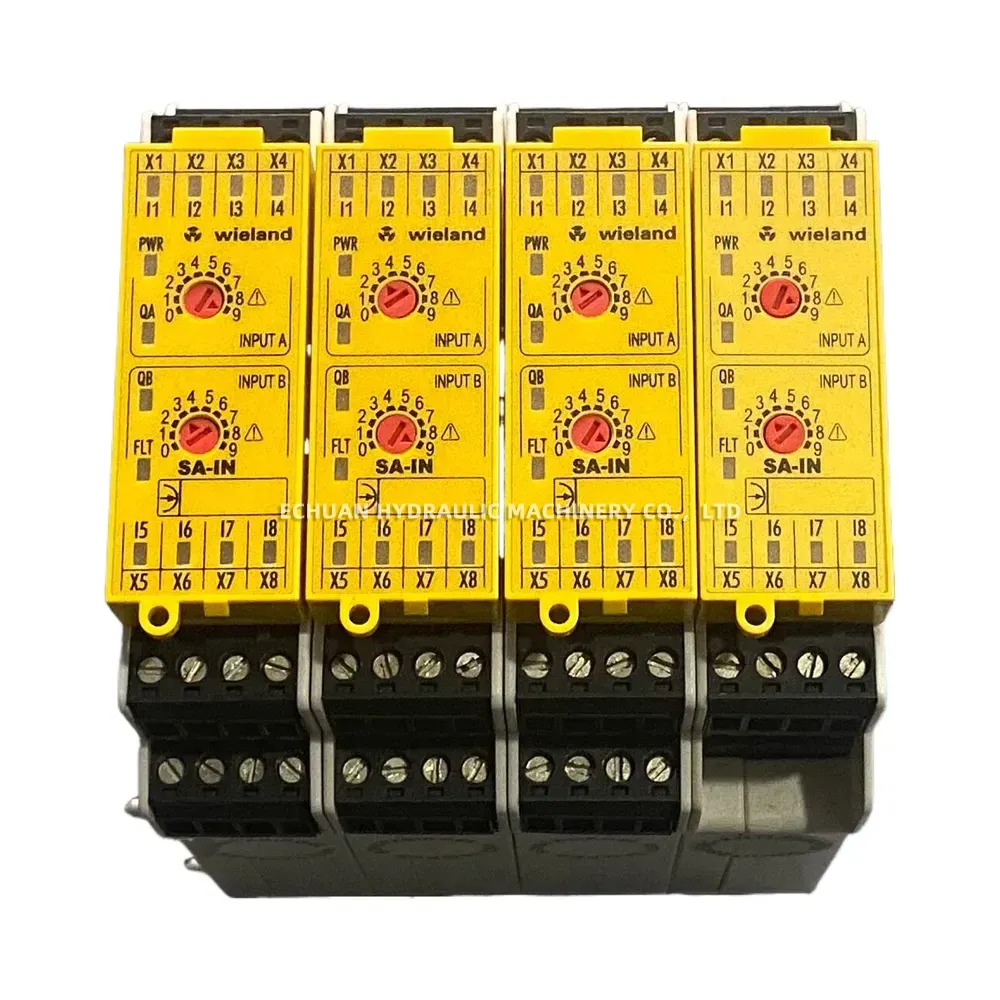

- Configuration: Dual rotary switches (Input A and Input B, settings 0-9)

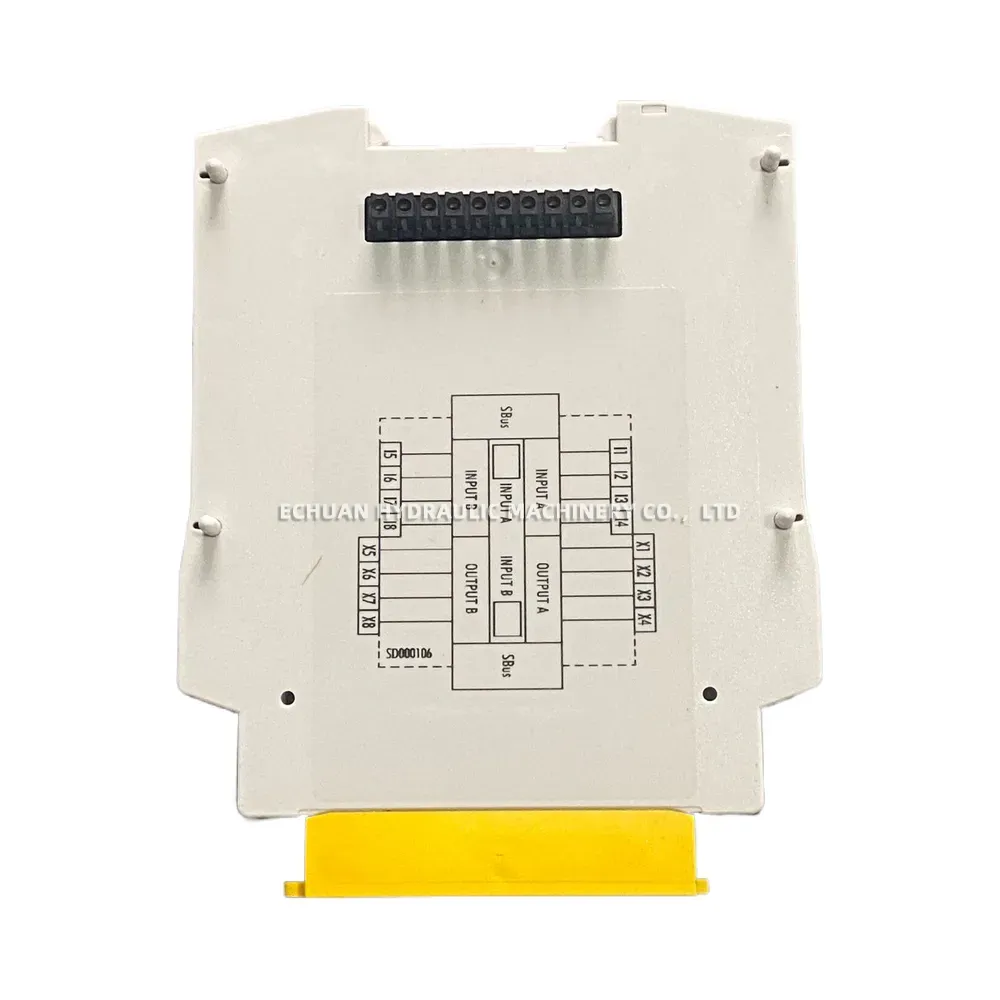

- Connections: Terminal blocks X1 through X8
- Wiring Requirements: Copper Conductors 60/75°C only, 28-14 AWG wire size, 5.25 lbs-in tightening torque
- Mounting: DIN Rail
- Certifications: cULus LISTED (IND. CONT. EQ. 39RA), FS, CE
wieland SA-IN-S1-K-A Safety Controller
Shop the Wieland SA-IN-S1-K-A (R1.180.0070.0) Safety Controller. A premium 24V DC industrial safety module featuring SIL 3 and PL e / Cat. 4 ratings, DIN rail mounting, and dual rotary switch configuration for robust and reliable machine safety.
