Product Description

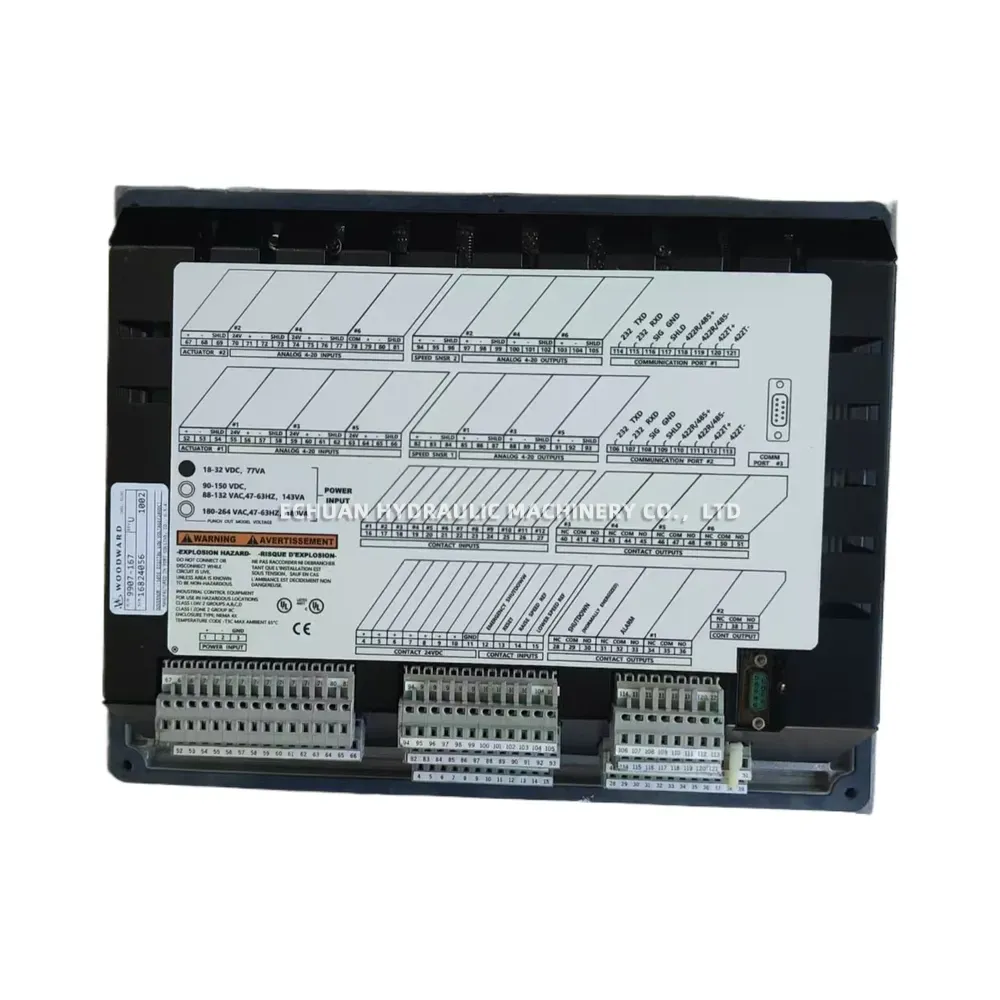

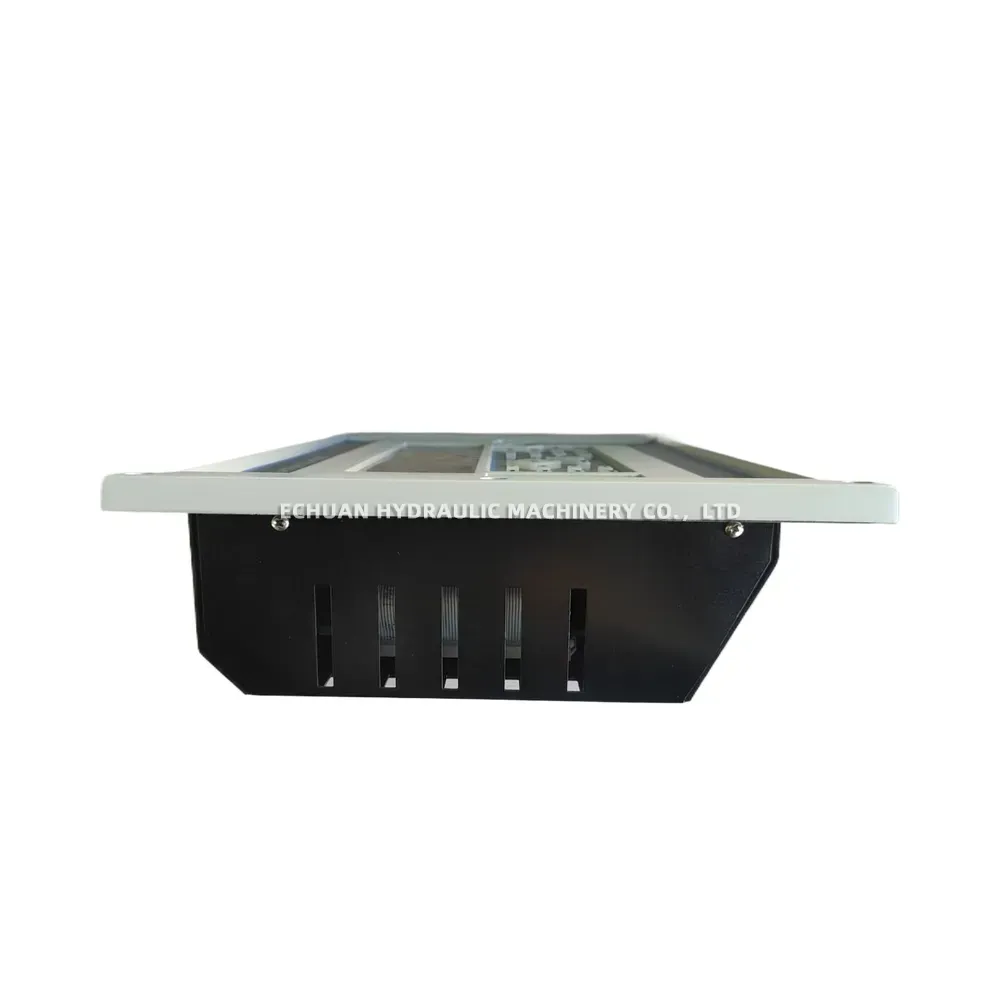

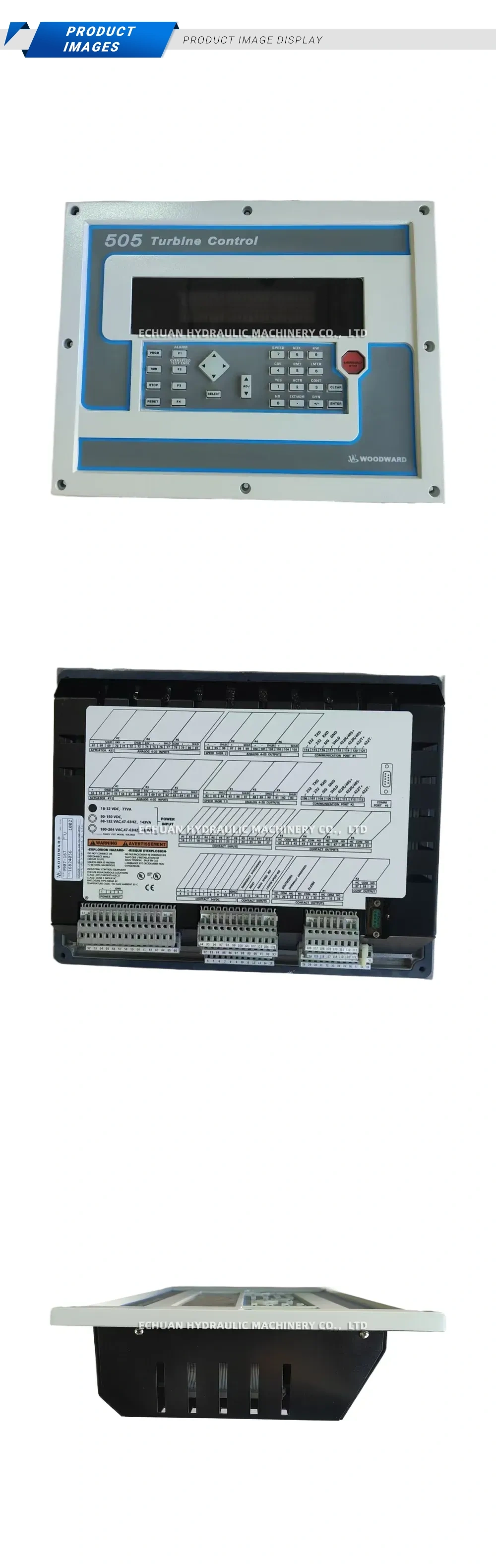

Woodward 9907-167 Digital speed controller
The Woodward 9907-167 is a digital speed controller and a key component of the 505E series, designed for the precise control of single-extraction and/or admission steam turbines. This microprocessor-based controller is engineered to manage critical turbine parameters, including speed, load, and steam pressure, ensuring optimal performance, efficiency, and safety. Its user-friendly interface allows for easy configuration and tuning, making it an ideal solution for power generation facilities and mechanical drive applications. The robust design of the 9907-167 guarantees reliable operation even in demanding industrial environments.
Technical Specifications:
- Model: 505E Digital Governor, P/N 9907-167
- Power Supply: Low Voltage model, 18–32 Vdc
- Speed Sensing Inputs: 2x Magnetic Pickup Units (MPU), passive, 1.0 to 30 Vrms
- Analog Inputs: 4x programmable inputs (4–20 mA)
- Analog Outputs: 4x programmable outputs (4–20 mA)
- Communication Ports: 2x Modbus (RS-232/422/485) serial ports for remote monitoring and control
- Operating Temperature: -25 to +65 °C (-13 to +149 °F)
Woodward 9907-167 Digital speed controller
Shop the Woodward 9907-167, a reliable 505E series digital speed controller for precise steam turbine governance. This low-voltage model ensures optimal speed and load management for industrial applications.
