Woodward EGCP-2 Digital Control Module

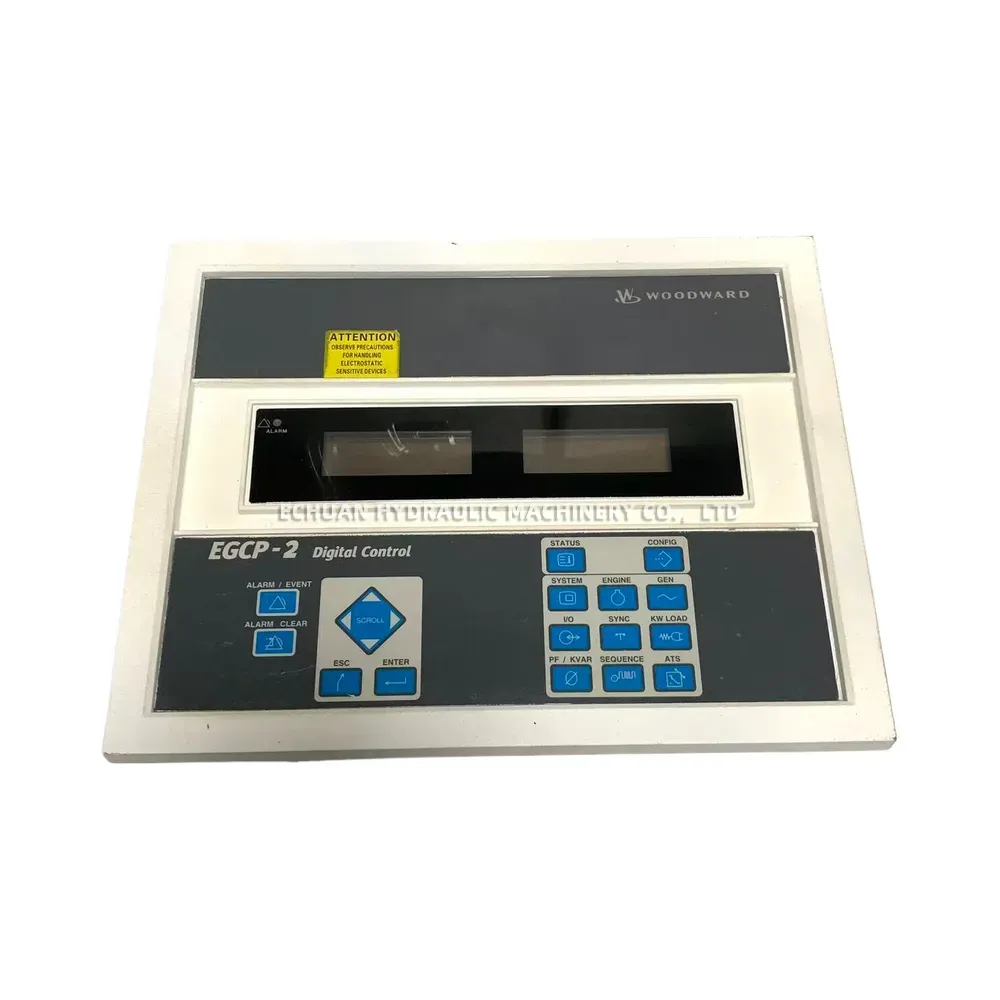

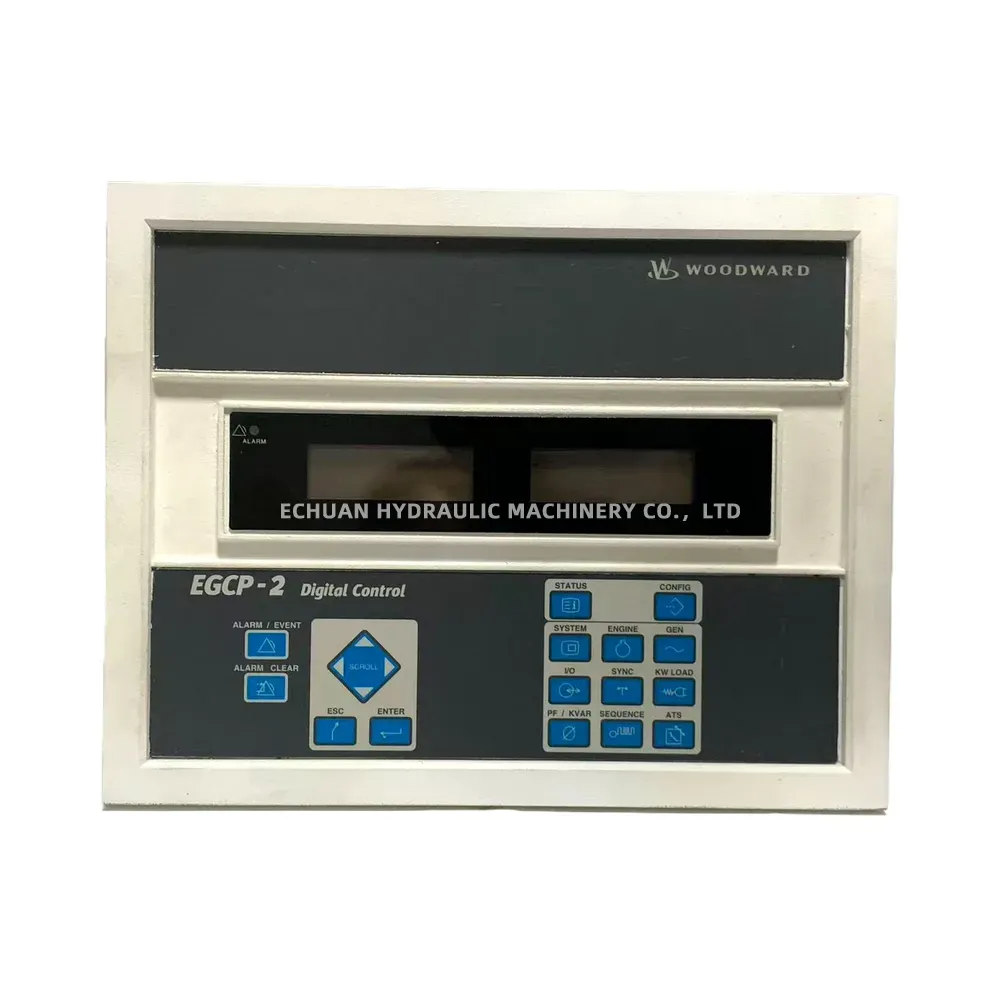

The Woodward EGCP-2 (EasyGen Control Panel 2) is a highly reliable digital control unit engineered for comprehensive engine and generator management. It features an intuitive user interface equipped with dual LCD displays and a durable membrane keypad for seamless system configuration and real-time monitoring. This advanced module supports a wide array of critical functions, including System, Engine, and Generator management, Synchronization (SYNC), Load Sharing (KW Load, PF/KVAR), Sequence control, and Automatic Transfer Switch (ATS) integration. Designed for industrial control equipment, the EGCP-2 ensures precise and safe operational control for complex power generation systems.
Technical Specifications:
- Part Number: 8406-121 (Rev. A)
- Power Supply: 18-32 VDC or 18-32 VAC 50/60 Hz (Max Current: 1 A / 1200 mA @ 24 VDC)
- Analog Inputs: 2 Inputs (0-5 VDC or 4-20 mA DC)
- Discrete Inputs: 8 Inputs, 5 mA each (Dry contacts, closed to GND, internal pull-up resistors)
- Potential Transformer Input: 90-140 VAC 50/60 Hz
- Current Transformer Inputs: 0-5 A AC 50/60 Hz
- Relay Outputs: 11 Contacts (5 A @ 250 VAC Resistive, 0.3 A @ 250 VAC Inductive)
- Speed Match Output: 1 Output (0-20 mA DC or 4-20 mA DC)
- Voltage Raise/Lower: 2 Outputs (0.5 A @ 28 VDC Max)
Woodward EGCP-2 Digital Control Module
Optimize your power generation system with the Woodward EGCP-2 Digital Control Module (Part 8406-121). This industrial-grade unit offers precise engine and generator management, featuring SYNC, KW/KVAR load sharing, ATS integration, and dual LCD displays for reliable performance monitoring.
