Product Description

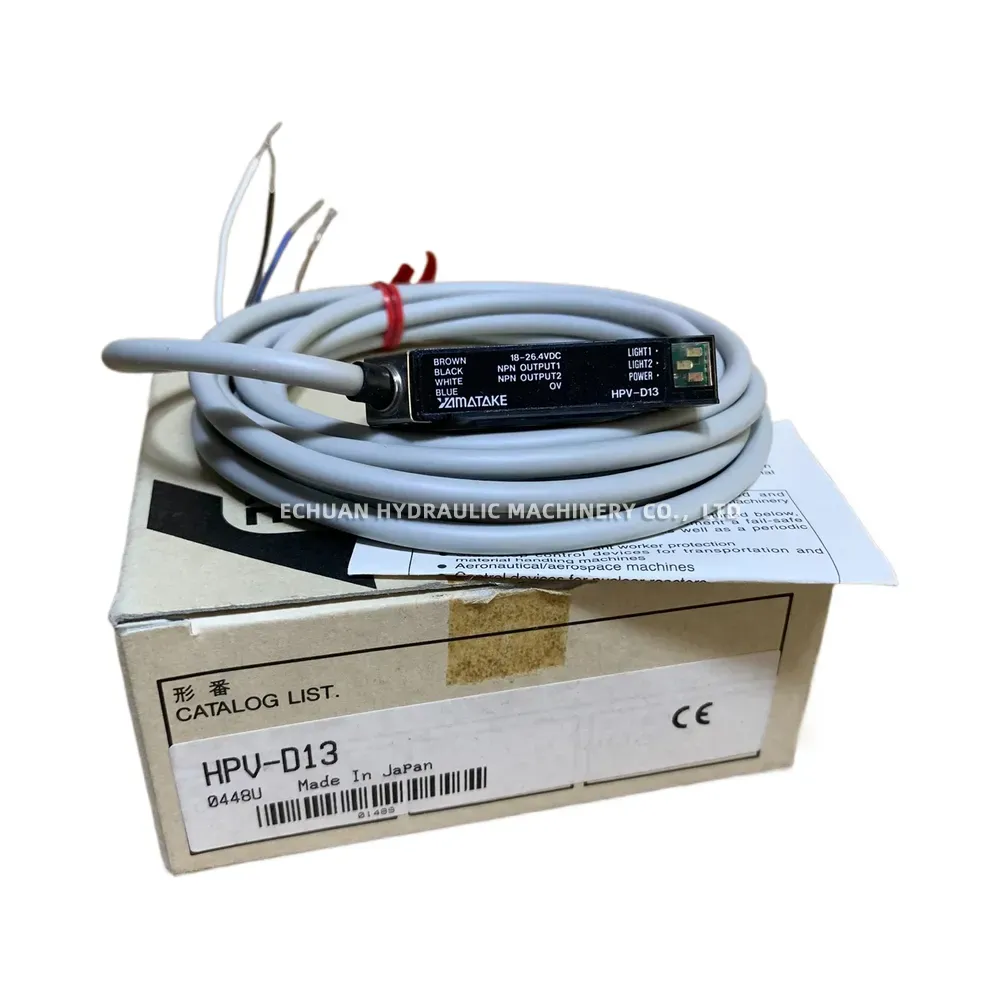

Yamatake HPV-D13

The Yamatake HPV-D13 is a high-performance digital fiber optic amplifier designed for precision and reliability in industrial automation applications. Now part of the Azbil Group, this sensor amplifier features a user-friendly digital display and a simple teach-in function for quick and easy setup. Its fast response time and stable detection capabilities make it ideal for a wide range of tasks, including small object detection, positioning, and presence/absence verification. The compact, DIN-rail mountable design allows for seamless integration into existing control systems, providing a robust solution for demanding sensing environments.

Technical Specifications:

  • Model: HPV-D13

  • Type: Amplifier Unit, Main Unit

  • Power Supply: 12 to 24 V DC ±10%

  • Output: NPN open-collector, 100 mA max.

  • Response Time: 250 μs (FAST mode) / 1 ms (STD mode)

  • Light Source: Red LED (Wavelength: 640 nm)

  • Display: 4-digit, 7-segment digital display (red)

  • Mounting: 35 mm DIN rail

Yamatake HPV-D13 Description

Yamatake HPV-D13

Discover the Yamatake HPV-D13, a high-speed digital fiber optic amplifier with NPN output. Featuring a clear digital display and easy teach-in setup, this sensor is perfect for precise object detection in industrial automation. DIN rail mountable for easy installation.

BrandYAMATAKE
ModelHPV-D13
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/yamatake-hpv-d13
