Product Description

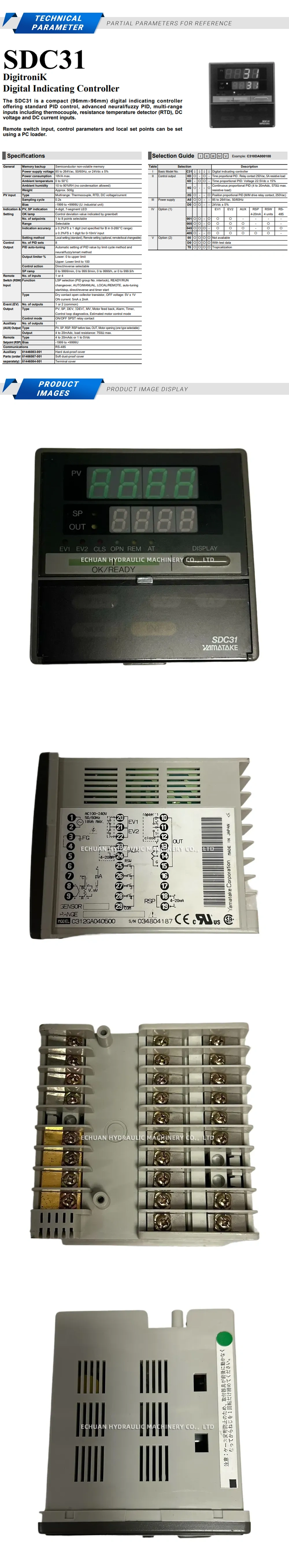

Yamatake SDC31
The Yamatake SDC31 is a high-performance digital indicating controller designed for precise temperature and process management in a wide range of industrial applications. Part of the reliable SDC30 series, this controller features a multi-input capability, accepting signals from various sensors like thermocouples and RTDs. It employs an advanced PID control algorithm with autotuning, ensuring stable and accurate control of processes. The clear, dual 4-digit display allows for simultaneous monitoring of the process value (PV) and set value (SV), making it a user-friendly and effective solution for automation and manufacturing environments.
Technical Specifications:
- Model: SDC31 Digital Indicating Controller
- Input Type: Universal multi-input (Thermocouple, RTD, DC voltage/current)
- Control Output: Configurable options including Relay contact, Voltage pulse (for SSR drive), and Current output (4-20 mA DC)
- Control Method: PID control with advanced autotuning
- Display: Dual 4-digit, 7-segment digital display (PV/SV)
- Power Supply: 100 to 240 V AC, 50/60 Hz
- Panel Cutout Size: 92 x 92 mm (for 96 x 96 mm front panel)
Yamatake SDC31
Discover the Yamatake SDC31, a versatile digital indicating controller for precise temperature and process control. Features multi-input, advanced PID algorithm, and a clear dual display. Ideal for industrial automation.
