Product Description

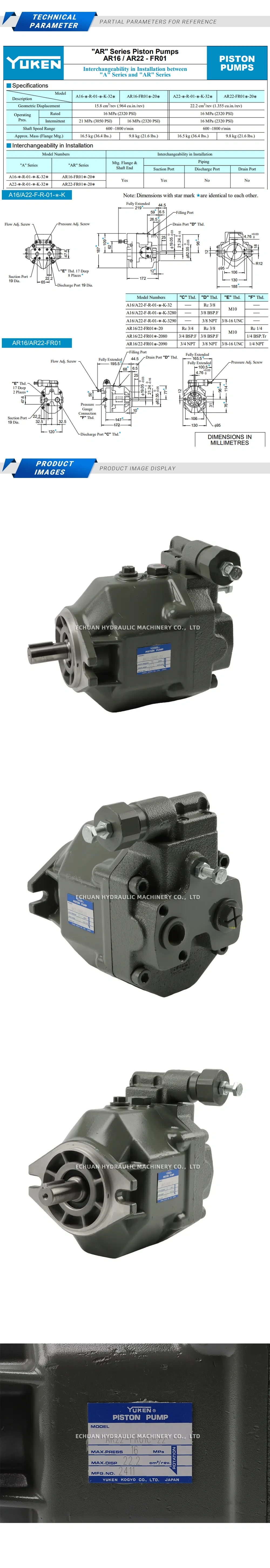

Yuken AR22-FR01C-22
The Yuken AR22-FR01C-22 is a high-performance, variable displacement piston pump from the renowned AR series. Designed for energy efficiency and low noise operation, this pump features a pressure compensator control that automatically adjusts the swash plate angle to maintain the set pressure, delivering only the necessary flow for the system. Its robust construction ensures long service life and reliability in a wide range of industrial hydraulic applications, from machine tools to industrial machinery. The flange mounting design allows for easy integration into various hydraulic systems.
Technical Specifications:
- Model: AR22-FR01C-22
- Pump Type: Variable Displacement Piston Pump
- Displacement: 22.2 cm³/rev (1.35 cu.in./rev)
- Maximum Operating Pressure: 21 MPa (3050 PSI)
- Pressure Adjustment Range: 3.5 – 21 MPa (510 – 3050 PSI)
- Speed Range: 600 – 1800 r/min
- Control Type: Pressure Compensator
- Mounting: Flange Mount
Yuken AR22-FR01C-22
Purchase the Yuken AR22-FR01C-22 variable displacement piston pump. Features 22.2 cm³/rev displacement, a maximum operating pressure of 21 MPa (3050 PSI), and pressure compensator control for high efficiency. Ideal for industrial hydraulic systems.
