Product Description

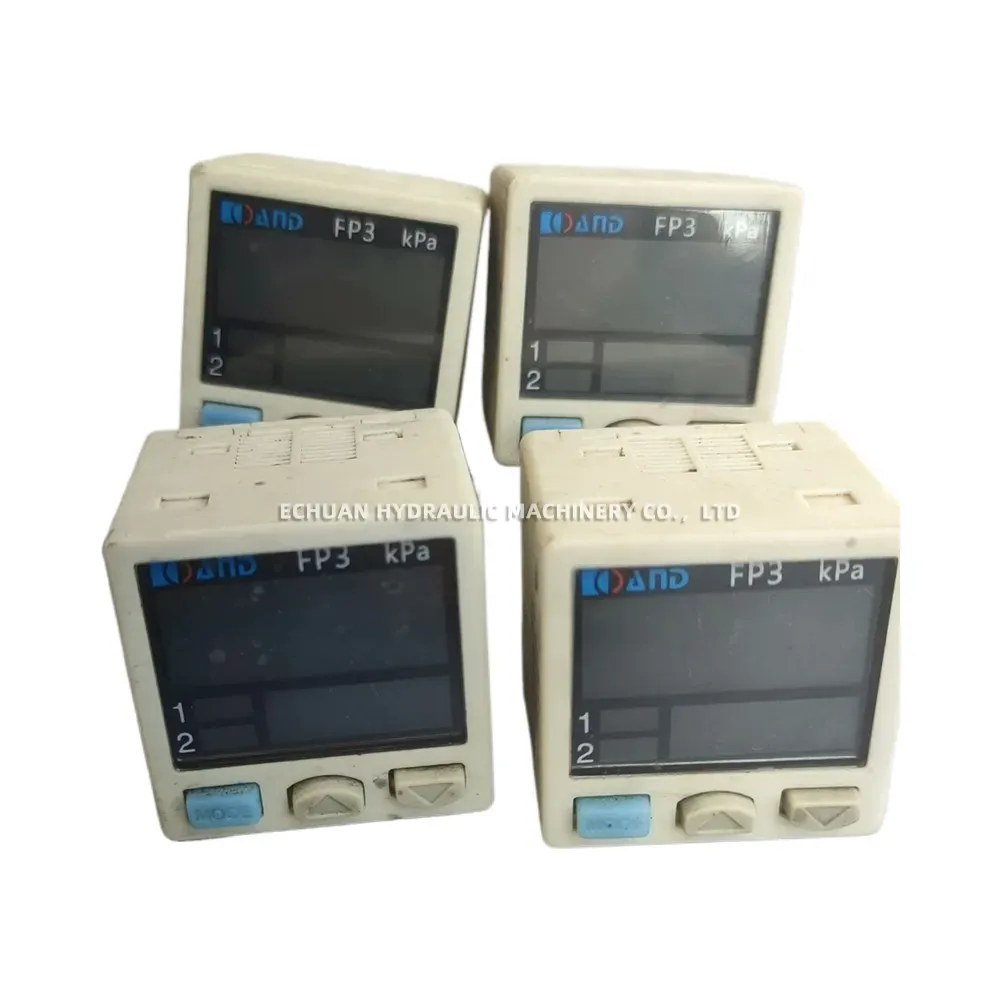

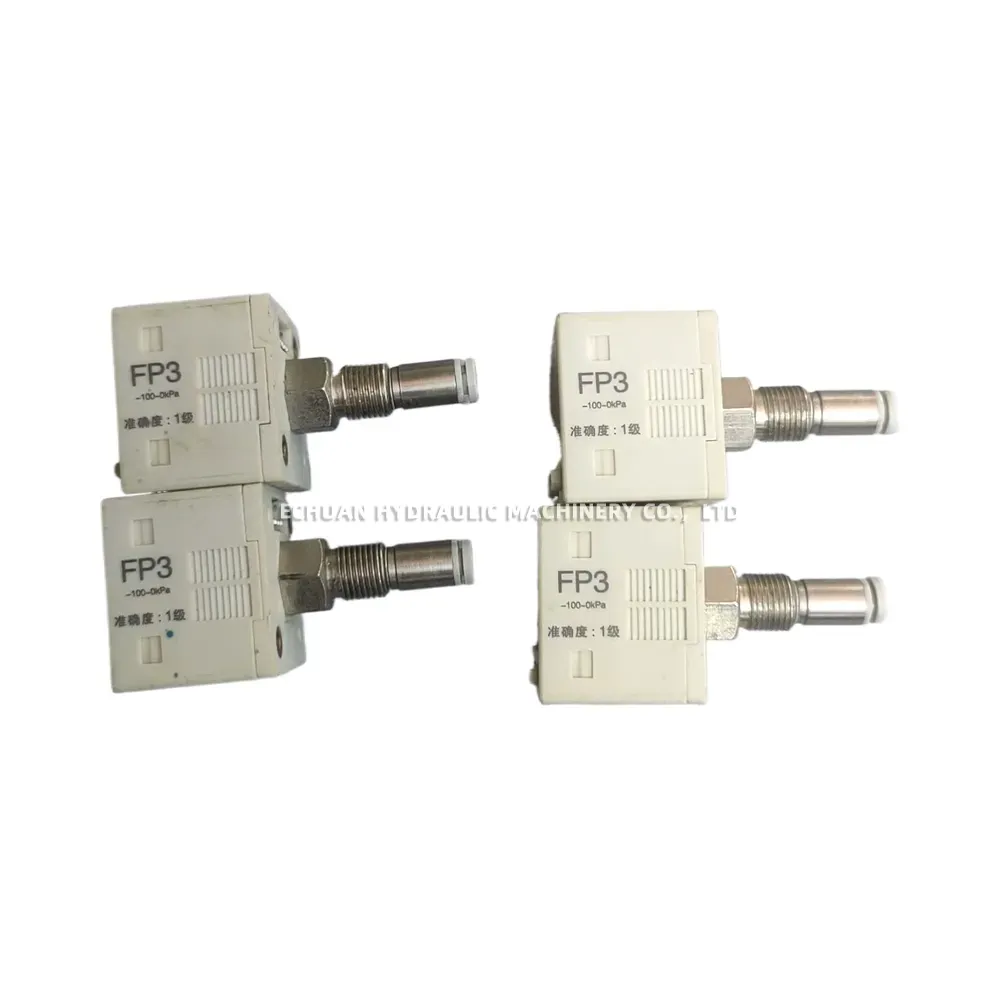

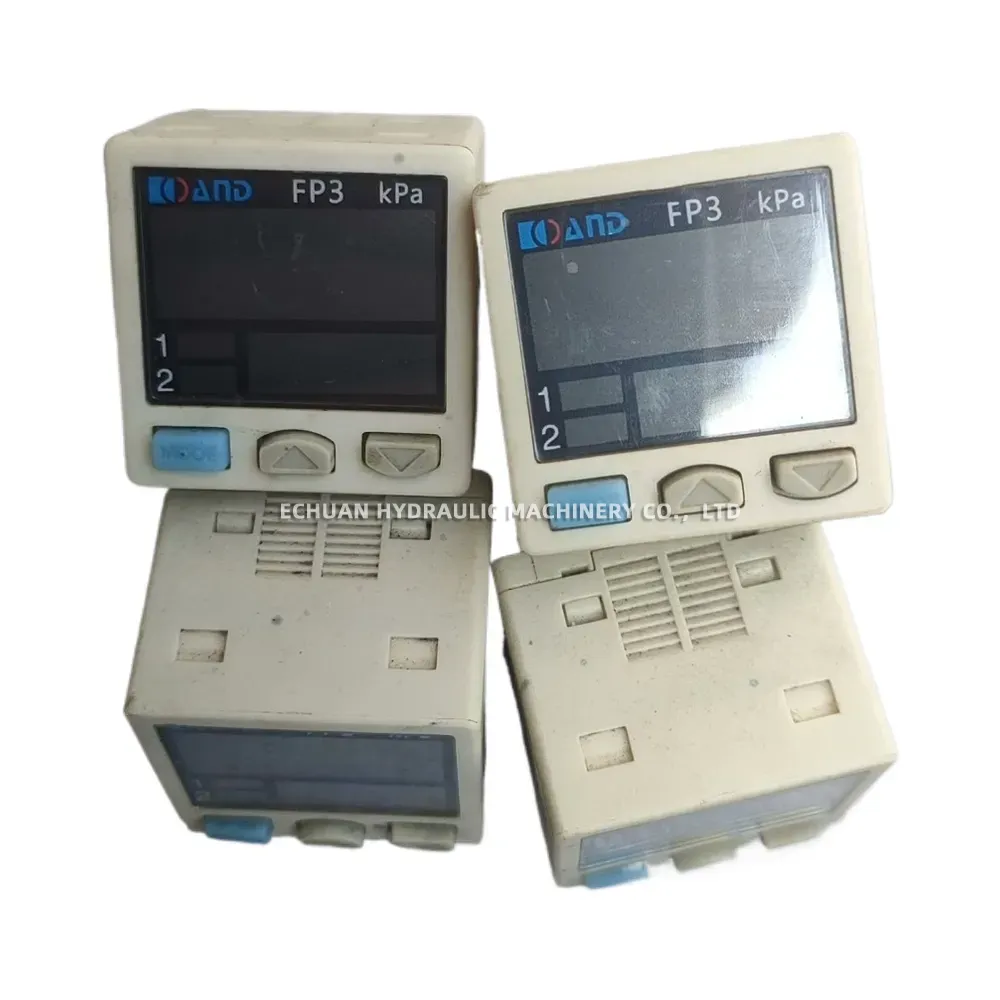

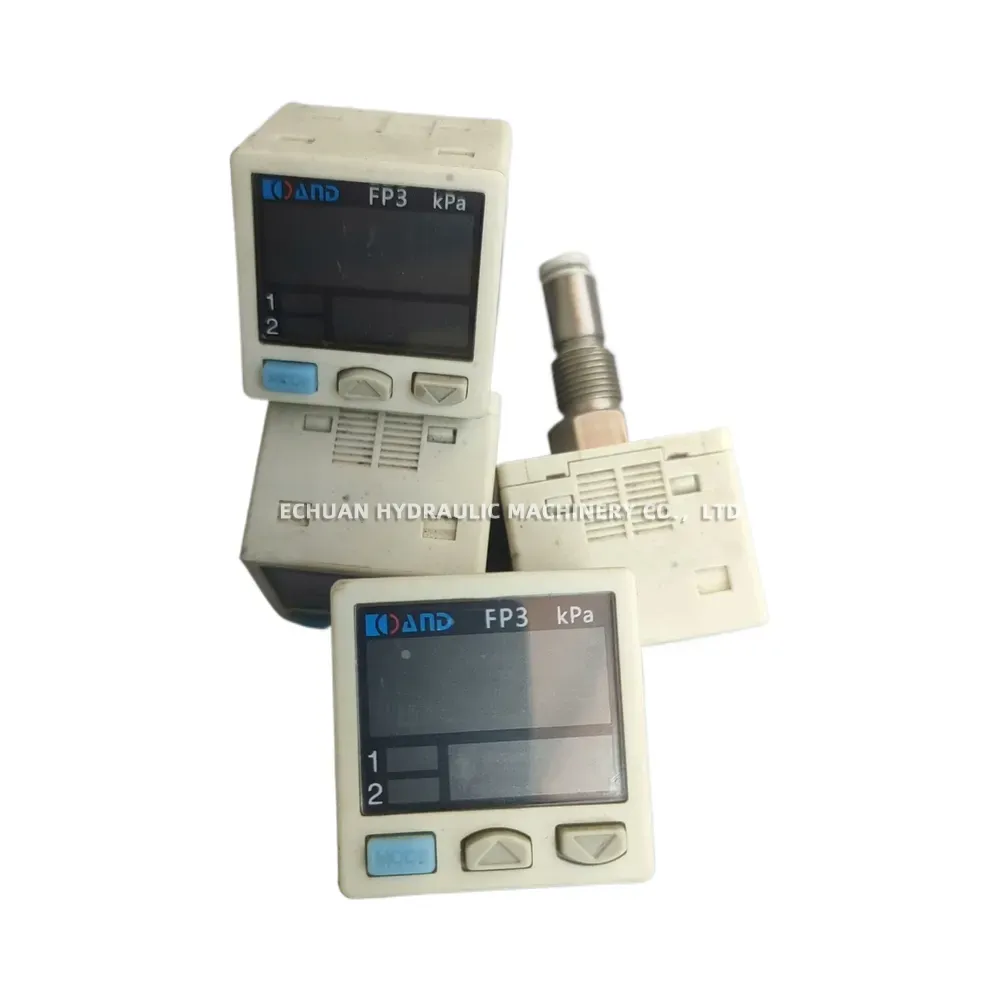

A&D FP3 Digital Pressure Sensor
The A&D FP3 Digital Pressure Sensor is a highly reliable instrument designed for precise vacuum pressure monitoring in industrial automation systems. It features a clear LCD display equipped with intuitive configuration buttons (MODE, Up, Down) for effortless setup and real-time monitoring. Operating on a standard 12 to 24V DC power supply, this sensor provides a measurement range of -100 to 0 kPa with a Level 1 accuracy class, ensuring dependable and consistent performance. The FP3 model is built for seamless system integration, offering a 5-wire configuration that includes an analog I/O and two distinct digital outputs (OUT1 and OUT2) for versatile control applications.
Technical Specifications:
- Measurement Range: -100 to 0 kPa (Vacuum Pressure)
- Accuracy Class: Level 1
- Power Supply: 12 to 24V DC
- Display & Interface: LCD display with MODE, Up, and Down configuration buttons
- Wiring Guide: 1. RED (12-24V DC) | 2. WHITE (Analog I/O) | 3. GREEN (OUT1) | 4. YELLOW (OUT2) | 5. BLACK (0V)
A&D FP3 Digital Pressure Sensor
Enhance your industrial automation with the A&D FP3 Digital Pressure Sensor. Featuring a -100 to 0 kPa vacuum range, Level 1 accuracy, an intuitive LCD display, and versatile analog/digital outputs, this 12-24V DC sensor provides precise and reliable pressure monitoring for critical systems.
| Brand | A&D |
|---|---|
| Model | FP3 |
| Part No. | 959016011858 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/ad-fp3-digital-pressure-sensor |
