Product Description

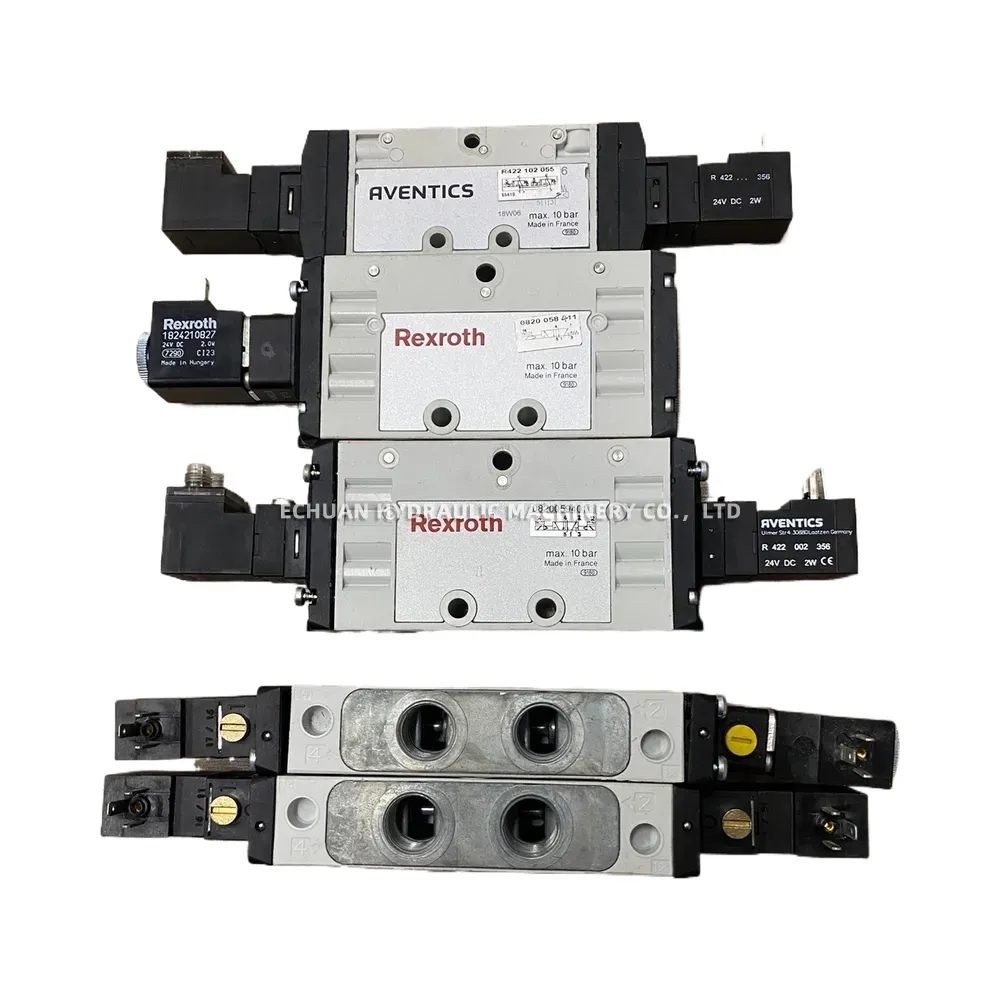

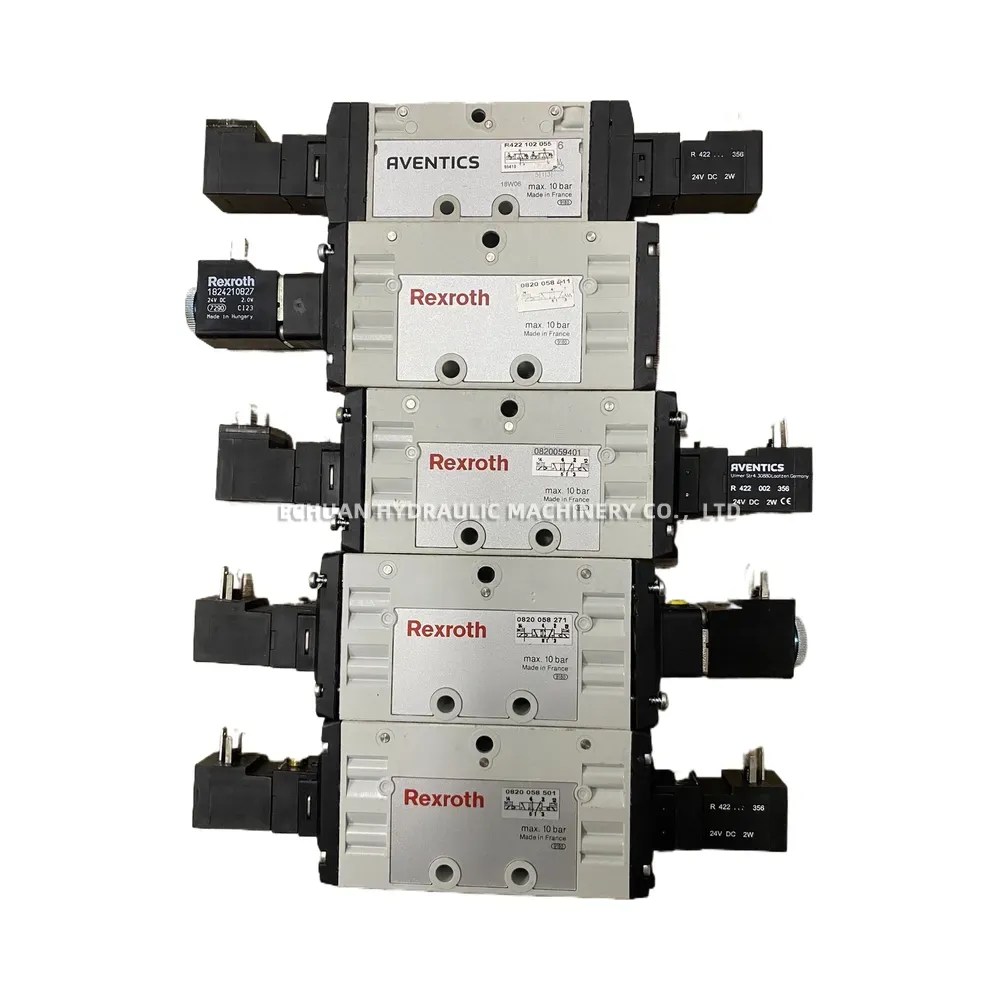

AVENTICS 0820058411
The AVENTICS 0820058411 is a 5/2-way single solenoid directional control valve from the TC08 series. This compact and versatile valve is designed for controlling pneumatic actuators in various industrial automation applications. It features G 1/8 ports and operates via electrical actuation with a mechanical spring return, ensuring reliable switching and a defined return position. Constructed from durable Polyamide, it’s suitable for standard compressed air applications.
Technical Specifications:
- Valve Type: 5/2-way Single Solenoid Valve
- Series: TC08
- Actuation: Electrical / Spring Return
- Port Connection (Ports 1, 2, 4): G 1/8
- Port Connection (Ports 3, 5): G 1/8
- Nominal Flow Rate Qn (at 6 bar, Δp=1 bar): 800 l/min
- Operating Pressure Min/Max: 2.5 bar / 10 bar
- Control Pressure Min/Max: 2.5 bar / 10 bar
- Nominal Voltage: 24V DC
- Voltage Tolerance: -10% / +10%
- Power Consumption: 1.3 W
- Duty Cycle (ED): 100%
- Medium: Compressed Air (Filtered 5 µm, oiled or unoiled)
- Ambient Temperature Range: -10°C to +50°C
- Medium Temperature Range: -10°C to +50°C
- Protection Class (with assembled connector): IP65
- Manual Override: Yes, latching
- Housing Material: Polyamide (PA), fiber-glass reinforced
- Seals Material: Nitrile rubber (NBR)
AVENTICS 0820058411
Model:AVENTICS 0820058411
| Brand | AVENTICS |
|---|---|
| Model | 0820058411 |
| Part No. | AVENTICS 0820058411 |
| Category | Hydraulic valves |
