Product Description

AVENTICS 0820061011 TC08-5/3EC-DO-024DC-I-FORM_C-SGL

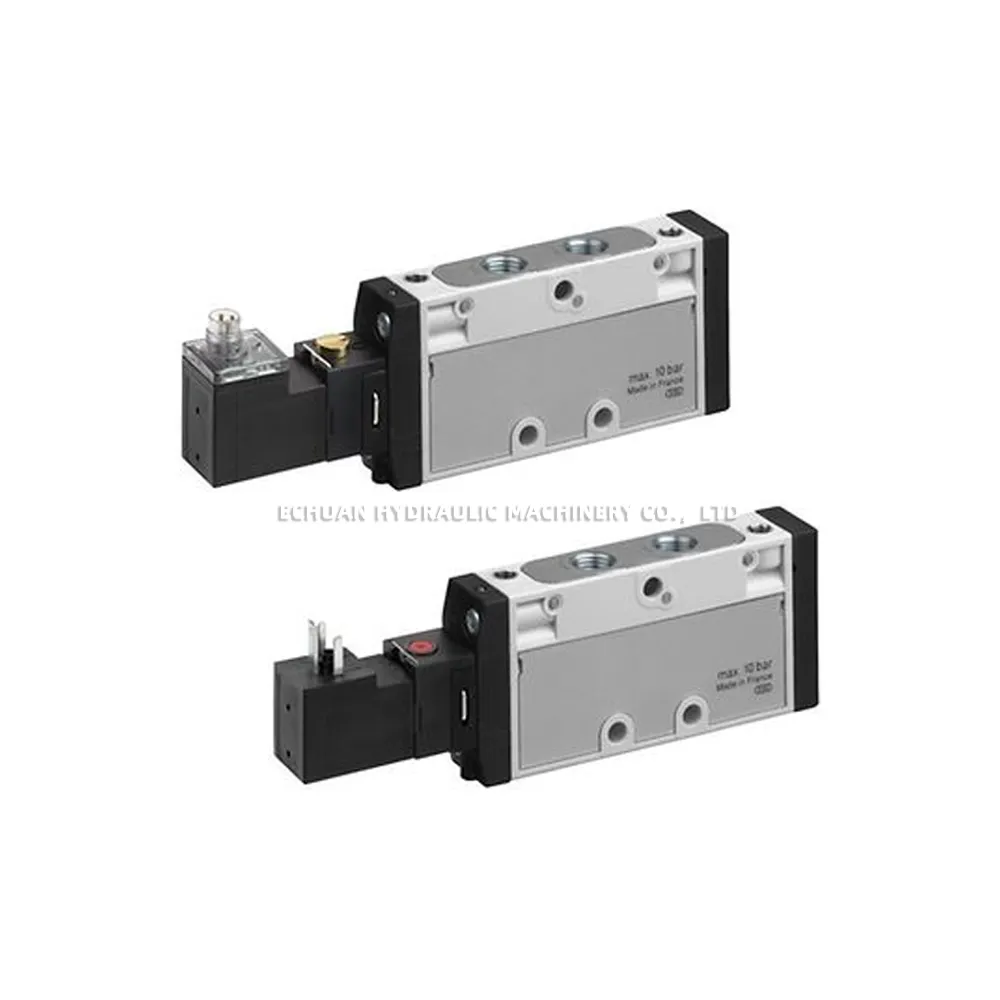

The AVENTICS™ TC08 series valve, model 0820061011, is a high-performance 5/3-way directional control valve. This specific configuration features a closed center spool (EC), single solenoid actuation (SGL), and operates on 24V DC. It is direct operated (DO) with an internal pilot supply (I) and utilizes a Form C electrical connection. Designed for versatility and reliability in industrial pneumatic systems, the TC08 series offers substantial flow capacity within a compact footprint, making it suitable for various automation tasks requiring precise air control.

Technical Specifications:

  • Valve Function: 5/3 Way, Closed Center (EC)
  • Actuation Type: Single Solenoid, Electrically Actuated
  • Operating Principle: Direct Operated (DO), Poppet Valve
  • Pilot Supply: Internal (I)
  • Nominal Flow Rate Qn: 700 l/min
  • Operating Pressure Range: -0.9 bar to 10 bar
  • Control Voltage: 24V DC
  • Voltage Tolerance: -10% / +10%
  • Power Consumption: 1.8 W
  • Electrical Connection: Plug, EN 175301-803, Form C
  • Pneumatic Connection: G 1/8
  • Protection Class (with connector): IP65
  • Ambient Temperature Range: -10°C to +50°C
  • Medium: Compressed Air (Filtered, Oiled or Unoiled)
  • Materials: Housing (Polyamide, fiber-glass reinforced), Seals (Hydrogenated Acrylonitrile Butadiene Rubber)

AVENTICS 0820061011 TC08-5/3EC-DO-024DC-I-FORM_C-SGL

Model:AVENTICS 0820061011 TC08-5/3EC-DO-024DC-I-FORM_C-SGL
