Product Description

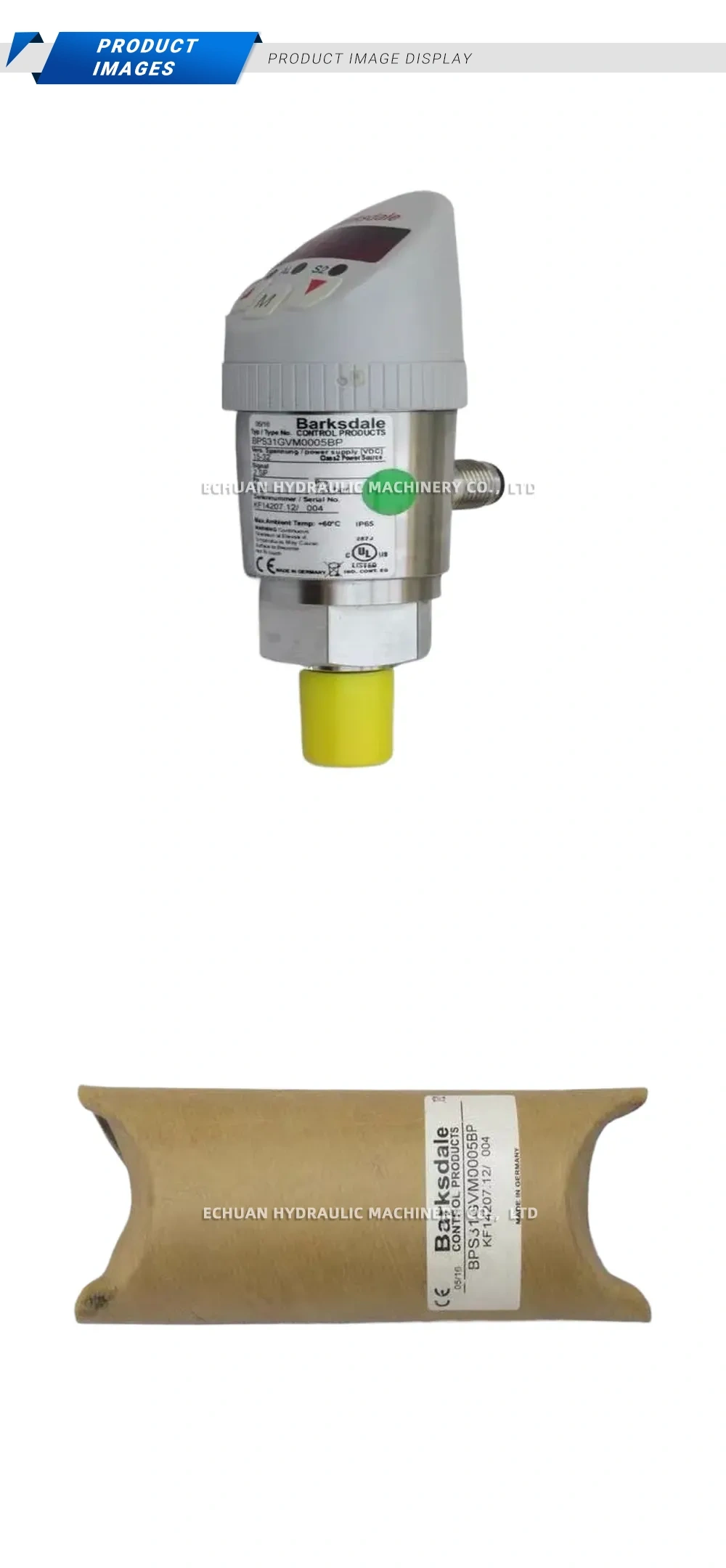

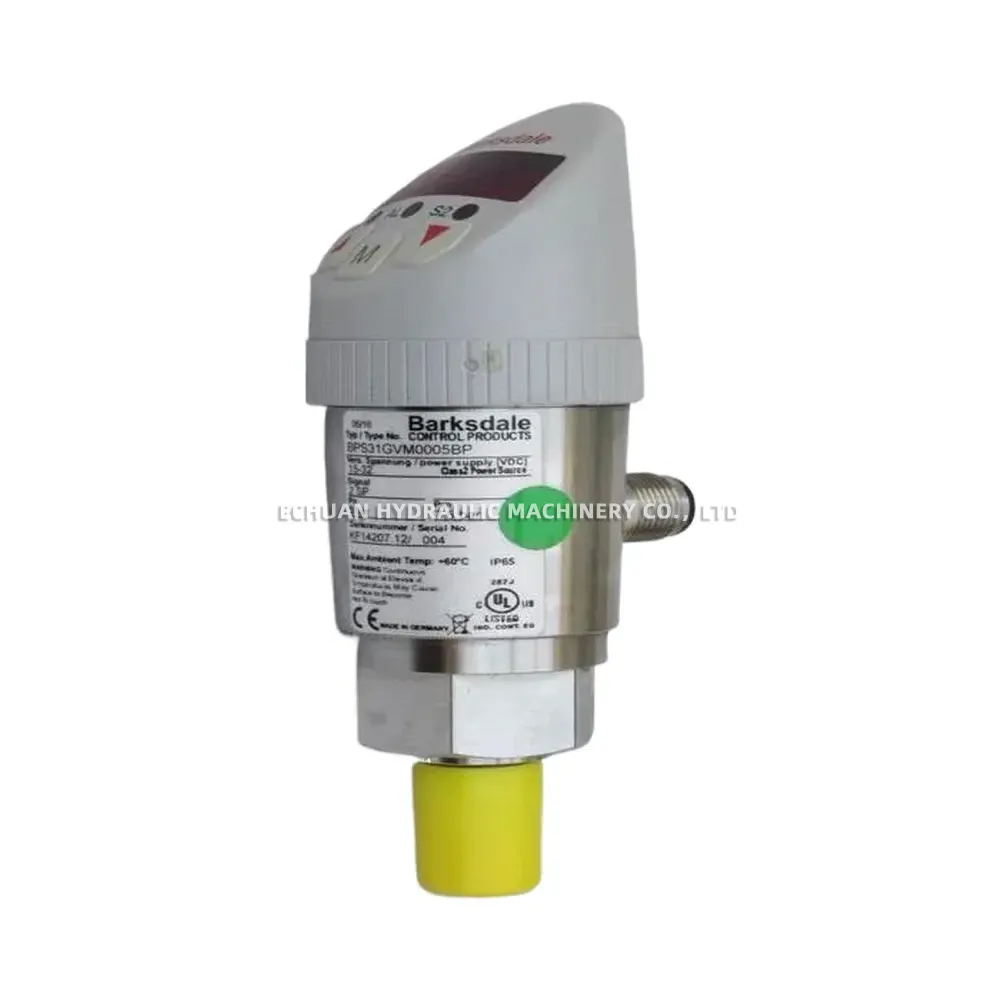

Barksdale BPS31GVM0005BP Digital Pressure Switch
The Barksdale BPS31GVM0005BP is a high-performance industrial digital pressure switch designed for precise pressure monitoring and control in demanding environments. Part of the reliable BPS31 series, this German-engineered device features a robust stainless steel housing and a clear LED display for easy reading and configuration. It provides dual switch point outputs for versatile control options and is built to withstand industrial conditions with its IP65 protection rating. Ideal for applications requiring accurate pressure management, this switch combines durability with advanced functionality, backed by CE and cULus certifications.
Technical Specifications:
- Model: BPS31GVM0005BP
- Power Supply: 15-32 VDC (Class 2 Power Source)
- Signal Output: 2 Switch Points (SP)
- Nominal Pressure (Pn): 5 bar
- Maximum Pressure (Pm): 7.5 bar
- Ingress Protection: IP65
- Max. Ambient Temperature: +60°C
- Housing: Stainless Steel with LED Display
- Certifications: CE, cULus
Barksdale BPS31GVM0005BP Digital Pressure Switch
Discover the Barksdale BPS31GVM0005BP, an industrial digital pressure switch with a 5 bar range, dual switch outputs, and a rugged IP65 stainless steel housing. Made in Germany for reliable performance.
