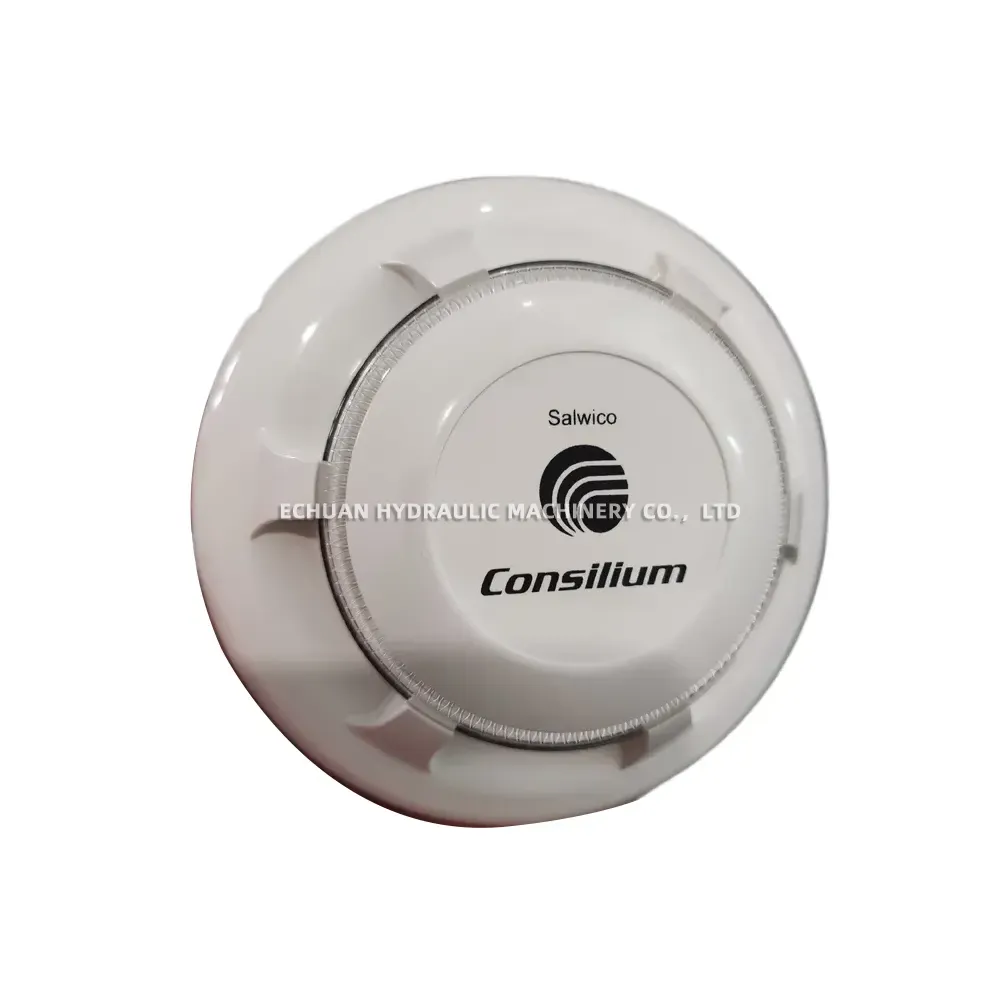

Consilium EV-P (Part No. 40020) Analogue Photoelectric Smoke Sensor
The Consilium EV-P (Part No. 40020) is a premium analogue photoelectric smoke sensor engineered for highly reliable fire detection systems. Operating seamlessly on the advanced Evolution protocol, this detector provides exceptional accuracy and rapid response times in identifying smoke particles from smoldering fires. Built to withstand demanding environmental conditions, it features a broad operating temperature range of -25°C to +70°C and an IP42 protection rating. The sensor is fully CE marked and certified to EN54-7:2000 standards, ensuring strict compliance with international safety regulations. For proper integration, the device address must be programmed prior to installation using the dedicated EV-AD2 tool.
Technical Specifications:
- Brand: Consilium
- Model: EV-P
- Part Number: 40020
- Sensor Type: Analogue Photoelectric Smoke Detector
- Communication Protocol: Evolution Protocol

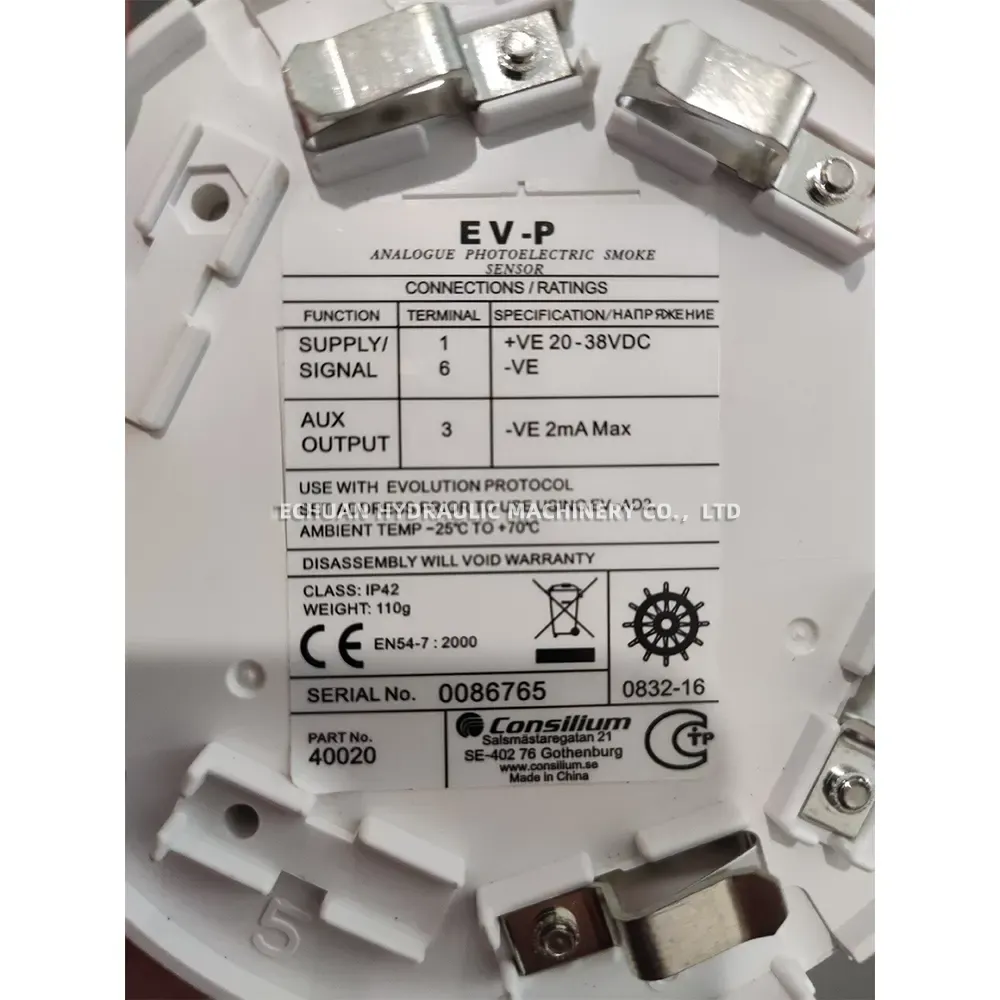

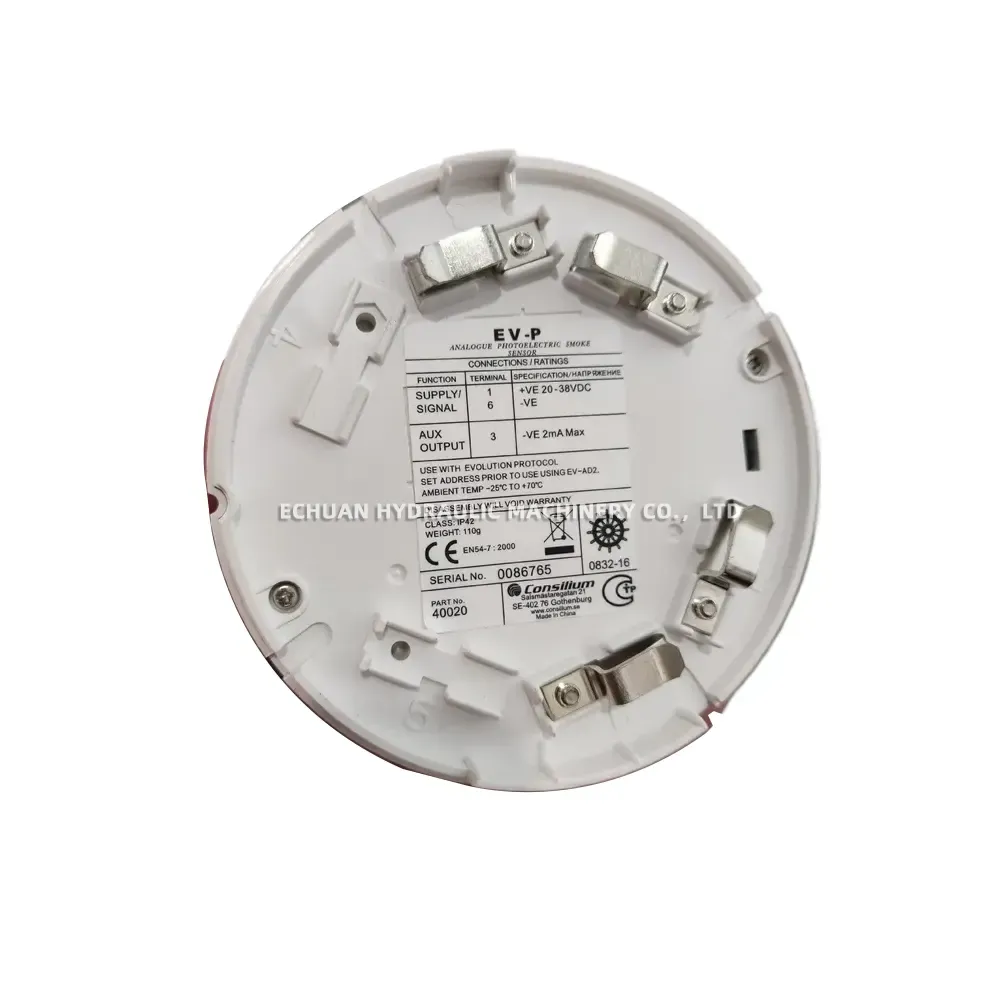

- Supply/Signal Voltage: 20-38VDC (+VE on Terminal 1, -VE on Terminal 6)
- Auxiliary Output: -VE 2mA Max (Terminal 3)
- Addressing: Must be set prior to use using the EV-AD2 programmer
- Ambient Temperature Range: -25°C to +70°C
- Protection Class (IP Rating): IP42
- Weight: 110g
- Certifications: CE, EN54-7:2000 (0832-16)
Consilium EV-P (Part No. 40020) Analogue Photoelectric Smoke Sensor
Ensure optimal fire safety with the Consilium EV-P (40020) Analogue Photoelectric Smoke Sensor. Featuring Evolution protocol compatibility, an IP42 rating, and EN54-7:2000 certification, this highly reliable 20-38VDC detector delivers rapid smoke detection for commercial, industrial, and marine environments.
