Product Description

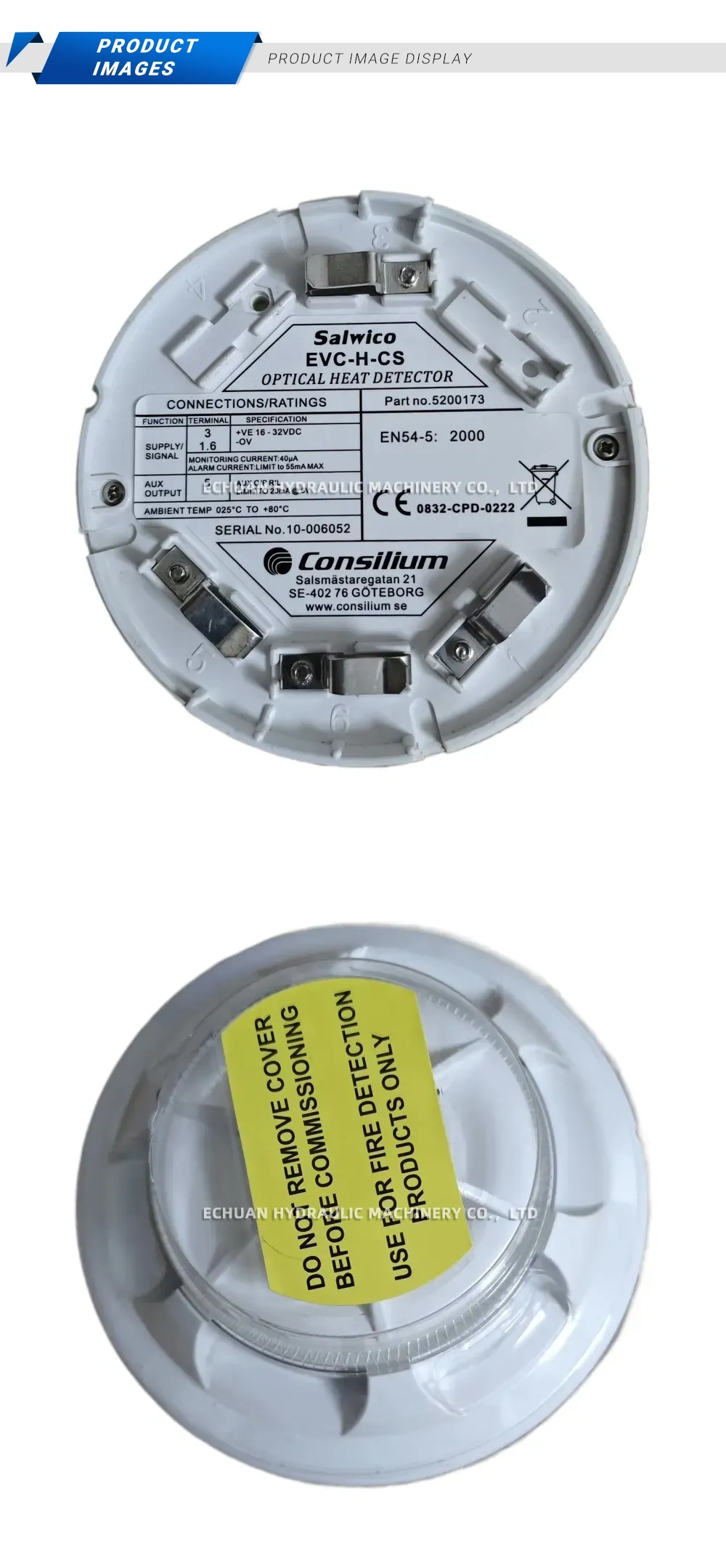

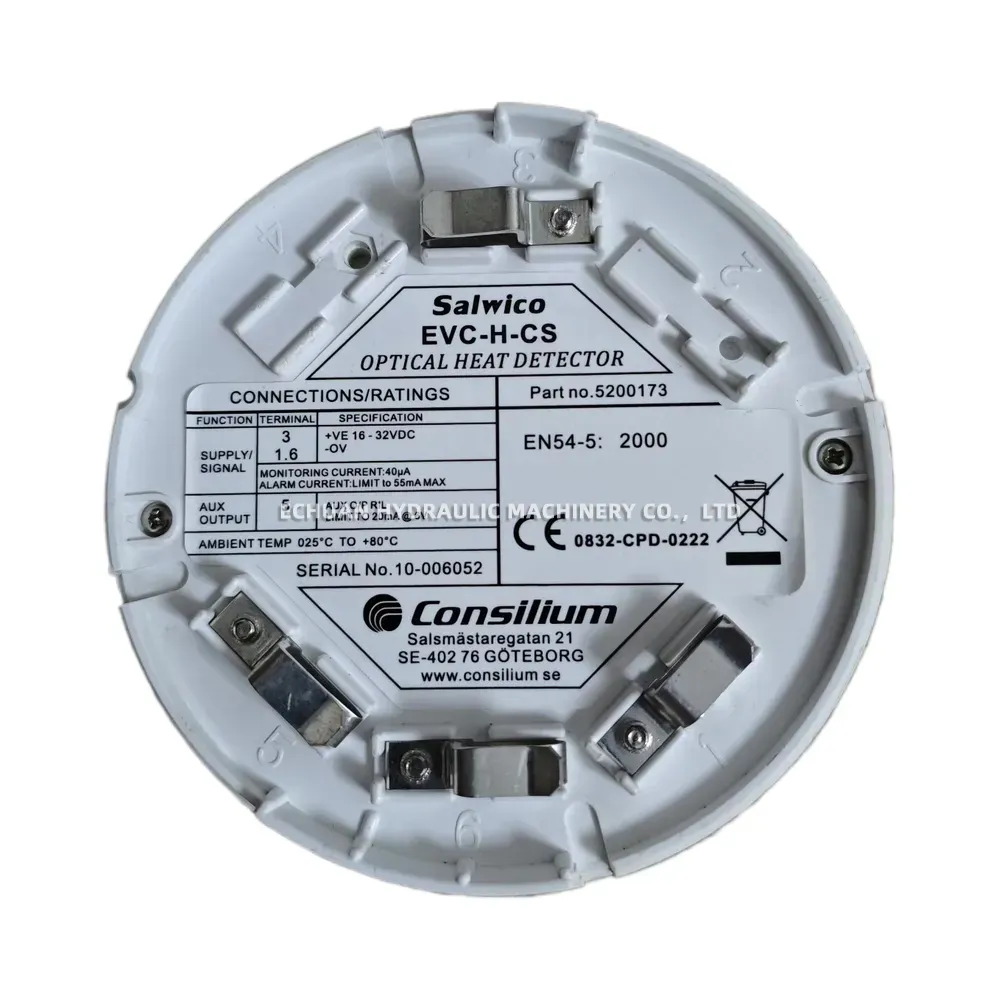

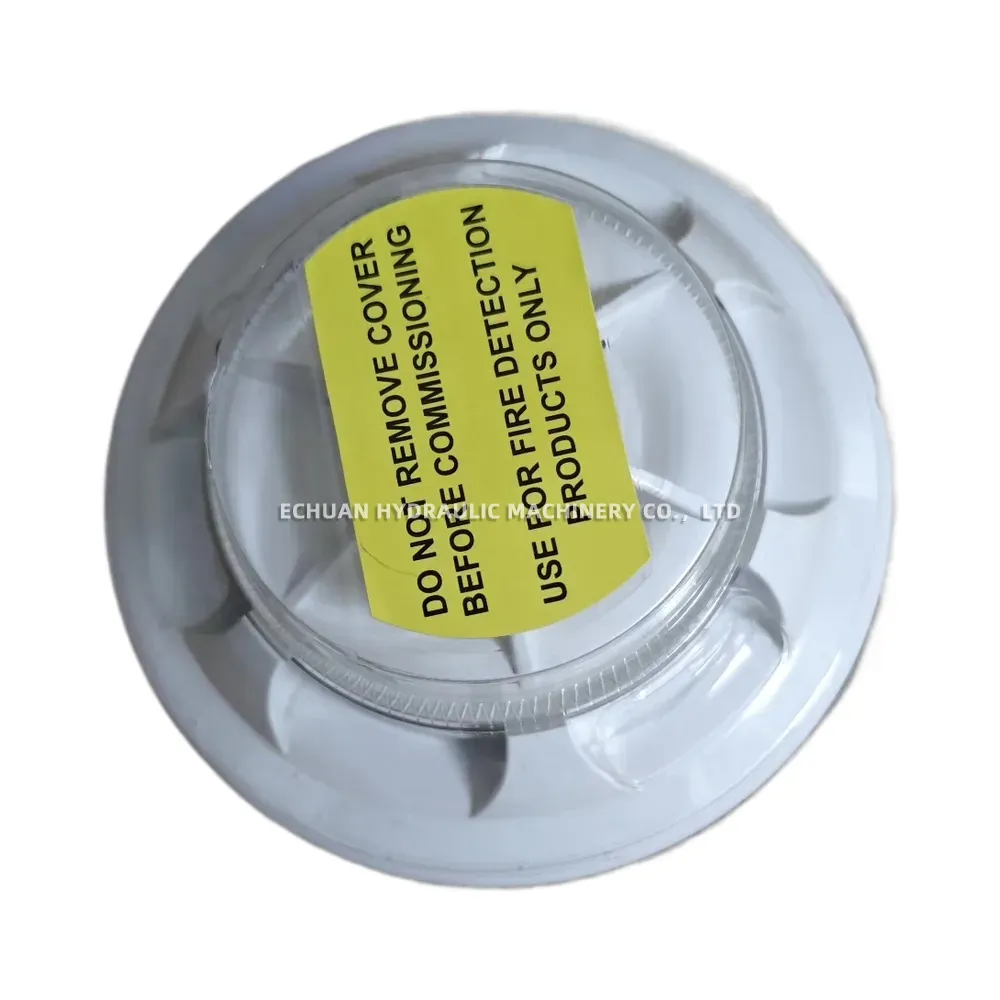

Consilium Salwico EVC-H-CS Optical Heat Detector
The Consilium Salwico EVC-H-CS (Part No. 5200173) is a highly reliable optical heat detector engineered for demanding marine and industrial fire alarm systems. Fully certified to EN54-5: 2000 (CE 0832-CPD-0222) standards, this detector ensures rapid and accurate response to rising temperatures, providing critical early warnings in the event of a fire. It features a robust design with an operating voltage of 16-32 VDC, an ultra-low monitoring current of 40 μA, and an auxiliary output for remote indication. Built to withstand harsh environments, the EVC-H-CS operates flawlessly in ambient temperatures ranging from -25°C to +80°C, making it an essential component for optimal safety and performance in your fire detection network.
Technical Specifications:
- Brand / Model: Consilium Salwico / EVC-H-CS
- Part Number: 5200173
- Certifications: EN54-5: 2000 (CE 0832-CPD-0222)
- Operating Voltage: 16 – 32 VDC
- Monitoring Current: 40 μA
- Alarm Current: Limited to 55 mA MAX
- Auxiliary Output: Limited to 20 mA @ 6V (Terminal 5 AUX O/P RIL)
- Ambient Temperature: -25°C to +80°C
Consilium EVC-H-CS Optical Heat Detector
Shop the Consilium Salwico EVC-H-CS Optical Heat Detector (Part No. 5200173) for reliable marine and industrial fire detection. EN54-5 certified, 16-32 VDC operation, and designed for extreme temperatures up to +80°C. Ensure maximum safety with this premium fire alarm component.
| Brand | Consilium |
|---|---|
| Model | EVC-H-CS |
| Part No. | 948258535375 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/consilium-evc-h-cs-optical-heat-detector |
