Product Description

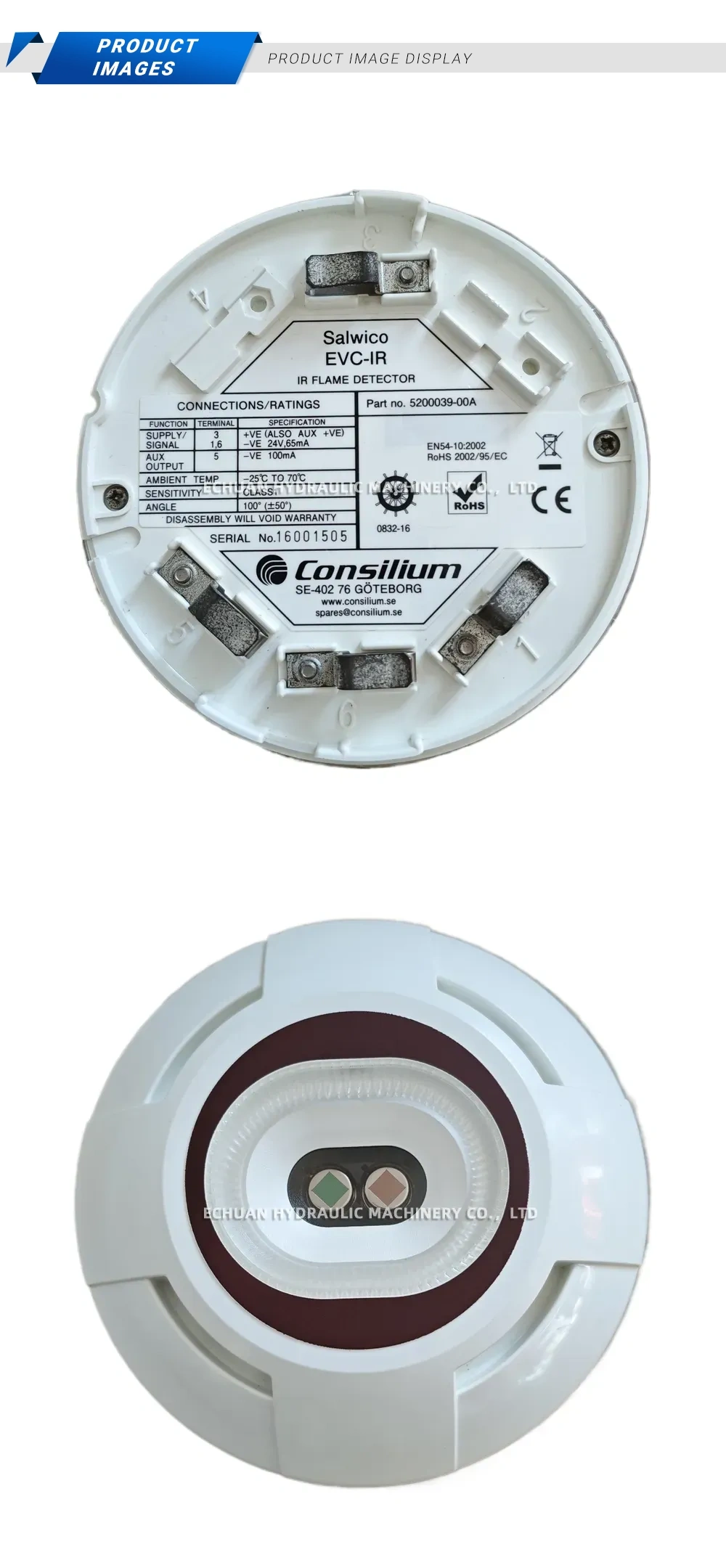

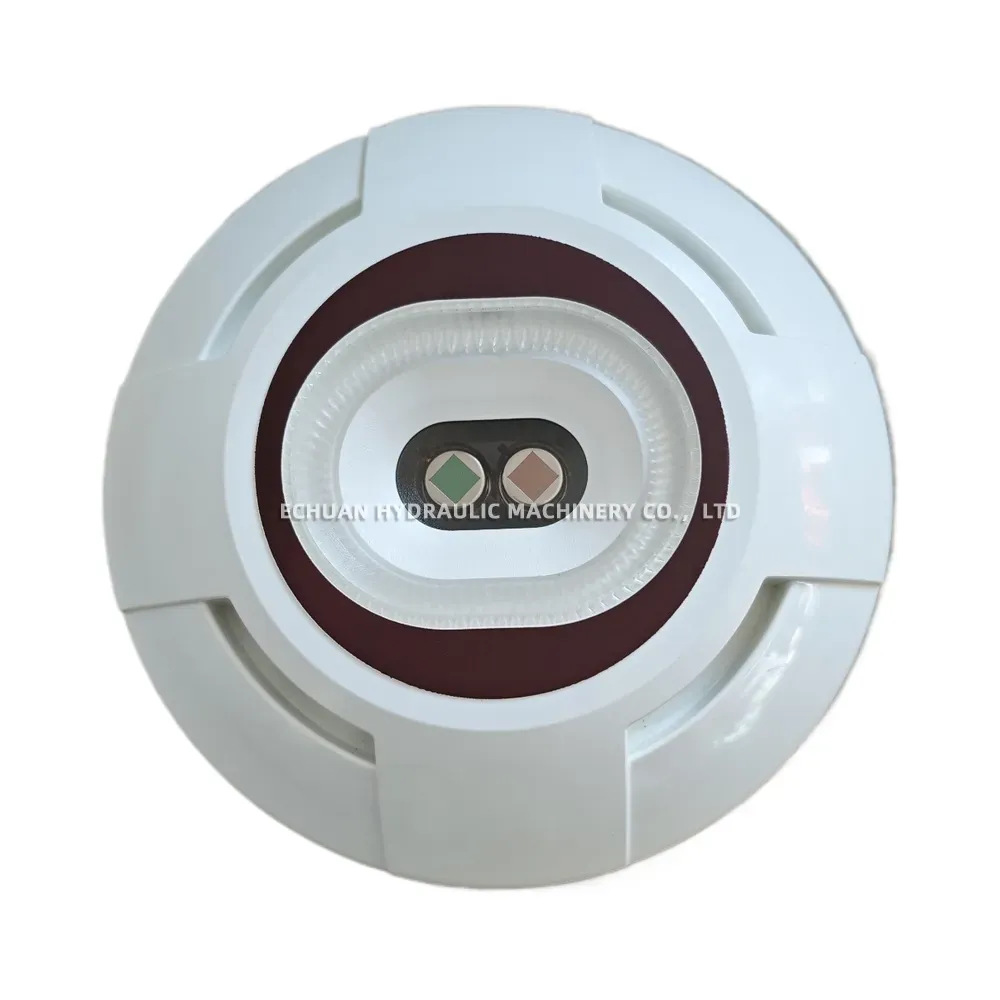

Consilium EVC-IR IR Flame Detector
The Consilium Salwico EVC-IR (Part No. 5200039-00A) is a highly reliable infrared flame detector engineered for rapid and accurate fire detection in demanding marine and industrial environments. Featuring Class 1 sensitivity and a wide 100° (±50°) detection angle, this detector ensures optimal coverage and swift response to flaming fires. Built to stringent safety standards, it is fully CE marked and certified to EN54-10:2002, guaranteeing dependable performance across a broad ambient temperature range of -25°C to 70°C.

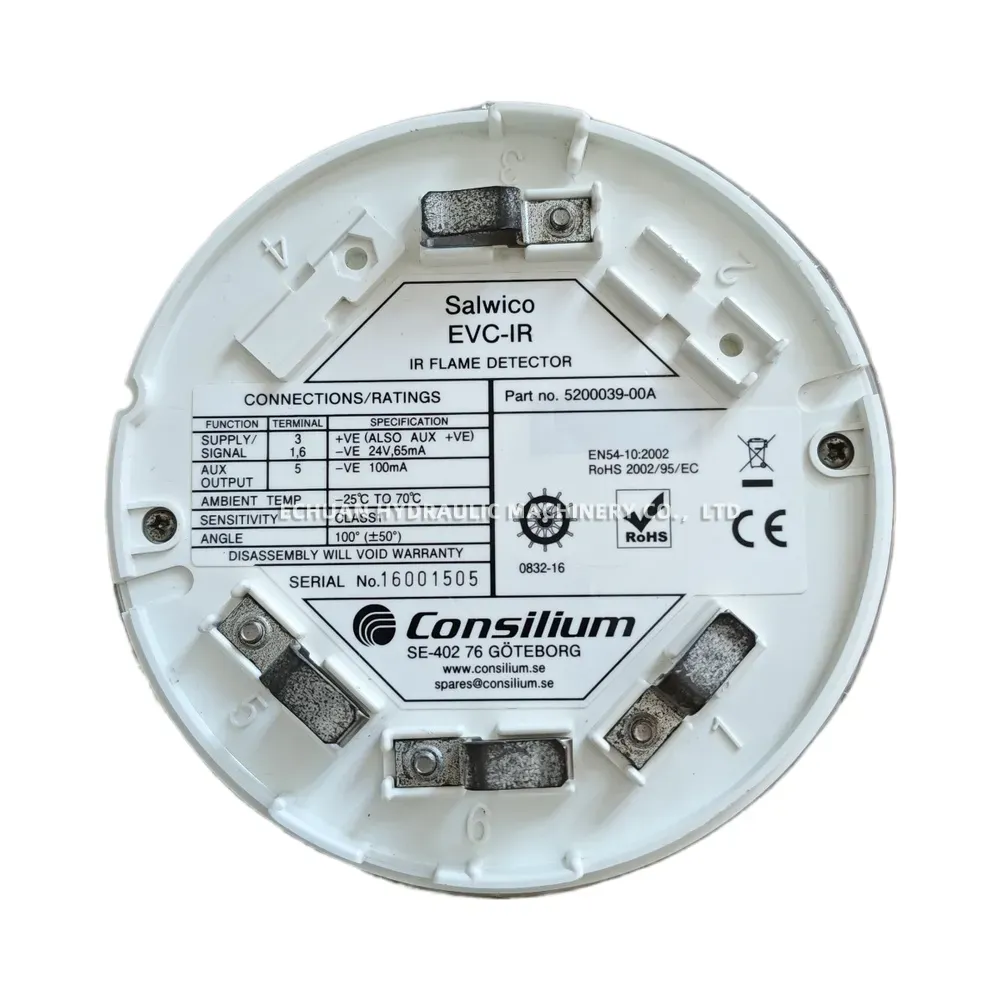

Technical Specifications:
- Brand / Model: Consilium Salwico EVC-IR
- Part Number: 5200039-00A
- Supply / Signal: Terminal 3 (+VE, also AUX +VE); Terminals 1,6 (-VE 24V 65mA)
- Auxiliary Output: Terminal 5 (-VE 100mA)
- Ambient Temperature: -25°C to 70°C
- Sensitivity: Class 1
- Detection Angle: 100° (±50°)
- Certifications: EN54-10:2002, CE Marked, RoHS 2002/95/EC Compliant
Consilium EVC-IR IR Flame Detector
Ensure maximum fire safety with the Consilium Salwico EVC-IR Infrared Flame Detector (Part No. 5200039-00A). This EN54-10 certified IR detector delivers Class 1 sensitivity, a 100° detection angle, and robust performance for marine and industrial fire alarm systems. Shop now for reliable, CE-marked fire detection solutions.
| Brand | Consilium |
|---|---|
| Model | EVC-IR |
| Part No. | 987812326435 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/consilium-evc-ir-ir-flame-detector |
