Product Description

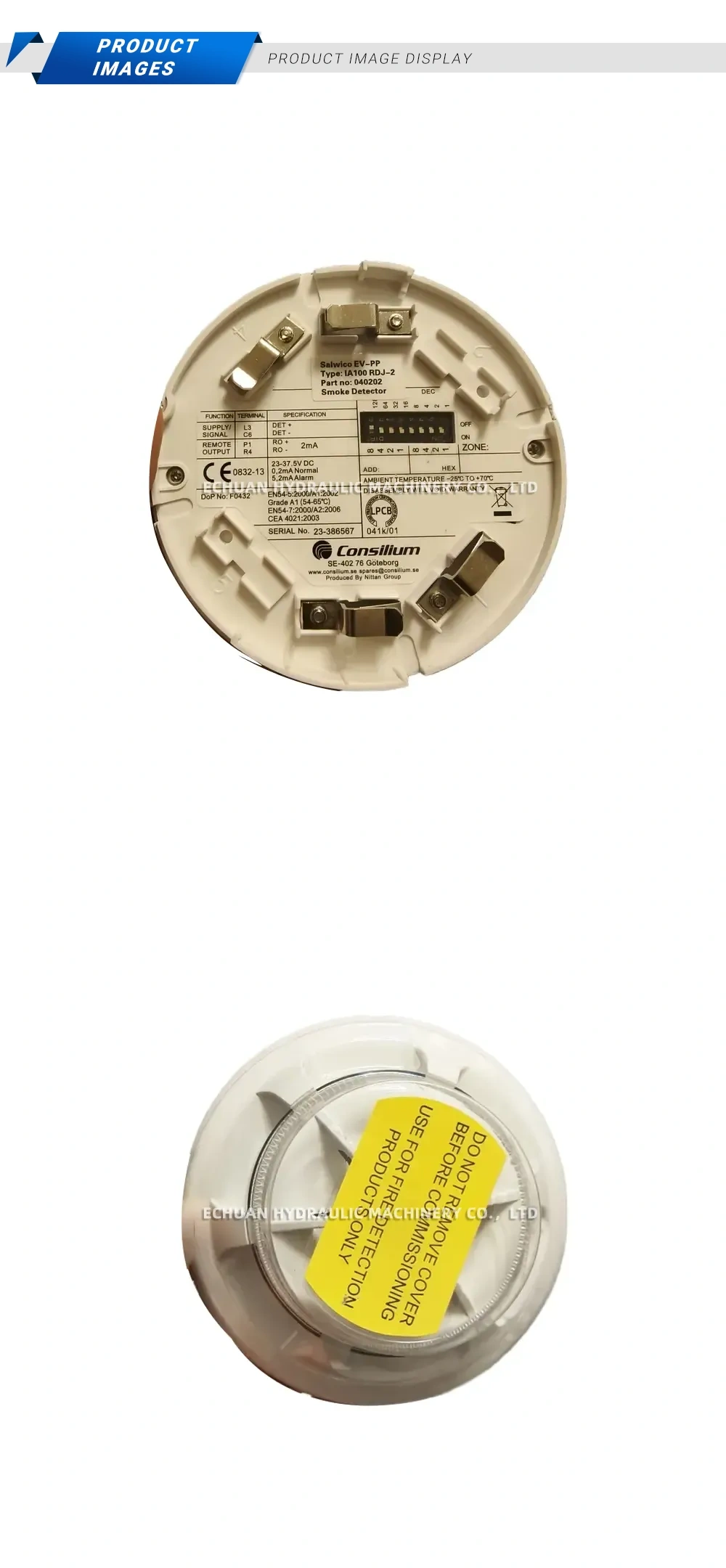

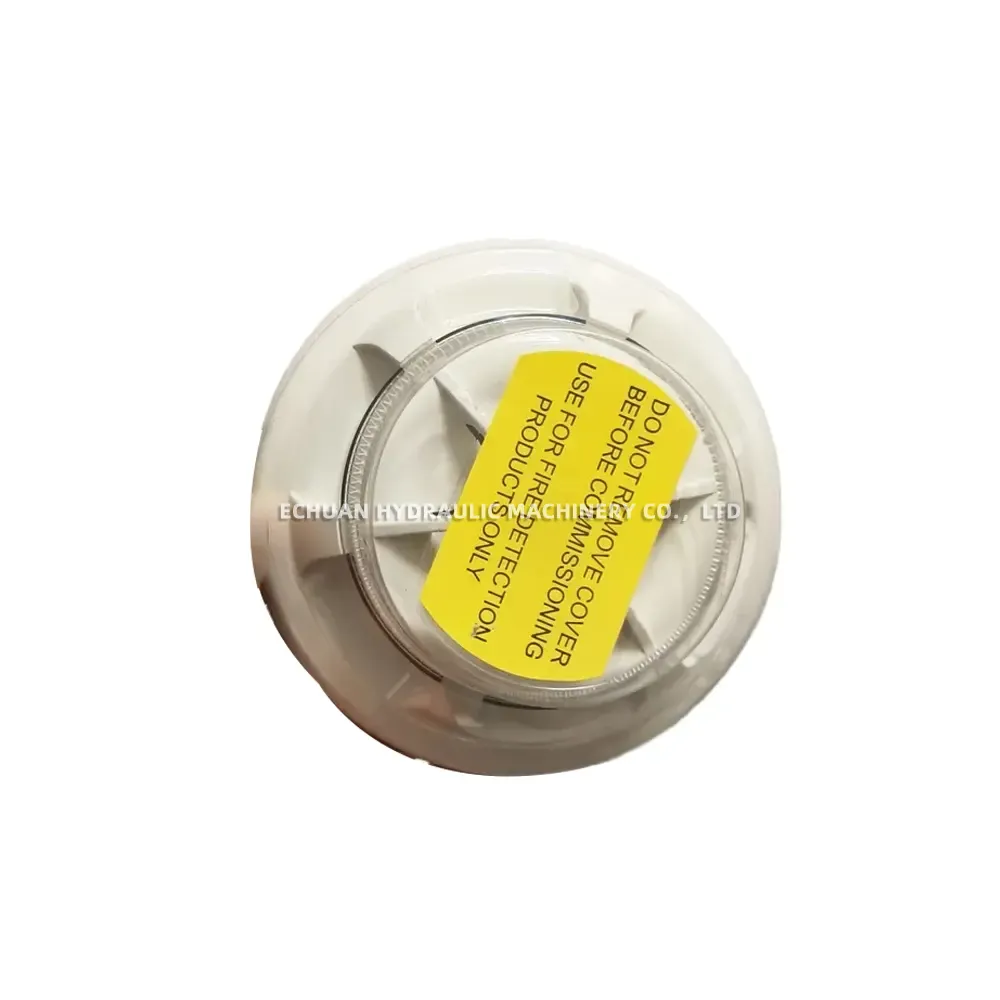

Consilium IA100 RDJ-2 Addressable Smoke Detector
The Consilium Salwico EV-PP (Model: IA100 RDJ-2, Part No: 040202) is a highly reliable addressable smoke detector engineered for advanced fire detection systems. Produced by the Nittan Group for Consilium, this detector ensures rapid and accurate early warning of fire hazards in demanding marine and industrial environments. It is equipped with integrated DIP switches for seamless address and zone configuration, alongside dedicated terminals for supply/signal and remote output. Fully compliant with stringent safety standards including EN54-5, EN54-7, and CEA 4021, the IA100 RDJ-2 delivers robust performance across a wide ambient temperature range of -25°C to +70°C.
Technical Specifications:
- Brand: Consilium (Produced by Nittan Group)
- Model: IA100 RDJ-2 (Salwico EV-PP)
- Part Number: 040202
- Operating Voltage: 23 – 37.5V DC
- Current Consumption: 0.2mA (Normal standby) / 5.2mA (Alarm state)
- Ambient Temperature Range: -25°C to +70°C

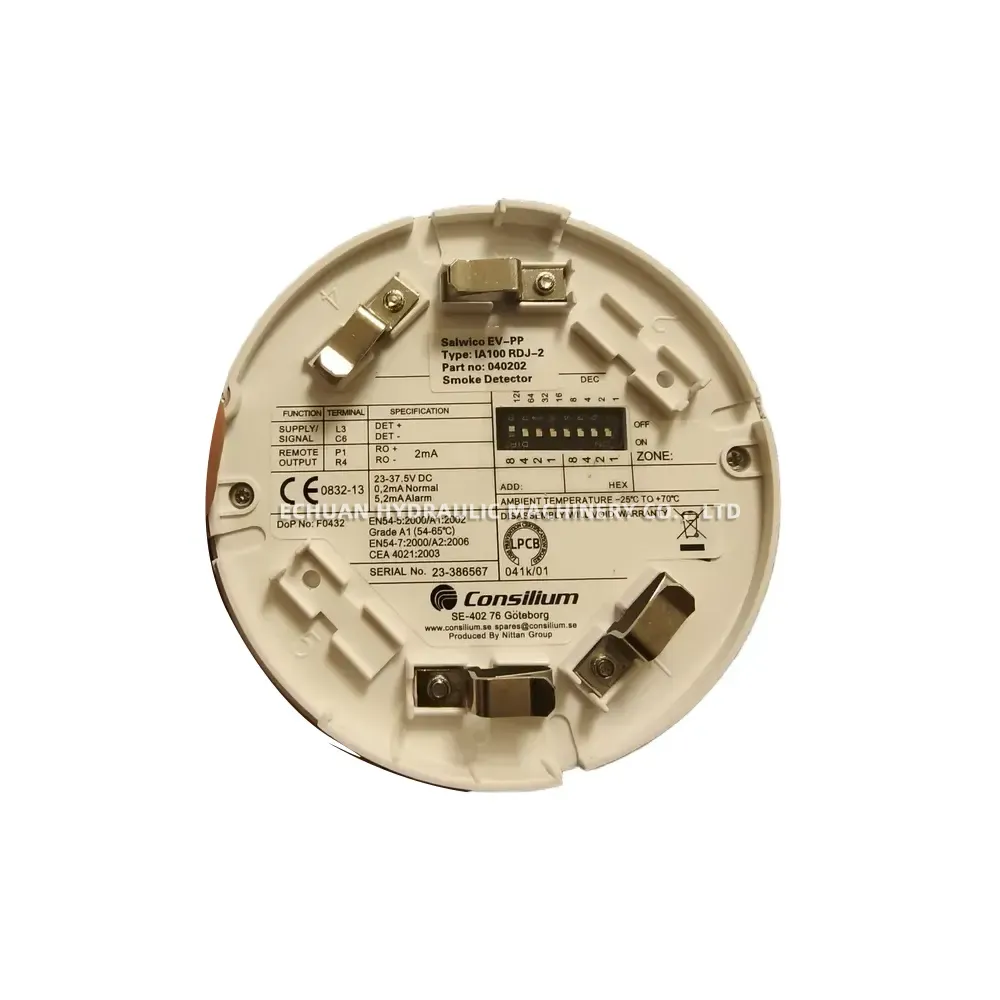

- Supply/Signal Terminals: L3 / C6 (DET+ / DET-)
- Remote Output Terminals: P1 / R4 (RO+ / RO-, 2mA)
- Addressing Method: Built-in DIP switches for address and zone setting
- Certifications & Compliance: CE 0832-13, LPCB 041k/01, DoP No: F0432
- Standards: EN54-5:2000/A1:2002 Grade A1 (54-65°C), EN54-7:2000/A2:2006, CEA 4021:2003
Consilium IA100 RDJ-2 Addressable Smoke Detector
Secure your marine or industrial facility with the Consilium IA100 RDJ-2 Addressable Smoke Detector (Part No: 040202). This EN54-compliant Salwico EV-PP sensor features 23-37.5V DC operation, easy DIP switch configuration, and reliable performance in extreme temperatures (-25°C to +70°C).
| Brand | Consilium |
|---|---|
| Model | IA100 RDJ-2 |
| Part No. | 1091021035285 |
| Category | Electrical |
