Product Description
Danfoss MBC5100 1211-3DB04 061B000666
The Danfoss MBC 5100 is a compact, block-type pressure switch designed for demanding industrial and marine applications. This model is engineered to withstand harsh conditions, offering exceptional vibration resistance and reliability. Its robust design and high enclosure rating make it suitable for use in machine rooms, on-deck equipment, and other challenging environments where space is a critical factor. The MBC 5100 series holds all major marine approvals, ensuring compliance and performance for critical alarm and control systems. This specific model, 061B000666, provides precise pressure monitoring and switching for a wide range of fluid and gas applications.

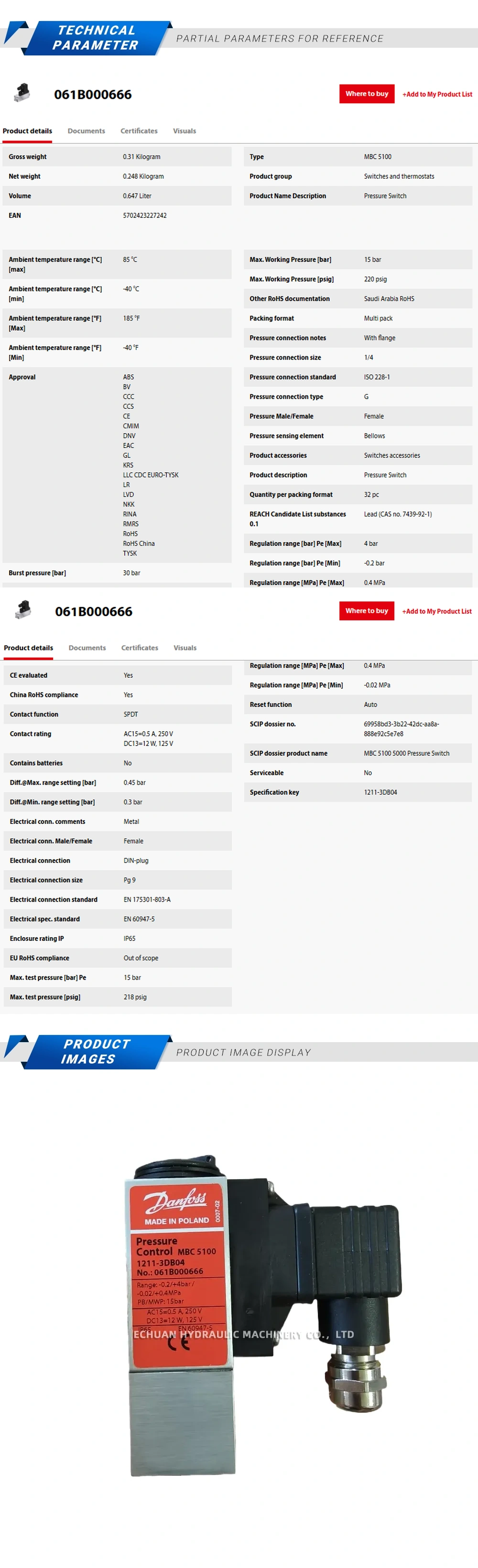

Technical Specifications:
- Model: MBC 5100, 1211-3DB04
- Part Number: 061B000666
- Pressure Range: 2 to 20 bar (29 to 290 psi)
- Differential: 1.2 bar (Fixed)
- Pressure Connection: G 1/4″ Female
- Contact Function: SPDT (Single Pole Double Throw)
- Enclosure Rating: IP65
- Approvals: LR, DNV, GL, RINA, ABS, BV, NKK, CCS, KRS

Danfoss MBC5100 1211-3DB04 061B000666
Buy the Danfoss MBC 5100 1211-3DB04 (061B000666) compact block-type pressure switch. This marine-approved switch features a 2-20 bar range, G 1/4″ connection, and SPDT contacts for reliable performance in harsh industrial environments.
