Product Description

Danfoss MBC5100 2031-1DB04 061B101766

The Danfoss MBC 5100 is a compact, block-type pressure switch designed for reliable performance in harsh industrial and marine environments. This model is engineered to withstand high levels of shock and vibration, making it ideal for demanding applications. Featuring a high-quality SPDT microswitch, an adjustable differential, and a wide range of marine approvals, the MBC 5100 ensures precise and durable pressure monitoring and control. Its robust IP65-rated enclosure guarantees protection against dust and water ingress, ensuring long operational life even in challenging conditions.

Technical Specifications:

  • Model: MBC 5100

  • Part Number: 061B101766

  • Pressure Range: 2 to 20 bar

  • Maximum Working Pressure: 60 bar

  • Adjustable Differential: 0.7 – 4.0 bar

  • Contact Function: SPDT (Single Pole Double Throw)

  • Pressure Connection: G 1/4 Female

  • Electrical Connection: DIN 43650-A Plug, Pg 11

  • Enclosure Rating: IP65

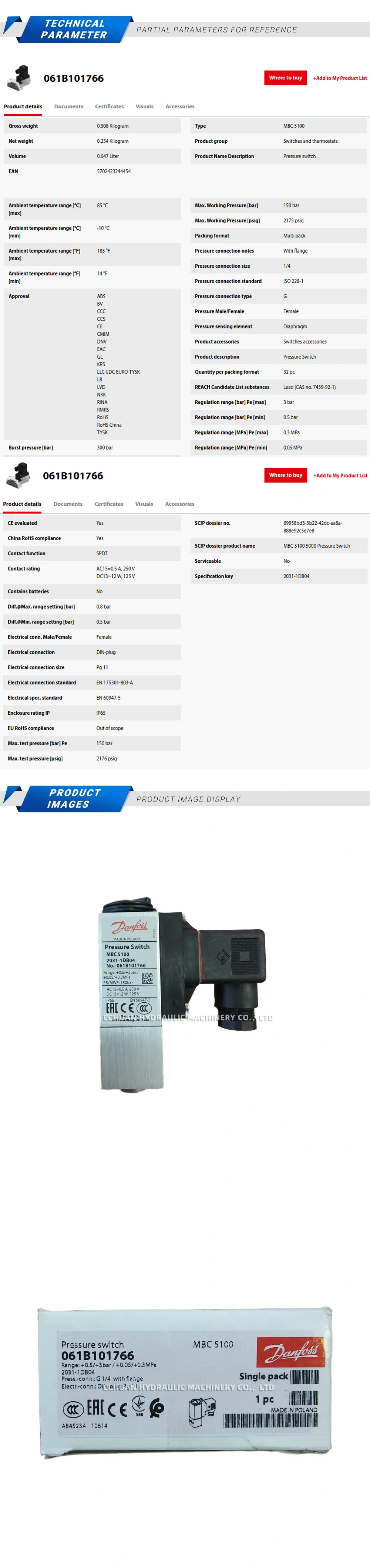

Danfoss MBC5100 2031-1DB04 061B101766 Description

Danfoss MBC5100 2031-1DB04 061B101766

Buy the Danfoss MBC5100 2031-1DB04 (part no. 061B101766), a robust block-type pressure switch with a 2-20 bar range. Marine-approved and IP65 rated, it’s ideal for harsh industrial applications.
