Product Description

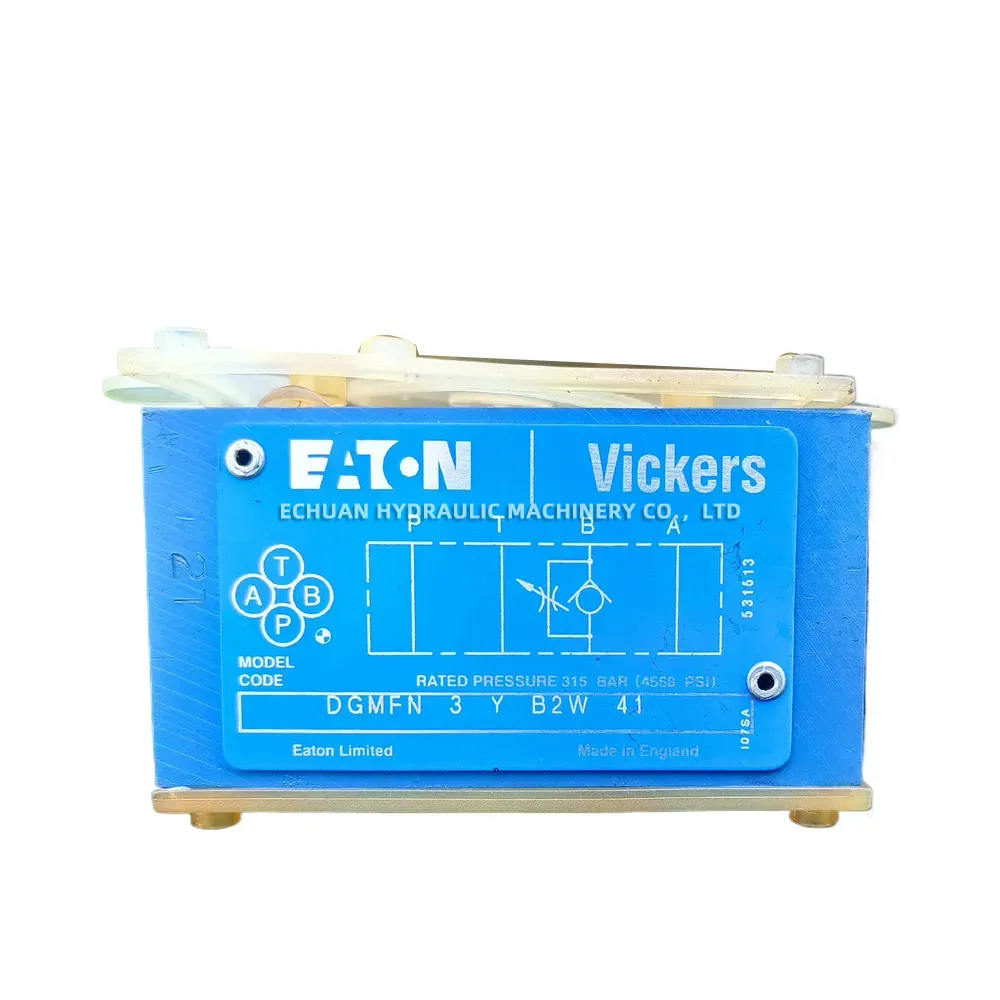

Eaton Vickers DGMFN-3-Y-B2W-41
The Eaton Vickers DGMFN-3-Y-B2W-41 is a high-performance modular hydraulic valve designed for precise flow regulation in industrial applications. As a pressure-compensated flow control valve, it maintains a consistent flow rate regardless of variations in system pressure. This NG6 (ISO 4401-03) sandwich plate valve is specifically configured (model ‘Y’) for meter-in and meter-out control in both A and B lines, typically used in conjunction with a 4-way directional control valve to manage actuator speed effectively. The DGMFN-3-Y-B2W-41 features screw adjustments with protective caps for setting flow rates and is built with NBR (Nitrile) seals, making it suitable for use with standard hydraulic mineral oils.

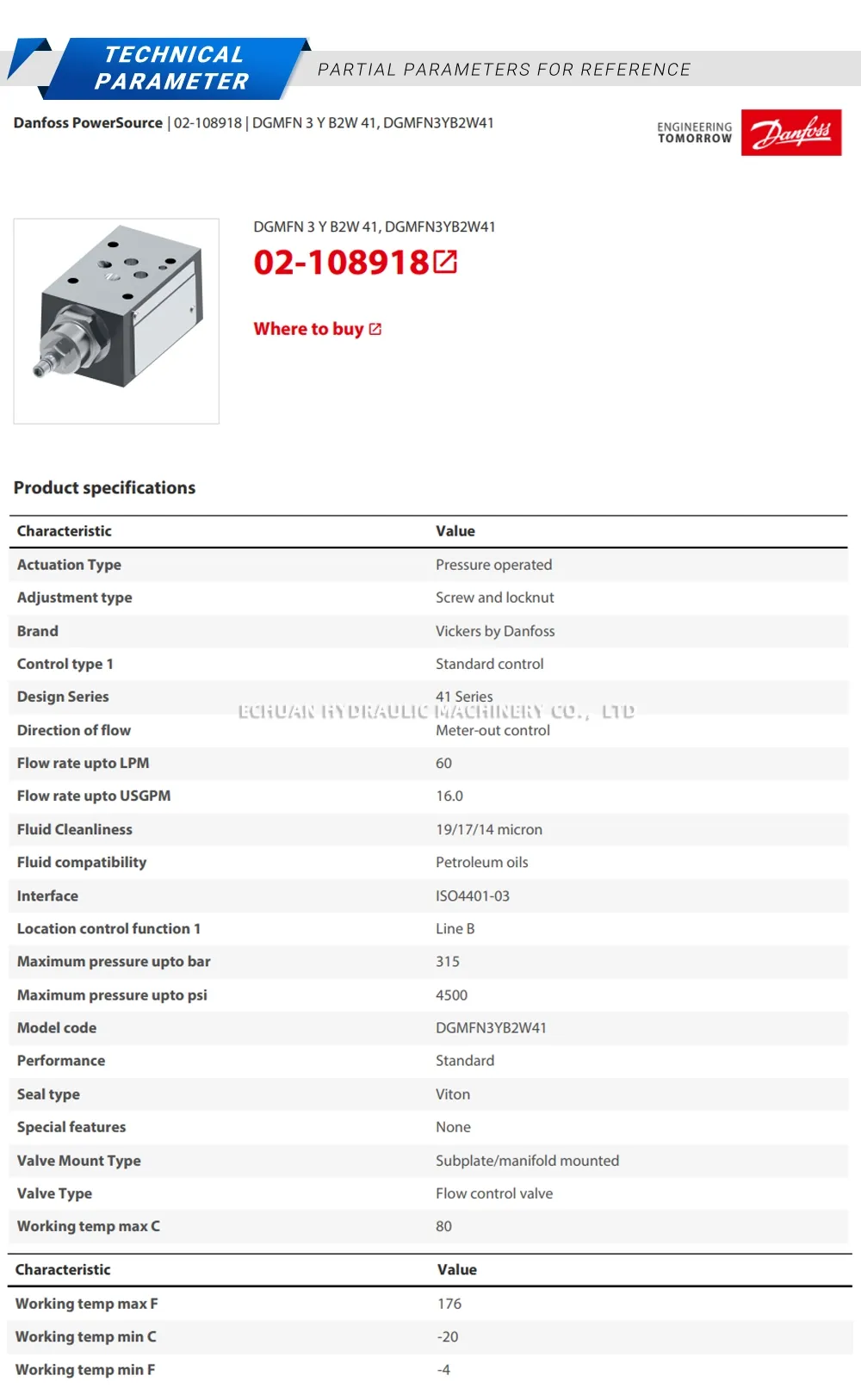

Technical Specifications:
- Valve Type: Pressure Compensated Modular Flow Control Valve
- Series: DGMFN-3
- Model: DGMFN-3-Y-B2W-41
- Mounting Interface: NG6 (CETOP 3, ISO 4401-03)
- Flow Control Function: Meter-in and meter-out for A and B lines (for use with 4-way directional valves)
- Adjustment Type: Screw adjustment with protective cap
- Maximum Operating Pressure (Ports P, A, B): 210 bar (3045 psi)
- Maximum Operating Pressure (Port T): 140 bar (2030 psi)
- Controlled Flow Range (per path, A or B): Up to 25 L/min (6.6 US gpm)
- Seal Material: NBR (Nitrile)
- Hydraulic Fluid Compatibility: Mineral oil (HL, HLP) according to DIN 51524
- Fluid Temperature Range: -20°C to +80°C (-4°F to +176°F) with NBR seals
- Recommended Fluid Viscosity Range: 10 to 500 cSt (mm²/s)
- Required Filtration: ISO 4406 Code 20/18/15 or better
- Approximate Weight: 0.9 kg (1.98 lbs)
Eaton Vckers DGMFN-3-Y-B2W-41
Model：Eaton Vckers DGMFN-3-Y-B2W-41
| Brand | Eaton Vckers |
|---|---|
| Model | DGMFN-3-Y-B2W-41 |
| Part No. | Eaton Vckers DGMFN-3-Y-B2W-41 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/eaton-vckers-dgmfn-3-y-b2w-41 |
