Product Description
EEV MG5436

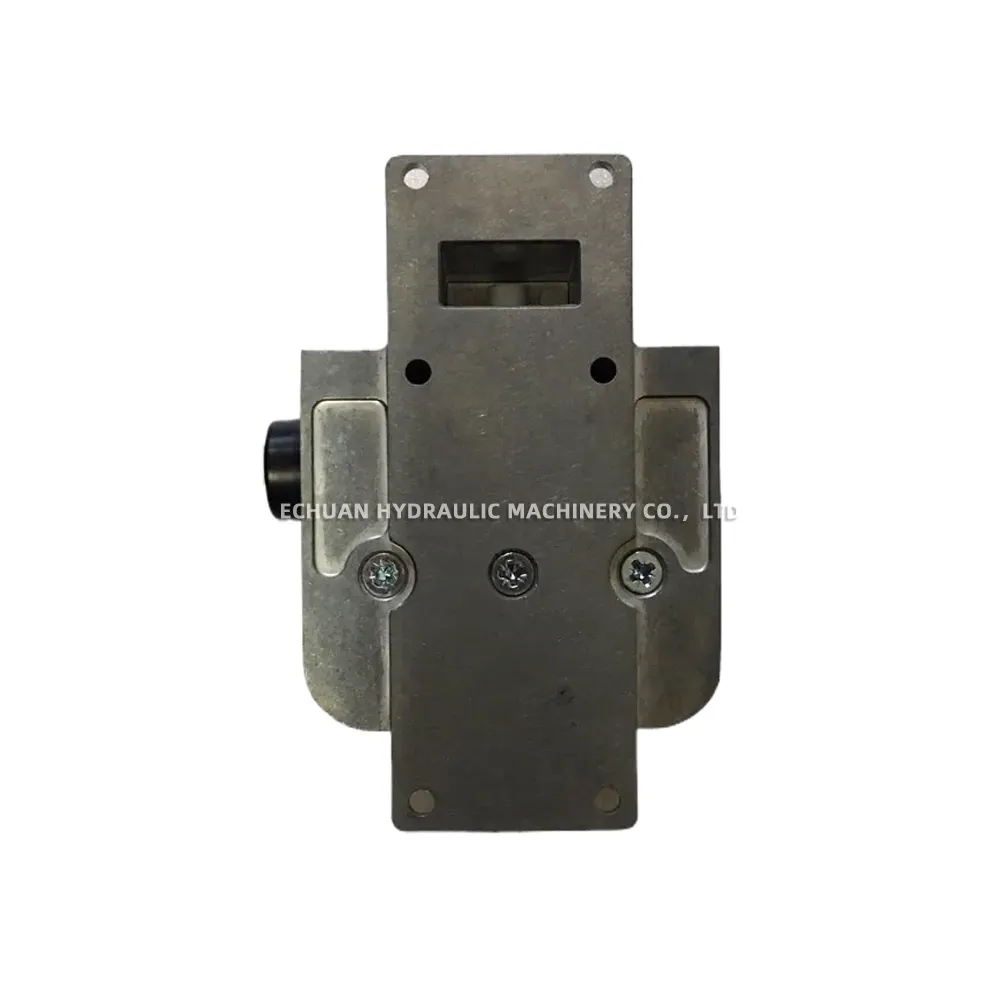

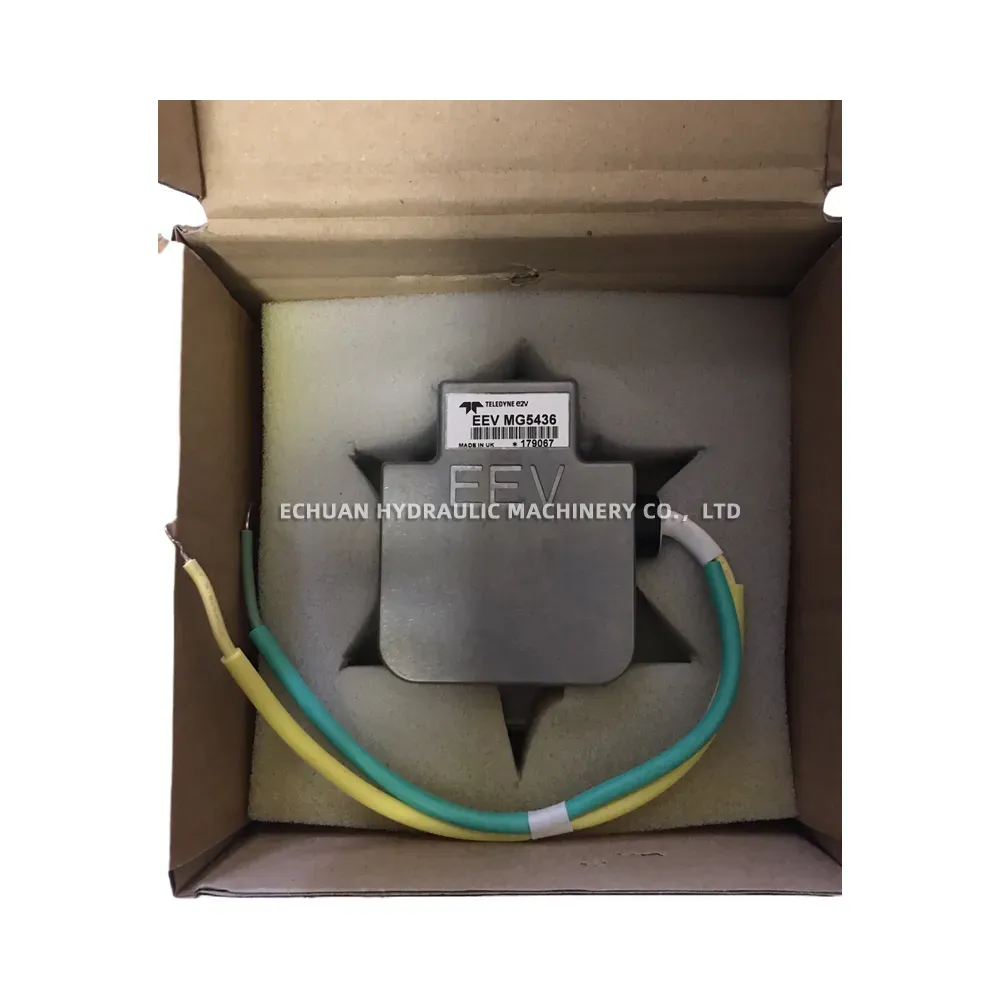

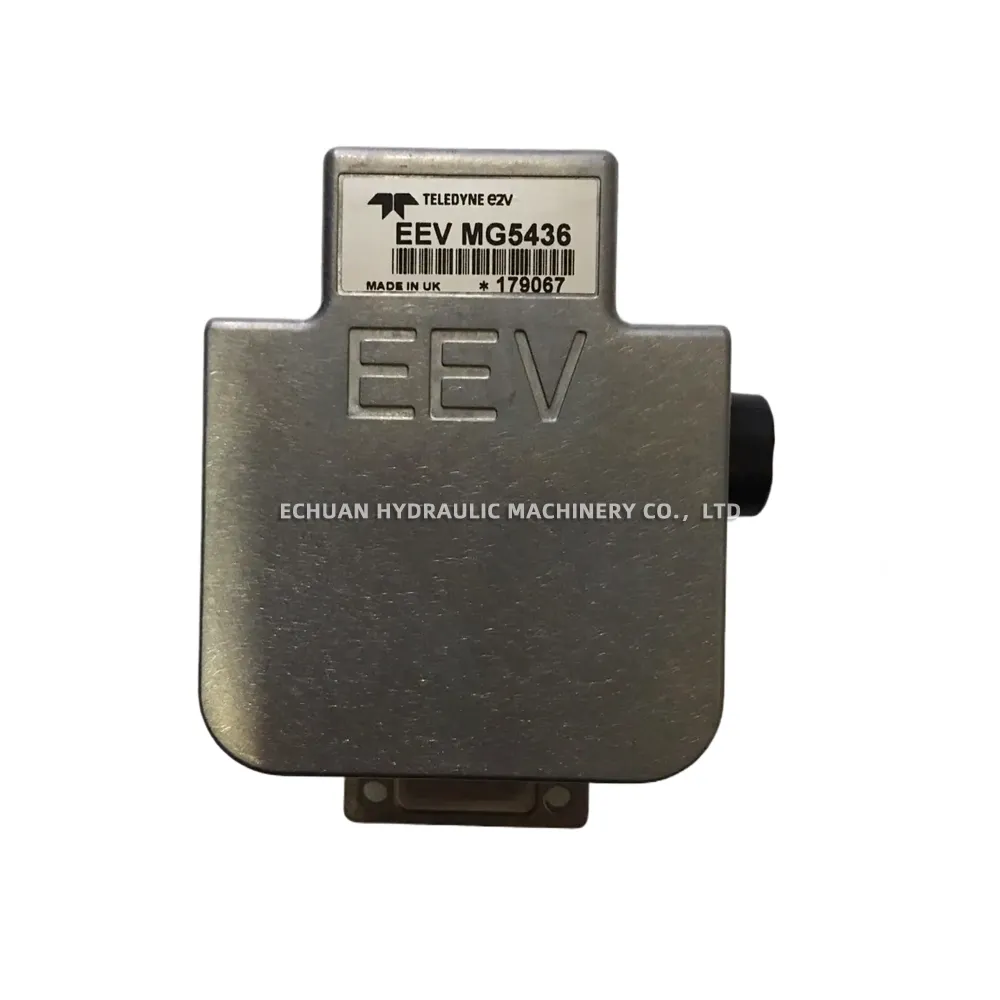

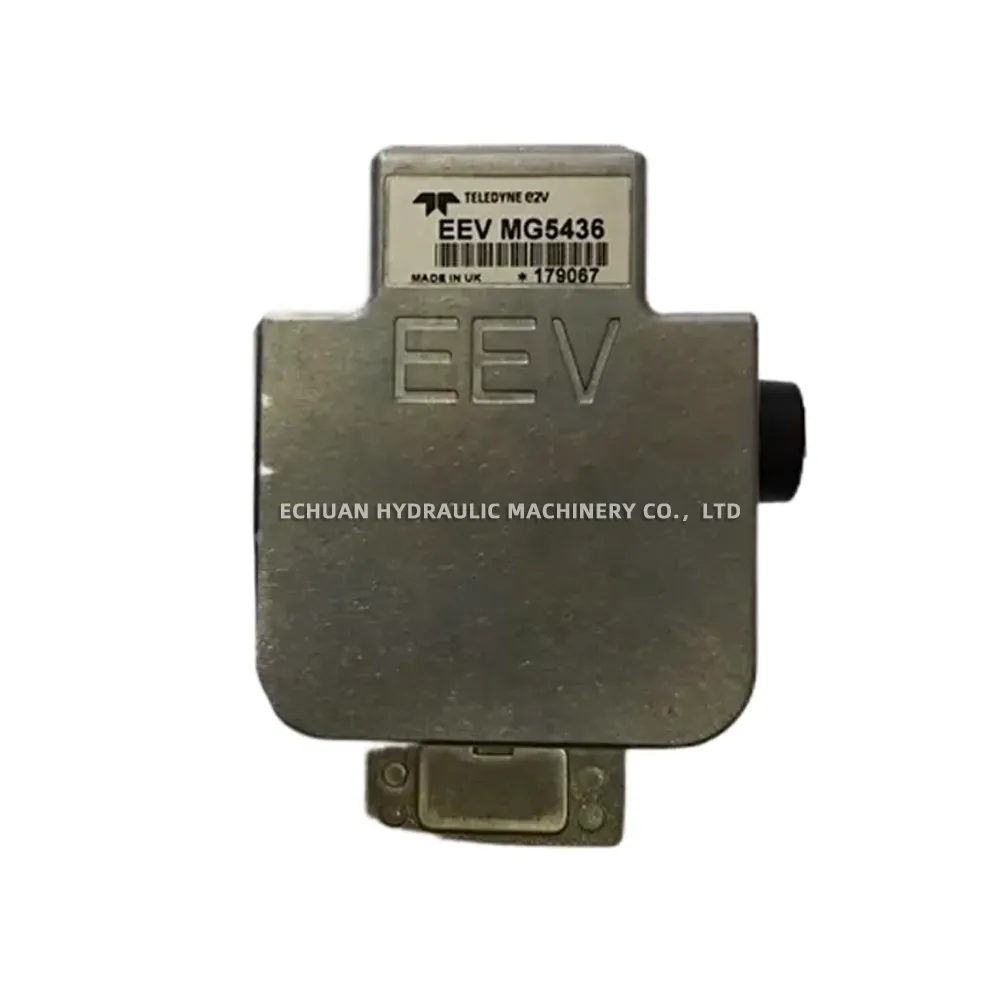

The EEV MG5436 is a mechanically tuned pulse magnetron designed primarily for X-band radar applications, particularly in marine radar systems. It is a compact and rugged device capable of delivering a typical peak output power of 25 kW. This magnetron operates within the 9345 to 9405 MHz frequency range and is known for its reliability and stable performance in demanding environments.

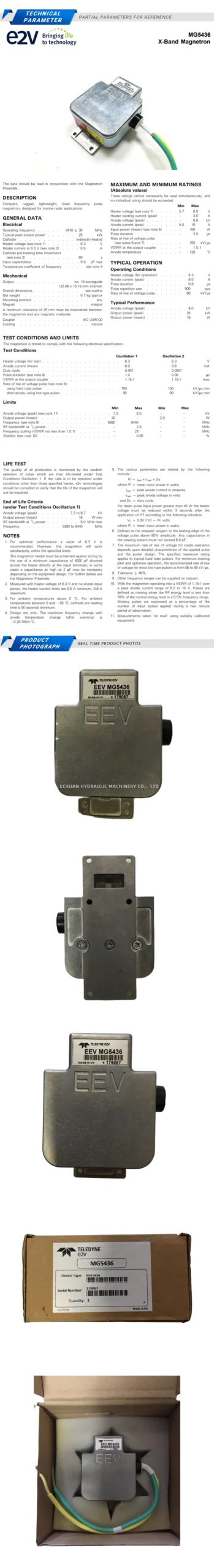

Technical Specifications:
- Frequency Range (Mechanically Tuned): 9345 – 9405 MHz
- Typical Peak Output Power: 25 kW
- Maximum Duty Cycle: 0.001
- Typical Peak Anode Voltage: 8.0 kV
- Heater Voltage: 6.3 V
- Typical Heater Current: 0.5 A
- Output Coupling: No. 16 Waveguide (WR90 compatible)
- Cooling: Conduction and natural convection
- Cathode Type: Oxide, Unipotential
- Weight: Approximately 0.68 kg (1.5 lbs)
EEV MG5436
Model:EEV MG5436
| Brand | EEV |
|---|---|
| Model | MG5436 |
| Part No. | EEV MG5436 |
| Category | Electrical |
