Product Description

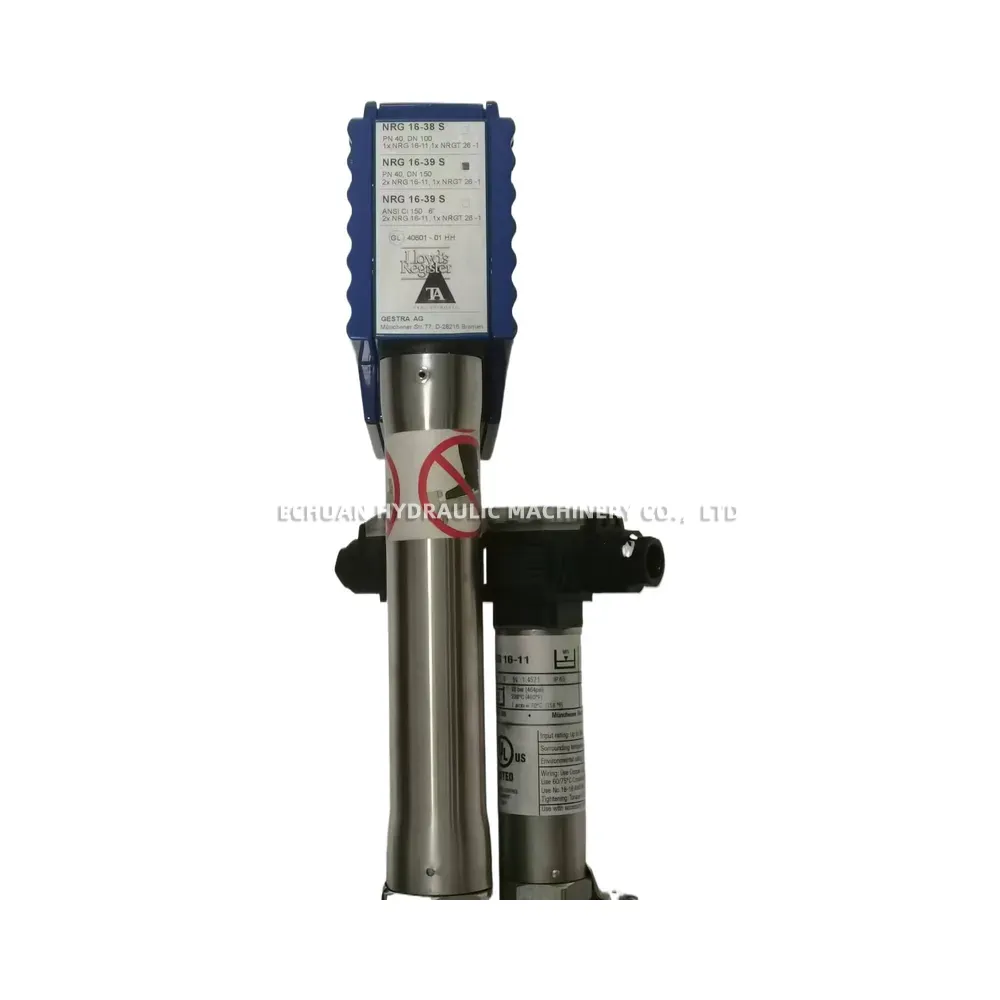

GESTRA NRG 16-39S

The GESTRA NRG 16-39S is a compact level electrode designed for water level control and limitation in steam boilers, pressurized hot-water installations, as well as condensate and feedwater tanks. It operates based on the conductive measurement principle and is used in conjunction with GESTRA level switches (e.g., NRS 1-.. series) to provide reliable level monitoring and control for various industrial applications. Its robust construction ensures durability in demanding environments, making it suitable for detecting liquid levels in conductive fluids.

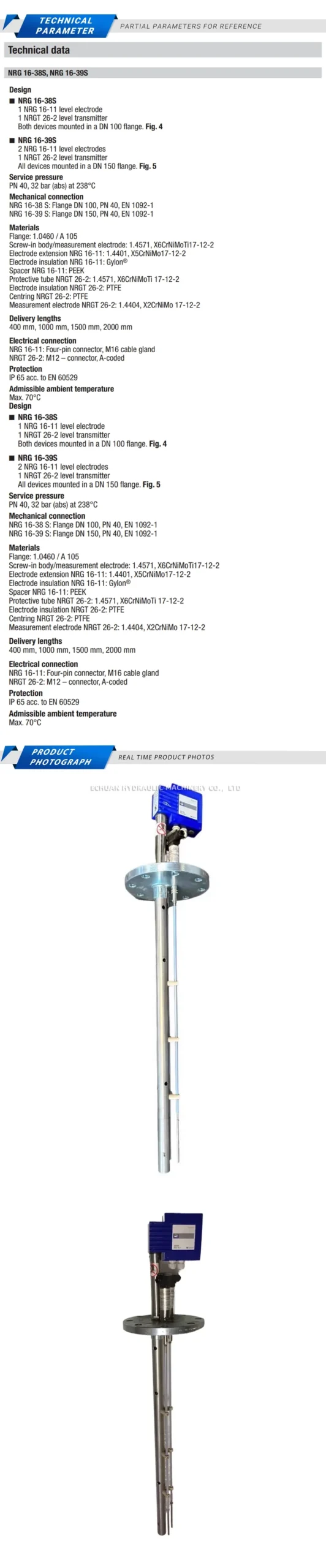

Technical Specifications:

Nominal Pressure: PN 40
Max. Service Pressure: 32 bar at 239 °C (464 psi at 462 °F)
Max. Service Temperature: 239 °C (462 °F)
Process Connection: Screwed G ¾ A (ISO 228-1) or ¾” NPT (depending on specific model variant)
Electrode Rod Material: Stainless Steel (e.g., 1.4571 / AISI 316Ti)
Electrode Insulation: PTFE (Polytetrafluoroethylene)
Electrical Connection: Cable gland M16 x 1.5
Protection Class: IP65 (when correctly installed with cable gland)
Application: Conductive level detection in steam boilers, hot water installations, condensate and feedwater tanks
Compatibility: Designed for use with GESTRA level switches such as NRS 1-39, NRS 1-40, NRS 1-41
Standard Lengths: Various standard lengths available; can be shortened to a minimum length (typically around 100 mm)
