Product Description

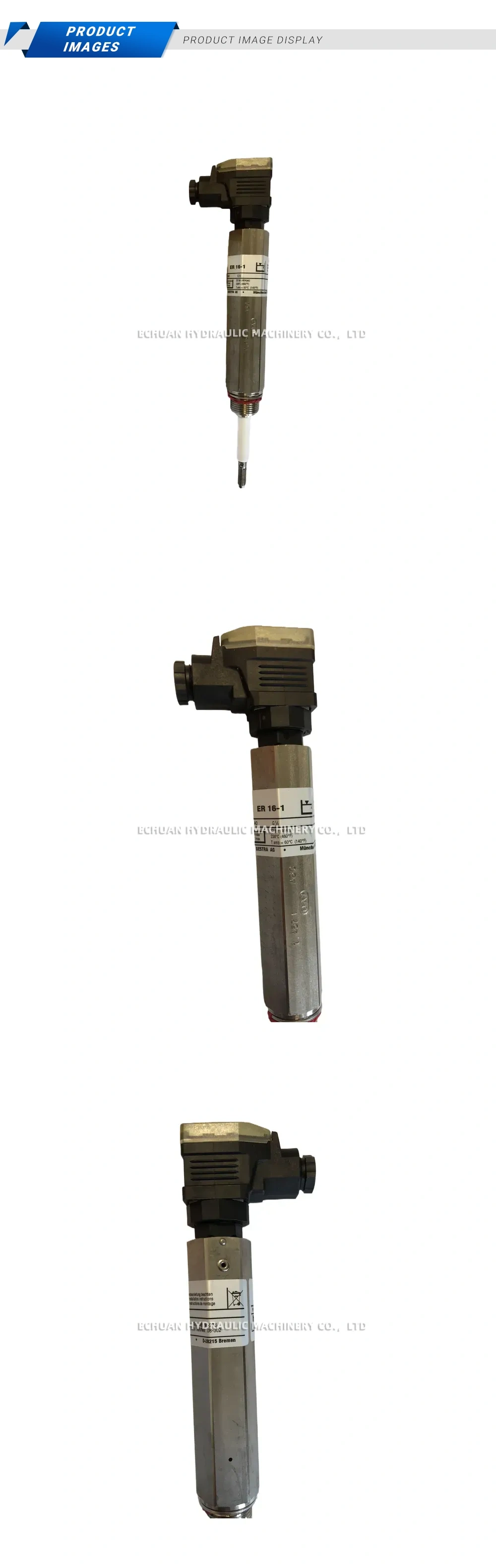

Gestra ER 16-1
The Gestra ER 16-1 is a robust and reliable level electrode designed for level detection and high/low level alarms in electrically conductive liquids. It is particularly well-suited for applications in steam boilers, condensate tanks, and feedwater tanks. The ER 16-1 operates in conjunction with Gestra level controllers (such as the NRS 1-x series) to provide accurate switching points for pumps, valves, or alarm systems. Its durable construction ensures long service life even under demanding pressure and temperature conditions.
Technical Specifications:
- Model: ER 16-1
- Nominal Pressure: PN 40
- Max. Service Pressure: 32 bar at 238 °C
- Connection: Screwed G ¾ A, ISO 228
- Materials: Electrode body C 22.8 (1.0460), electrode tip stainless steel 1.4571
- Insulation: PTFE (Polytetrafluoroethylene)
- Compatibility: For use with level controllers NRS 1-.., NRR 1-..
Gestra ER 16-1
Gestra ER 16-1 level electrode for reliable high/low level detection in steam boilers and other conductive liquids. Features a PN 40 rating, G ¾ A connection, and is designed for use with Gestra level controllers.
