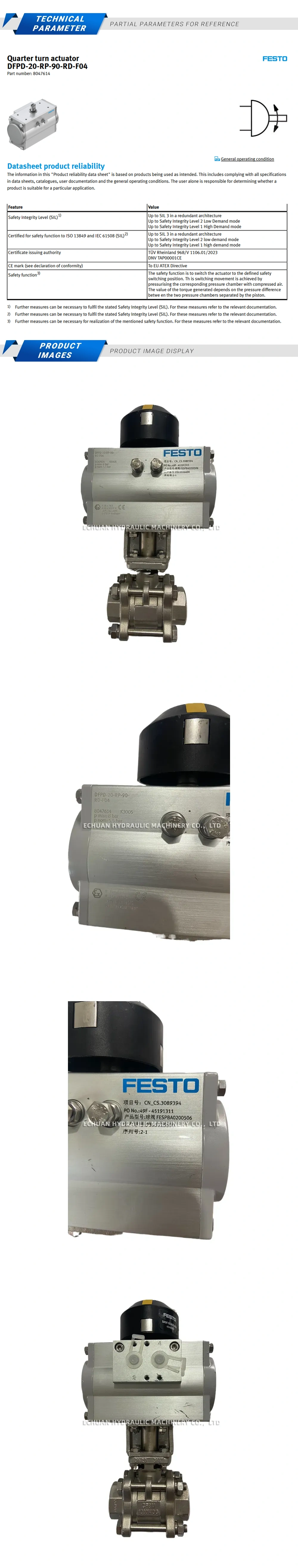

Product Description
Festo DFPD-20-RP-90-RD-F04 8047614
The Festo DFPD-20-RP-90-RD-F04 is a robust and reliable double-acting pneumatic quarter-turn actuator designed for industrial automation. Utilizing a proven rack and pinion principle, it delivers consistent and precise rotary motion for controlling process valves such as ball valves and butterfly valves. Its compact design and standardized interface according to ISO 5211 (F04) ensure easy integration into new or existing systems. Built for durability, the DFPD series is suitable for a wide range of operating conditions, making it a versatile choice for process automation applications.
Technical Specifications:
- Part Number: 8047614
- Actuator Size: 20
- Mode of Operation: Double-acting
- Swivel Angle: 90 deg
- Operating Pressure: 2 … 8 bar
- Torque at 6 bar: 10 Nm
- Flange Hole Pattern: F04 in accordance with ISO 5211
- Pneumatic Connection: G1/8
Festo DFPD-20-RP-90-RD-F04 8047614
Discover the Festo DFPD-20-RP-90-RD-F04 (8047614), a double-acting pneumatic quarter-turn actuator. Featuring a rack and pinion design, it provides 90° rotation and 10 Nm torque for reliable valve automation.
