Product Description

Festo MS6-LR-3/8-D7-AS

The Festo MS6-LR-3/8-D7-AS is a high-performance pressure regulator from the MS series, designed for precise and reliable control of compressed air in industrial pneumatic systems. This unit features a directly-controlled diaphragm design, ensuring stable output pressure regardless of input pressure fluctuations. It comes equipped with a lockable rotary knob to prevent unauthorized adjustments and includes an integrated pressure gauge for easy monitoring. With its robust construction and high flow rate, the MS6-LR-3/8-D7-AS is an ideal solution for demanding applications requiring consistent air pressure management.

Technical Specifications:

  • Size: 6

  • Pneumatic Connection: G3/8

  • Pressure Regulation Range: 0.5 … 7 bar

  • Standard Nominal Flow Rate: 4,000 l/min

  • Actuator Lock: Rotary knob with lock

  • Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4], Inert gases

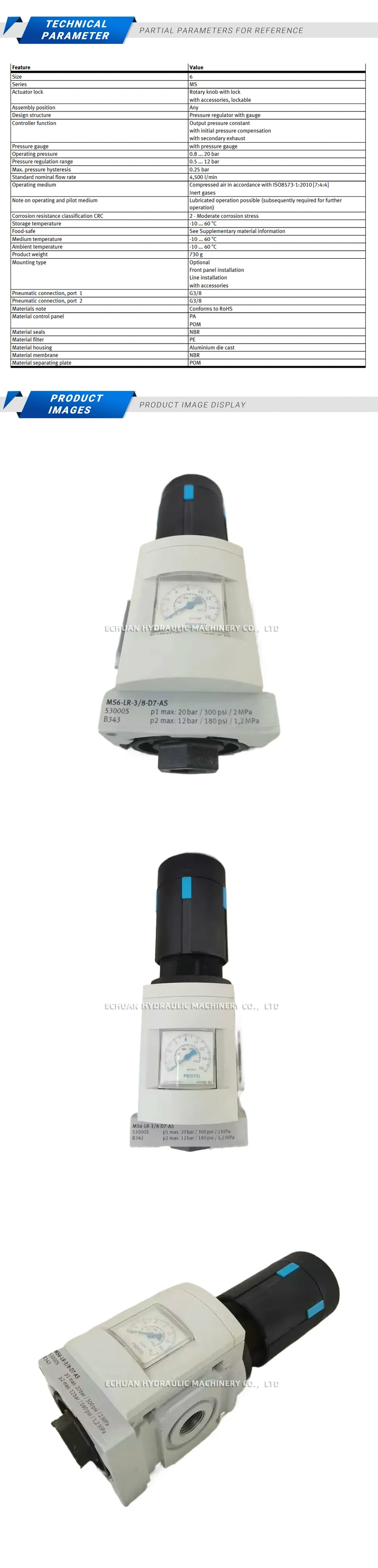

Festo MS6-LR-3/8-D7-AS Description

Festo MS6-LR-3/8-D7-AS

Festo MS6-LR-3/8-D7-AS pressure regulator with G3/8 connection, 0.5-7 bar range, and integrated gauge. High-flow, lockable unit for precise pneumatic system control.

BrandFesto
ModelMS6-LR-3/8-D7-AS
CategoryOther products
Linkhttps://www.echuan-hydraulic.com/product/festo-ms6-lr-3-8-d7-as
