Product Description
Festo VZWF-L-M22C-G2-500-E-1P4-6-R1 1492141
The Festo VZWF-L-M22C-G2-500-E-1P4-6-R1 is a high-performance, force pilot operated solenoid valve designed for applications requiring high flow rates with minimal pressure differential. As a 2/2-way, normally closed (NC) valve, it reliably controls the flow of various media, including compressed air, inert gases, and neutral fluids like water. Its robust brass housing and durable EPDM seals ensure longevity and compatibility with a wide range of operating temperatures. The force pilot design allows the valve to switch reliably even from 0 bar, making it exceptionally versatile for both closed and open systems, such as filling, dosing, or draining applications.

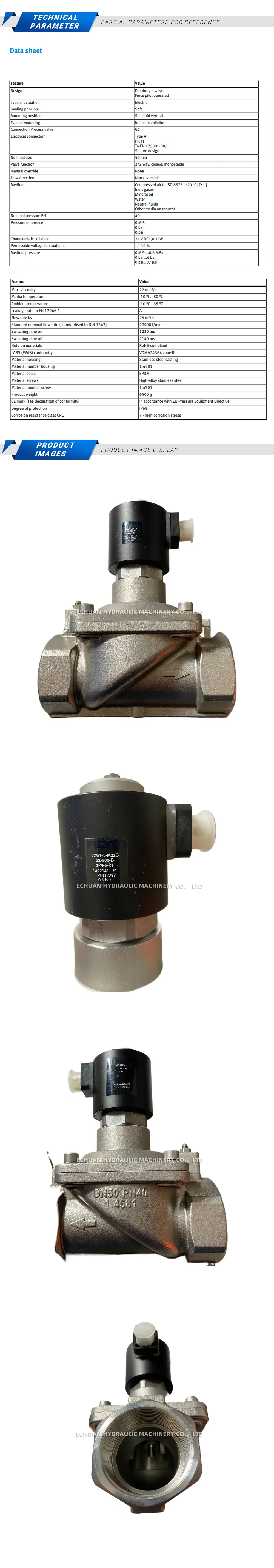

Technical Specifications:
- Part Number: 1492141
- Valve function: 2/2-way, normally closed
- Pneumatic connection: G2
- Nominal size: 50 mm
- Operating pressure: 0 … 6 bar
- Standard nominal flow rate: 40,000 l/min
- Housing material: Brass
- Seals material: EPDM
- Medium temperature: -10 … 80 °C
Festo VZWF-L-M22C-G2-500-E-1P4-6-R1 1492141
Order the Festo VZWF-L-M22C-G2-500-E-1P4-6-R1 (1492141), a G2 2-inch normally closed solenoid valve. This force pilot valve features a brass body and EPDM seals, ideal for high flow applications from 0 to 6 bar.
