Product Description

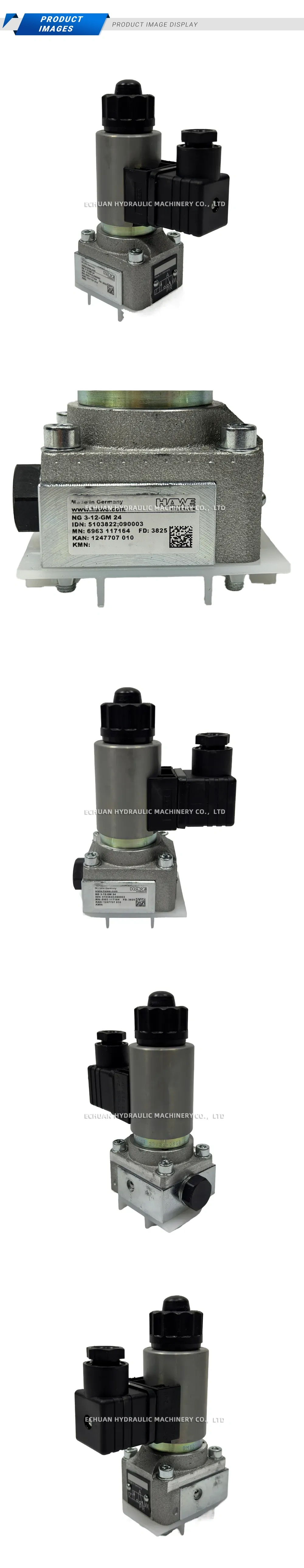

Hawe NG3-12-GM 24

The Hawe NG3-12-GM 24 is a high-performance, direct-acting directional seated valve from the G series, engineered for reliable, leak-free shut-off in hydraulic systems. This 2/2-way valve operates in a normally closed position and is actuated by a 24V DC solenoid, which also includes a convenient manual override for testing or emergency situations. Its compact NG3 (Cetop 2) subplate mounting design allows for easy integration into various circuits. Built for demanding applications, the G3-12-GM 24 excels in high-pressure environments, making it an ideal choice for industrial machinery, machine tools, and mobile hydraulics where precision control and zero leakage are paramount.

Technical Specifications:

  • Type: 2/2-way Directional Seated Valve

  • Nominal Size: NG3 (according to DIN 24340-A6 / ISO 4401-03)

  • Max. Operating Pressure: 700 bar (10,150 psi)

  • Max. Flow Rate: 12 lpm (3.17 gpm)

  • Actuation: Solenoid with manual override (GM)

  • Voltage: 24V DC

Hawe NG3-12-GM 24 Description

Hawe NG3-12-GM 24

Shop the Hawe NG3-12-GM 24, a compact 2/2-way directional seated valve. This 24V DC solenoid valve ensures reliable, leak-free performance up to 700 bar, perfect for high-pressure hydraulic applications.
